A2F28L3P4
Xeriwell or Others
| Pressure: | 400 Bar | Type: | Closed Circuit |
|---|---|---|---|
| Apply: | For Drum Drive In Mobile Concrete Mixers | Size: | 5cc ,,,,,,90cc |
| Max Pressure: | 450 Bar | Model: | A2F28L3P4 |
| Highlight: | hydraulic plunger pump,piston type hydraulic pump | ||

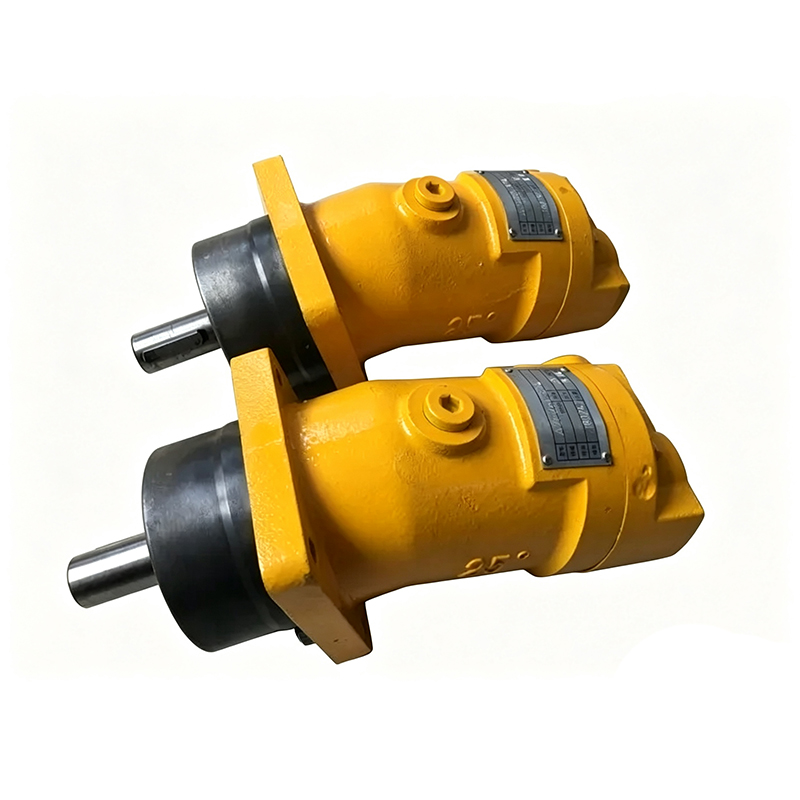

A2F28L3P4 Rexroth Hydraulic motor for Transit MixersConcrete Mixer
Xeriwell A2F28L3P4 = Rexroth A2F28L3P4
Xeriwell is professional manufacturer to produce Hydraulic Motors and Piston Pumps for Concrete Pump,Truck Concrete Mixer and other heavy industry machinery.

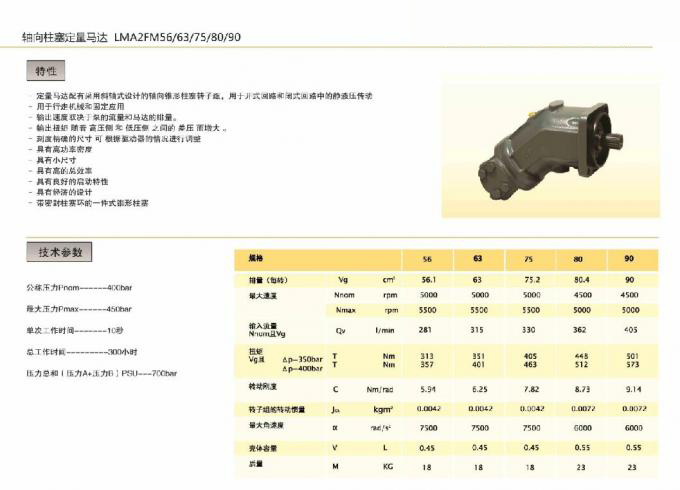

Technical parameters
Features:
-The quantitative motor is equipped with the axial tapered plunger rotor of the inclined shaft, which is used for the hydrostatic
-transmission in the open circuit and closed circuit.Used for walking machinery and stationary applications
-The output speed depends on the flow of the pump and the displacement of the motor
-The output torque increases with the differential pressure between the high and low pressure side
-The exact size of the scale can be adjusted according to the actuator
-High power density
-Small size
-High total efficiency
-Good startup characteristics
-Economic design
-A conical plunger with seal plunger ring
Now our we have 4 main business:
1, hydraulic motor and hydraulic steering unit
2, hydraulic piston pump
3, hydraulic gear pump
4, monoblock directional control valve
