| Quantity: | |
|---|---|
BMK6
Xeriwell or Others
| Type: | Hydraulic Disc Geroler | Model No.: | BMK6-630 |
|---|---|---|---|
| Max.torque(N.m): | Cont.1480N.m/int.1890N.m | Max.speed(rpm): | Cont.240rpm/int.360rpm |
| Max Pressure Drop: | Cont.17.5Mpa/int.22.5Mpa | Max Flow: | Cont.150l/min/int.225l/min |
| Highlight: | 6k char lynn hydraulic motor,112-1359-006 char lynn hydraulic motor,disc eaton hydraulic motor | ||

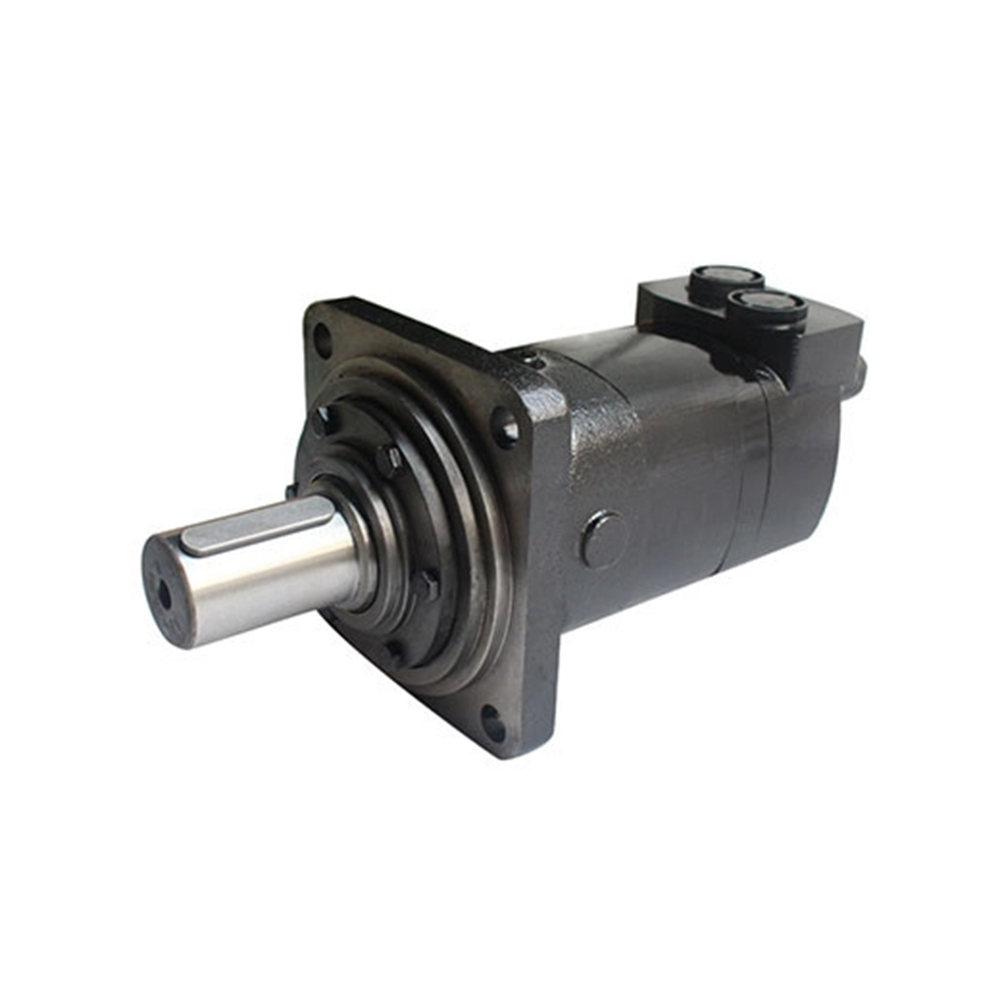

Model number: BMK6-630
Replace Char-lynn motor 6000 Series
Displacement: 38.0
Flange: 4x13.5 Square flange
Pilot: 160x18.01mm
Mounting distance: 200mm
Shaft: 50mm straight shaft
Port:G1
Drain G1/4
Paint: Black
| Type | BMK6 200 | BMK6 250 | BMK6 315 | BMK6 400 | BMK6 500 | BMK6 630 | BMK6 800 | BMK6 1000 | ||
| Geometric displacement (cm3 /rev.) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | ||
| Main speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 | |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | ||
| Max torque N.M | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 | |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 | |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | ||
Xeriwell can supply you more BMK6 motors, this type can 100% replace Eaton Charlynn 6000series motor
with fast delivery time
More Eaton code available
112-1001-006
112-1005-006
112-1006-006
112-1007-006
112-1011-006
112-1012-006
112-1013-006
112-1017-006
112-1018-006
112-1019-006
112-1020-006
112-1021-006
112-1022-006
112-1023-006
112-1024-006
112-1025-006
112-1026-006
112-1052-006
112-1053-006
112-1054-006
112-1055-006
112-1056-006
112-1057-006
112-1058-006
112-1059-006
112-1060-006
112-1061-006
112-1062-006
112-1063-006
112-1064-006
112-1065-006
112-1066-006
112-1067-006
112-1068-006
112-1069-006
112-1076-006
112-1080-006
112-1088-006
112-1089-006
112-1090-006
112-1091-006
112-1092-006
112-1093-006
112-1094-006
112-1095-006
112-1096-006
112-1097-006
112-1098-006
112-1099-006
112-1104-006
112-1107-006
112-1108-006
112-1109-006
112-1111-006
112-1115-006
112-1116-006
112-1128-006
112-1131-006
112-1138-006
112-1145-006
112-1150-006
112-1158-006
112-1161-006
112-1162-006
112-1163-006
112-1164-006
112-1166-006
112-1180-006
112-1182-006
112-1193-006
112-1206-006
112-1207-006
112-1209-006
112-1213-006
112-1214-006
112-1215-006
112-1216-006
112-1217-006
112-1218-006
112-1219-006
112-1220-006
112-1227-006
112-1229-006
112-1230-006
112-1247-006
112-1253-006
112-1254-006
112-1264-006
112-1287-006
112-1290-006
112-1305-006
112-1307-006
112-1309-006
112-1320-006
112-1324-006
112-1334-006
112-1336-006
112-1345-006
112-1350-006
112-1359-006
112-1360-006
