| Item: | Orbit Motor | Type: | High Pressure, Without Drain |
|---|---|---|---|
| Direction: | Unti-clockwise | Speed: | 100/120RPM |
| Torque: | 1050/1180/1370NM | Mounting: | 4 Bolt, 6 Bolt |
| Port: | Universal | Shaft: | Long 1 1/4'' Keyed 14T |
| Highlight: | 625cc Orbit Hydraulic Motor,6 bolt Orbit Hydraulic Motor,14t Orbit Hydraulic Motor | ||

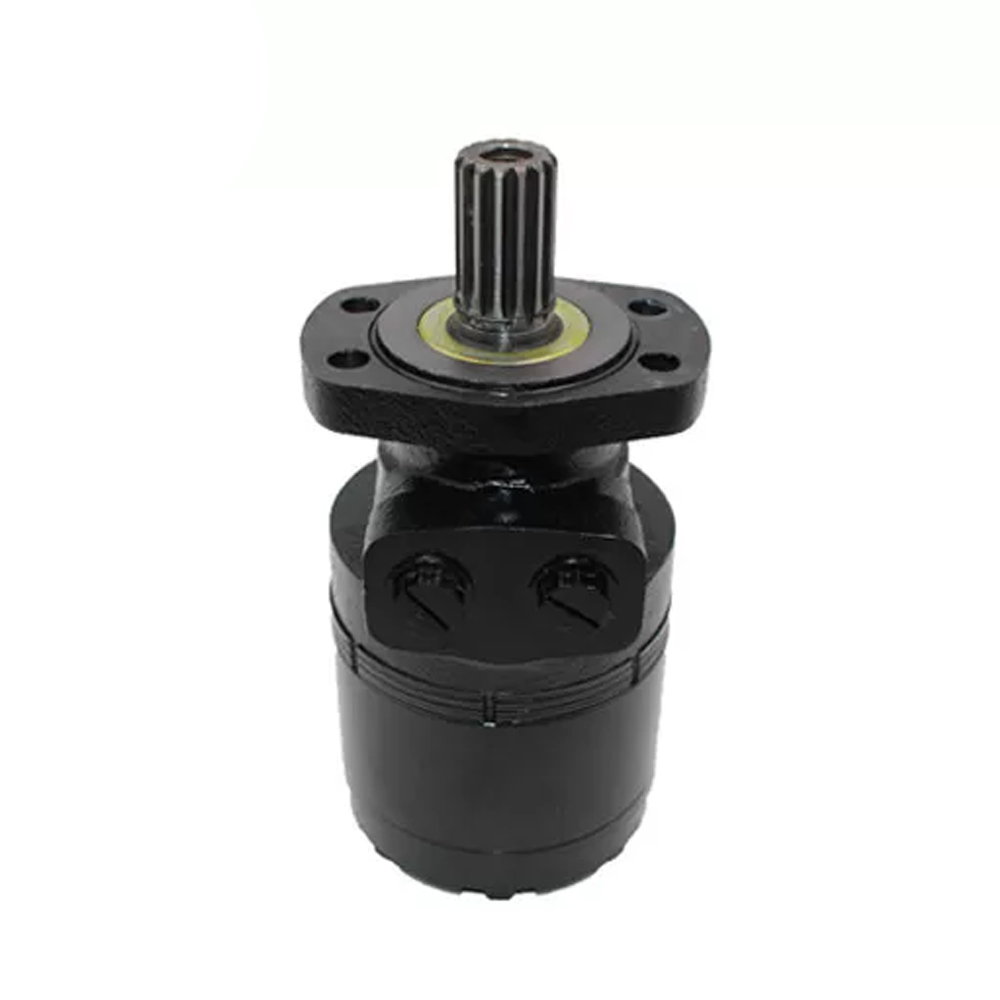

625 cc 6 bolt 14T Hydraulic Orbit Motor, Parker TG0625EN440XXXX Alternative
Xeriwell BMER series is an alternative to Parker TG series
This motor with same mounting and performance as Parker TG0625EN440XXXX
No matter what TG series motor model you need, what size, what installation method, I can provide
And has a price performance leading position
Specifications
Series: BMER/TG
Shaft: 1 1/4" Splined
Rotation: Unti-clockwise
Displacement (cm3/rev): 0625
Mounting: Standard (Wheel available)
Geometric Displacement: 623 cm3/rev (38.0 in3/rev)
Max. Differential Pressure (continuous / intermittent): 121 bar (1750 PSID) / 155 bar (2250 PSID)
Maximum Supply Pressure: 300 bar (4350 PSIG)
Maximum Torque - Continuous / Intermittent: 986 Nm (8727 lb-in) / 1291 Nm (11424 lb-in)
Maximum Performance: 20 KW (27 HP)
Minimum Starting Torque - Continuous / Intermittent: 895 Nm (7924 lb-in) / 1165 Nm (10312 lb-in)
Porting Code: N
Shaft Code: 44
Rotation Code: 0
BMER is a Medium Duty Motor same as Parker TG Series
With increased power and durability, the BMER ( TG Series ) low speed high torque (LSHT) hydraulic motor is available in 4 bolt, 6 bolt flange or wheel mounts. Torques to 12,600 lb-in and displacements to 58.5 cu in. Shaft sizes to 1.375-inch nominal.
Main Specificaion
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
