| Quantity: | |
|---|---|
BMK6-630-J6-A-D
Xeriwell or Others
| Features: | Compatible With Eaton 6,000 Series | Type: | Gerotor Hydraulic Motor |
|---|---|---|---|
| Manufacturer: | Xeriwell | Model: | BMK6-630-J6-A-D |
| Displacement: | 630 Ml/r | Rotation: | Right And Left |
| Highlight: | 6000 series replacement eaton gerotor motor,square flange eaton gerotor motor,shaft 50mm gerotor hydraulic motor | ||

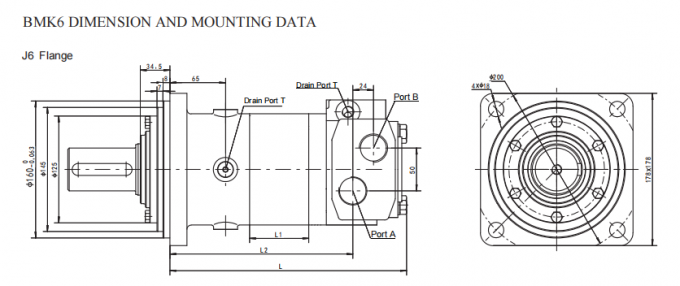

Eaton Motors, 6000 series replacement, 4 bolt square flange, pilot 160mm , shaft 50mm
This is a Eaton 6000 series aftermarket motor. it's not made by Eaton, it's made by Xeriwell from China, which is our specialty.
Quick review : BMK6-630-J6-A-D

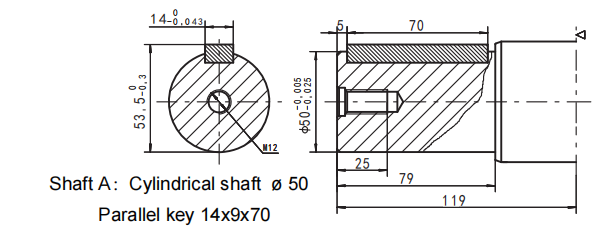

Output Shaft : Cylindrical Shaft Ø50,Parallel key 14×9×70
Port : G 1 Manifold
Rotation Direction : Left and Right
Spec:
| Type | BMK6 | |
| 630 | ||
| Geometric displacement (cm3 /rev.) | 623 | |
| Max. speed (rpm) | cont. | 240 |
| int. | 360 | |
| Max. torque (N•m) | cont. | 1480 |
| int. | 1890 | |
| Max. pressure drop (MPa) | cont. | 17.5 |
| int. | 22.5 | |
| peak | 24 | |
| Max. flow (L/min) | int. | 150 |
| cont. | 225 | |
| Weight kgs | 29.6 | |
If you are looking for a Eaton Chay-lynn similar or identical motor, contact us immediately, send your request and we will work for you.
