505375A3102AAAEG
Xeriwell or Others
| Features: | Replace Danfoss | Type: | Low Speed High Torque Motors |
|---|---|---|---|
| Model Number: | 505375A3102AAAEG | Displacement: | 375 Ml/r (variety Size Available) |

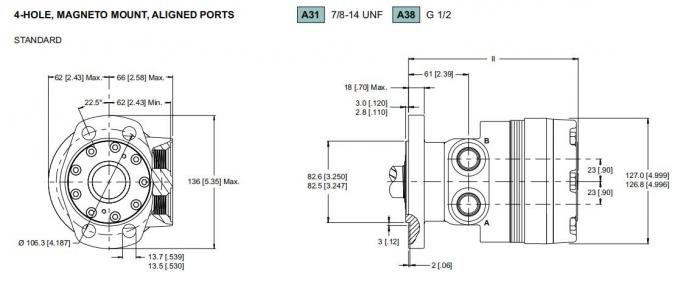

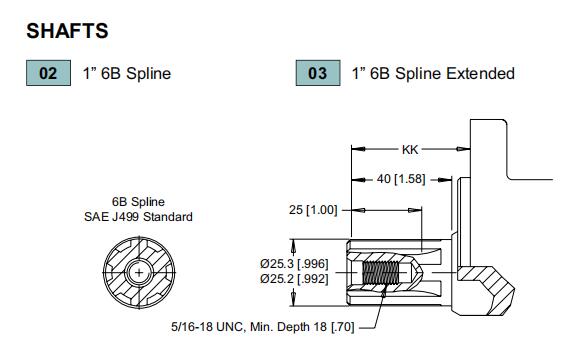

| Flange: | 4-13.5 Magneto Mount | Shaft: | SAE 6B |
| Highlight: | SAE 6B high torque low rpm hydraulic motor,375 Ml/R High Torque Low Rpm Hydraulic Motor,505375A3102AAAEG | ||

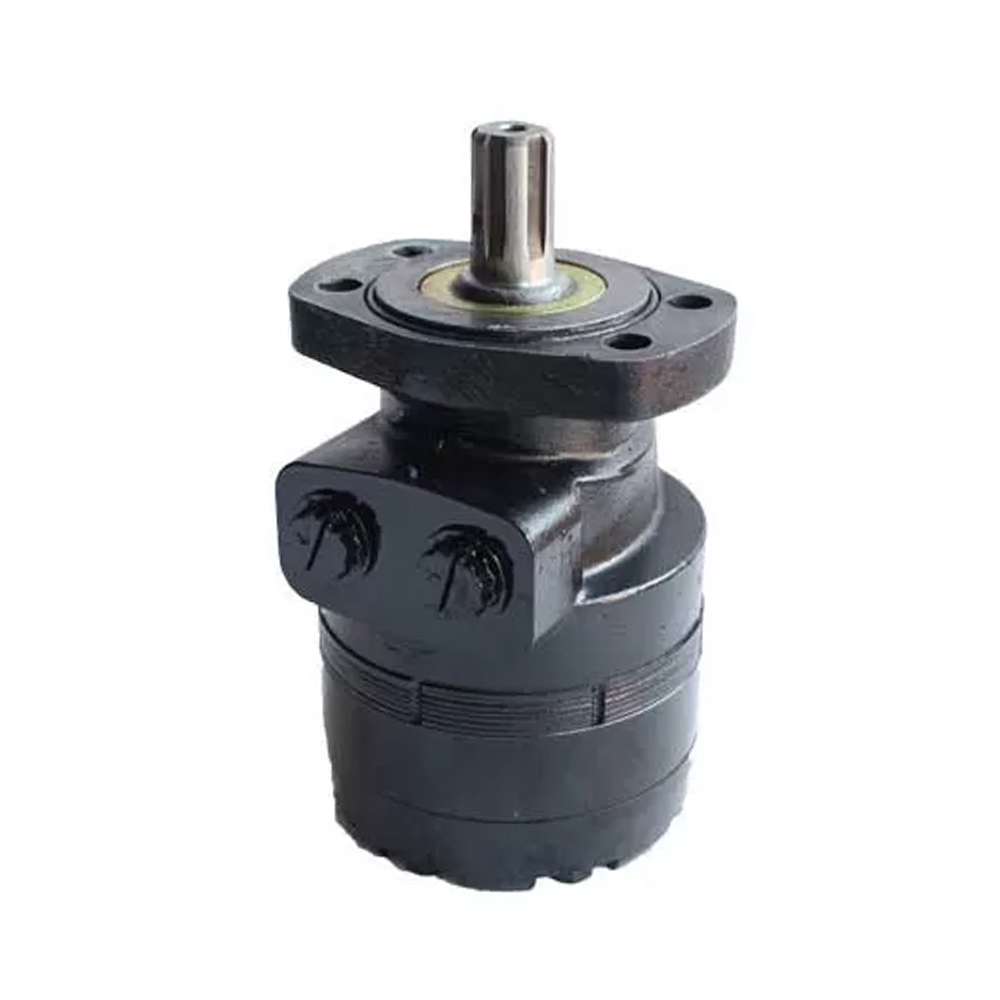

505375A3102AAAEG replacement low speed high torque motors 375 ml/r with SAE 6B shaft
This motor is a replacement one to Danfoss 505375A3102AAAEG
More Danfoss replacement motors available as below
748 cm3/rev [45.6 in3/rev]
This Series motors offer the perfect compromise between price and performance by producing work horse power at a reasonable cost. Although these motors perform well in a wide range of applications, they are especially suited for low flow, high pressure applications. During startup, pressure causes the balance plate to flex toward the rotor, vastly improving volumetric efficiency. As the motor reaches operating pressure, the balance plate relaxes, allowing the rotor to turn freely which translates into higher mechanical efficiencies. Transmitting this power to the output shaft is the most durable drive link in its class. Four bearing options, combined with standard mounting flanges and output shafts, allow the motor to be configured to suit nearly any application.
Xeriwell, your expert on hydraulic motors, contact us for pricing and availability
