505260A3123AAAAA Drive RE Series Interchange White Hydraulic Motor

Pictures are for display only, please contact us to choose the right product for you.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • 505260A3123AAAAA

  • Xeriwell or Others

Item: Orbit Hydraulic Motor OEM #: 505260A3123AAAAA
Manufacturer: Xeriwell Displacement: 260ml/r
Mounting Flange: 4-hole Wheel Flange Shaft Type: Spline
Highlight:

505260a3123aaaaa white hydraulic motor

,

re white hydraulic motor

,

260ml/r white hydraulic motor


505260A3123AAAAA White Drive RE Series Interchange Hydraulic Motor

This is a White RE Series Interchange Hydraulic Motor, not made by White.

Quick review:

Code Number: 505260A3123AAAAA
Rotation Standard Rotation
Displacement
261 cm3/rev
[15.9 in3/rev]

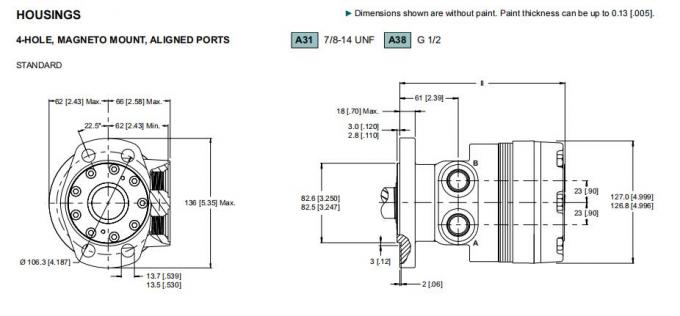

Mount & Port 4-Hole, Magneto Mount, Aligned Ports, 7/8-14 UNF

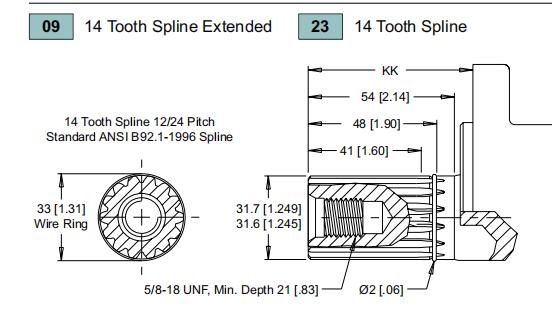

Shaft 14 Tooth Spline
Paint Black

Equivalent to White Drive Products 505260A3123AAAAA hydraulic motor. Low speed, high torque. 15.68 cubic inch displacement. 6 bolt magneto flange mount. 1-1/4" 14 soline shaft. 7/8"-14 SAE ports. 290 RPM maximum speed. 6195 inch lbs. of torque. 19.81 GPM maximum flow rate. 2973 PSI maximum pressure differential. Counter-clockwise rotation.

This motors offer the perfect compromise between price and performance by producing power at a reasonable cost. Although these motors perform well in a wide range of applications they are especially suited for low flow high pressure applications. During startup pressure causes the balance plate to flex toward the rotor vastly improving volumetric efficiency. As the motor reaches operating pressure the balance plate relaxes allowing the rotor to turn freely which translates into higher mechanical efficiencies. Torque is transmitted to the output shaft through the most durable drive link in its class.
