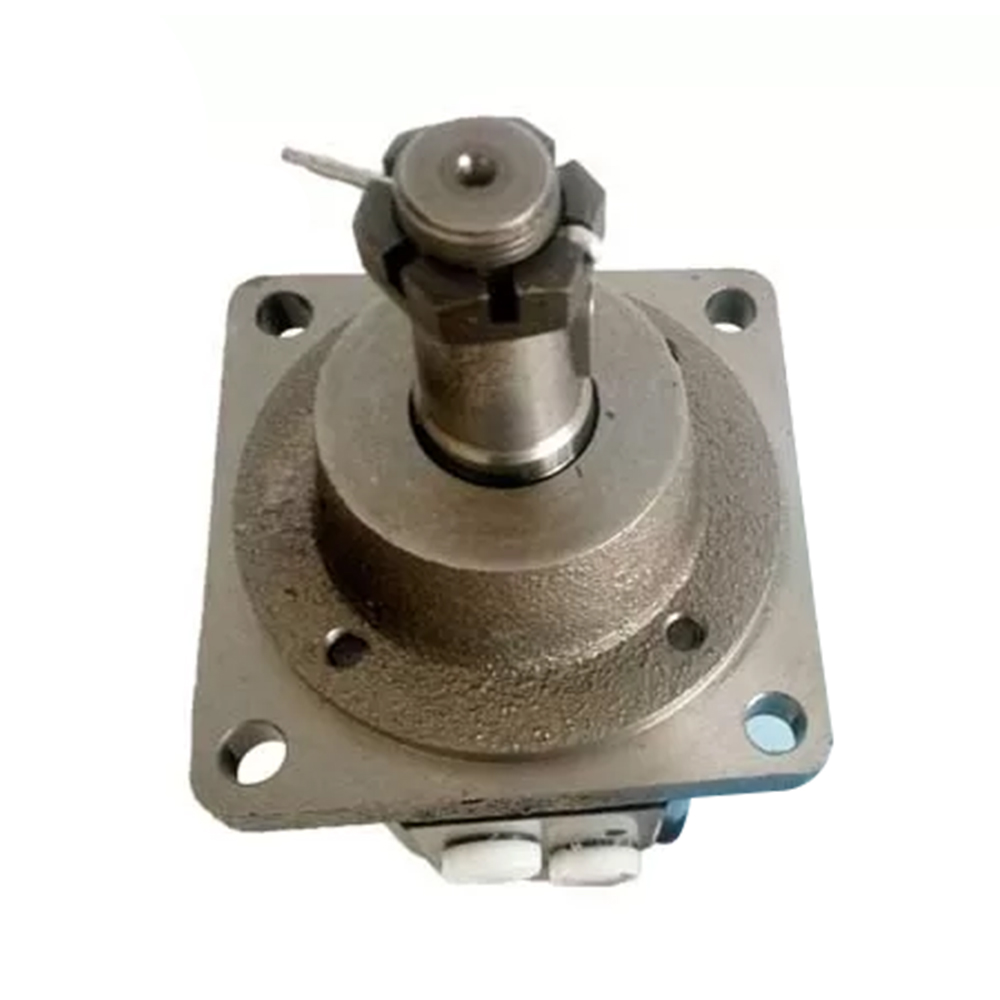

BMSW Drive Motor
Xeriwell or Others
| Features: | High Pressure Oil Seal | Product Name: | Hydraulic Drive Motor BMSW |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMSW315 |
| Displacement: | 80cc - 500cc | Application: | Mining, Forestry, Orchard Equipment |
| Highlight: | heavy duty hydraulic motor,hydraulic lift motor | ||
Hydraulic Drive Motor OMSW315 BMSW160 BMSW250 BMSW315 BMSW400
► Characteristic Features
1. Wheel Motor BMSW Same Than OMSW and M+S MSW Series.
2. Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
3. The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The can offers capacities of high pressure and high torque in the wide of applications.
4. Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life , provide smooth and reliable operation.
5. The new series motor is suitable for vehicles with greater loads and pressure drop.
► Specification
| Type | BMSW 80 | BMSW 100 | BMSW 125 | BMSW 165 | BMSW 200 | BMSW 250 | BMSW 315 | BMSW 400 | |
| Displacement.(ml/r) | 80.5 | 100.5 | 126.3 | 160.8 | 200.9 | 252.6 | 321.5 | 401.9 | |
| Max.Pressure. Drop (Mpa) | cont. | 17.5 | 17.5 | 17.5 | 16 | 16 | 12.5 | 12.5 | 10 |
| int. | 20 | 20 | 20 | 20 | 20 | 16 | 16 | 14 | |
| peak. | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 20 | 17.5 | |
| Max.torque (Nm) | cont. | 194 | 242 | 303 | 358 | 438 | 440 | 551 | 560 |
| int. | 218 | 283 | 345 | 429 | 540 | 580 | 625 | 687 | |
| peak. | 271 | 318 | 373 | 459 | 576 | 700 | 831 | 865 | |
| Speed. Range (cont.)(r/min) | 10-810 | 10-750 | 9-600 | 7-470 | 6-375 | 6-300 | 5-240 | 5-180 | |
| Max.Flow (cont.)(L/min) | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Max.Output.Power (cont.)(KW) | 14 | 16 | 16 | 14 | 14 | 11 | 10 | 8 | |
| Weight (kg) | 9.8 | 10.0 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 13.1 | |
Description: Low speed and high torque orbital hydraulic motor.
Shaft: Cylindrical with a diameter of 32 mm.
Flange: Square with fixing by 4 holes, centering diameter 125 mm and diameter 160 mm between centers of drills.
Width of the tablet (Geroller): 54.8 mm.
Displacement: 314,9 cc / rev.
Side connections: Threaded 1/2 "GAS.
Drainage: 1/4 "GAS.
Maximum speed: 240 rpm (intermittent: 285 rpm).
Maximum torque: 825 Nm (intermittent: 1000 Nm).
Maximum output power: 15 kW (intermittent: 17 kW).
Maximum pressure drop in the motor: 200 bar (intermittent: 240 bar, peak: 260 bar).
Maximum oil flow: 75 liters / minute (intermittent: 90 liters / minute).
Maximum starting pressure with the axis without load: 8 bar.
Minimum starting torque at maximum working pressure in continuous: 710 Nm.
Minimum starting torque at maximum intermittent pressure: 850 Nm.
Intermittent work value is allowed a maximum of 10% per minute.
Peak work value is allowed a maximum of 1% per minute.
