101S-5T-500-F
Xeriwell or Others
| Product: | Hydraulic Power Steering Orbitrol | Brand: | Xeriwell |
|---|---|---|---|
| Displacement: | 500cc ( Variety Cc Can Be Provided) | Founction: | LS (Load Sensing) |
| Valves: | With Load Sensing Valve | Replace: | OSPB |

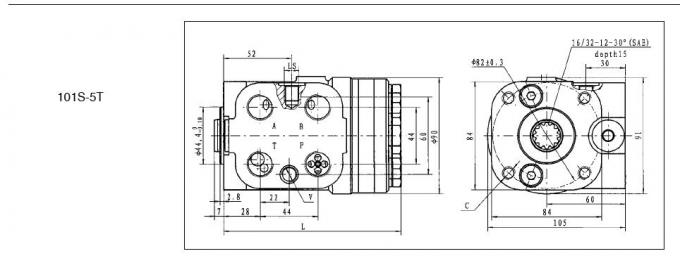

| Ports P,T,A,B: | 3/4-16 UNF O-ring | Port LS: | 7/16-20 UNF O-ring |
| Mounting C: | 3/8-16 UNC | Mounting V: | 3/8-24 UNF |
| Highlight: | power steering valve,power steering control unit | ||

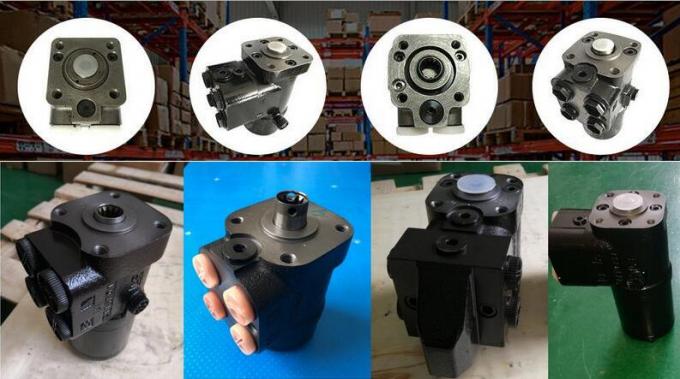

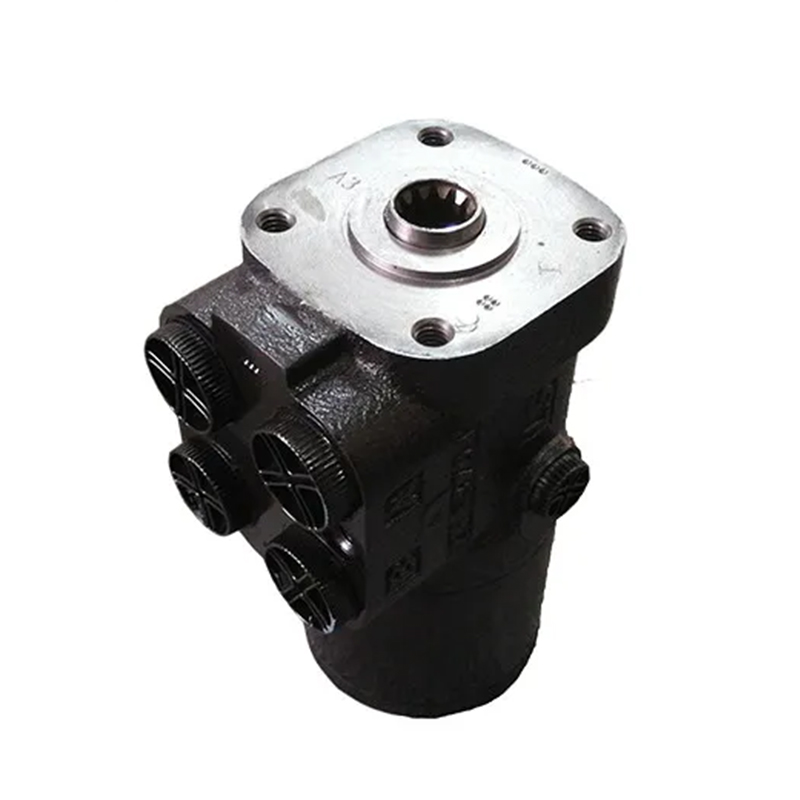

Hydraulic Power Steering Orbitrol OSPB LS 5 Lines Ports
This is special type we produce to replace OEM part.
We provide steering orbitrol for Off-road mobile vehicles, like , , Konmatsu, Doosan, , , Ford, etc.
This steering is an OEM replacement parts for.
| 1, | 101S-5T-500-F |
| 2, | replace OSPB 500 LS |
| 3, | function load sensing |
| 4, | displacement 500cc |
| 5, | Ports P,T,A,B: 3/4-16 UNF O-ring |
| 6, | Port LS: 7/16-20 UNF O-ring |
| 7, | Mounting C: 3/8-16 UNC |
| 8, | Mounting V: 3/8-24 UNF |
| 9, | Packing: 34×33×15cm/ 3 pcs |
We also make analogue steering orbitrol of M+S, , Eaton, , , Massey Ferguson, Claas, , ...
| Xeriwell | OEM | |
| 101s 100 CN | AL41291 AL55308 OSPC-160CN HKUS160/7/3 | 1550 (50 Series), 1640 (40 Series), 1750 (50 Series), 1850 (50 Series) 1950 (50 Series), 2040 (40 Series), 2140 (40 Series), 2250 (50 Series), 2450 (50 Series), 2650 (50 Series), 2850 (50 Series), 3040 (40 Series), 3050 (50 Series), 3140 (40 Series), 3150 (50 Series), 3340 (40 Series), 3350 (50 Series) |
| Xeriwell | Massey Ferguson OEM | Massey Ferguson |
| 101s 125 ON | K207419 4WD 125cc-3/4” HKUS125/ON | 240 (200 Series), 253 (200 Series) 261 (200 Series), 265 (200 Series) 275 (200 Series), 290 (200 Series) 298 (200 Series), 340 (300 Series) 342 (300 Series), 350 (300 Series) 352 (300 Series), 355 (300 Series) 360 (300 Series), 362 (300 Series) 365 (300 Series), 372 (300 Series) |
| Xeriwell | Fiat OEM | Fiat |
| 101s 100 ON | (5140383) / 5143319/ 2WD HKUS100/ON OSPC100/ON | 100-90 (90 Series), 110-90 (90 Series) 115-90 (90 Series), 130-90 (90 Series) 140-90 (90 Series), 160-90 (90 Series) 180-90 (90 Series), 55-90 (90 Series) 60-90 (90 Series), 70-90 (90 Series) 80-90 (90 Series), 85-90 (90 Series) |

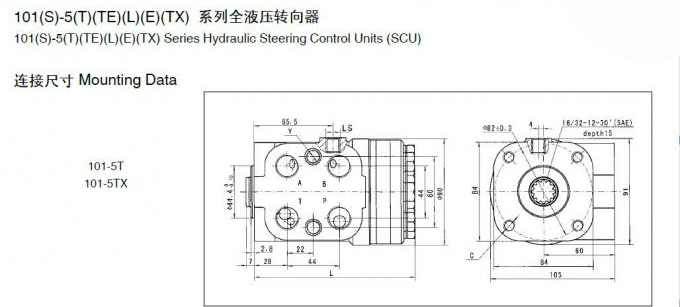

Technical data sheet:
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
101S series orbital steering valve is with relief valve ,suction valve, inlet check valve intergrated,and different valve can be assembled freely, compact, more convenient, fitting for European and American standards. Widely applied to low speed and heavy vehicles , construction machinery, tractor, forklift, digger, loader, helm control.
