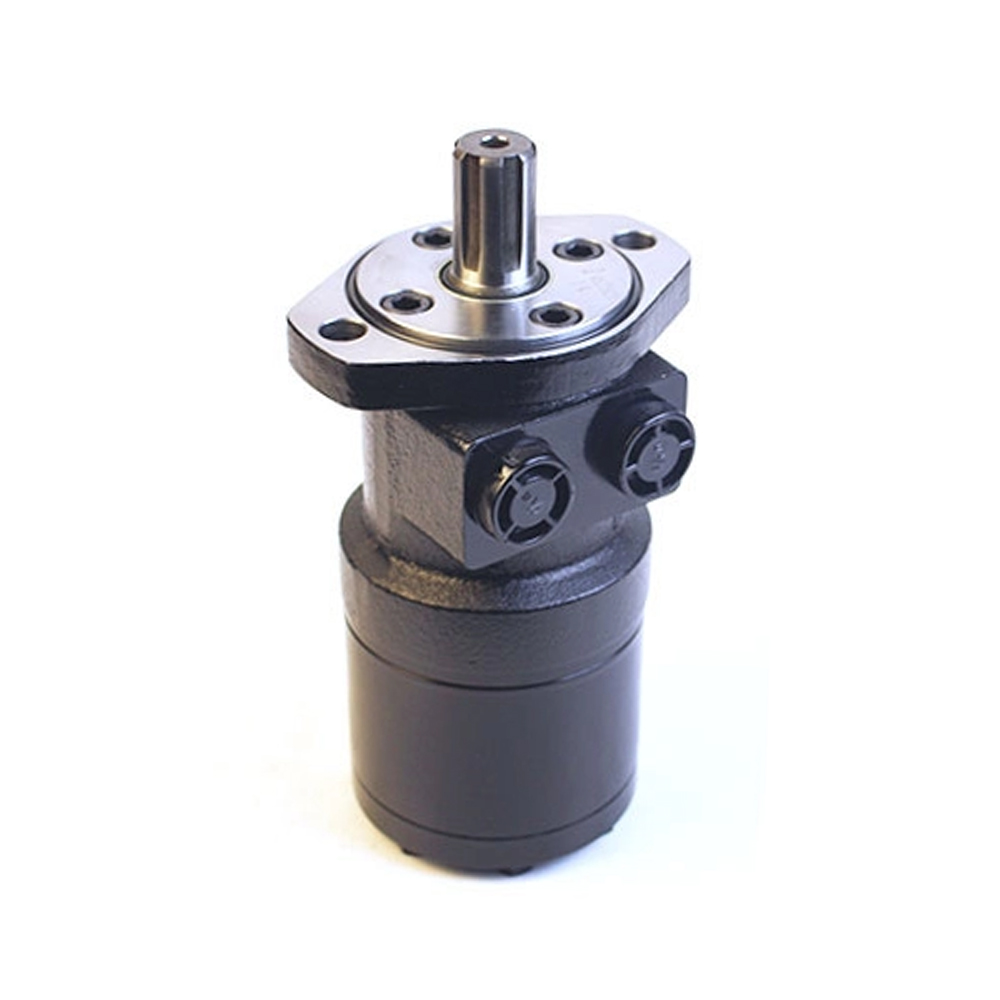

BMRS Hydraulic motor
Xeriwell or Others
| Product Name: | Hydraulic Gerotor Motors | Displacement: | 315CC |
|---|---|---|---|
| Applications: | Agricultural Machine, Lifting Equipment | Replacement: | Xeriwell BMRS = DS, Eaton S,T Series , M+S MR Etc |
| Oil Temperature: | Normal-35℃-80℃ | Shaft: | Cylindrical Shaft φ25.4mm,key Shaft |
| Highlight: | 315CC Low Speed High Torque Motors,315CC Char Lynn S Series Motor,Spline Shaft Char Lynn S Series Motor | ||
Low Speed High Torque Motors BMRS Motors Charlynn S Series motor, SPLINED SHAFT, NPT PORTS
Features:
Shaft: 1" Spline teeth, SAE 6B
Flange: SAE "A" 2-Bolt Mount
Ports: 1/2" NPTF
Drain: 7/16 - 20 UNF
Corrosion-resistant Black Paint
Technical Specifications for BMRS-315 H2-S-P:
Displacement: 19.37 in⊃3;/rev (317.5 cm³/rev)
Max Speed: 190 rpm (cont) / 240 rpm (int)
Max Torque: 390N.m (cont) / 535N.m (int)
Max Differential Pressure: 9mpa (cont) / 13mpa (int)
Max Flow: 60.0 l/min (cont) / 75.0l/min (int)
Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
| Type | BMRS 36 | BMRS 50 | BMRS 80 | BMRS 100 | BMRS 125 | BMRS 160 | BMRS 200 | BMRS 250 | BMRS 315 | BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
