| Quantity: | |
|---|---|
2431203160
Xeriwell or Others
| Type: | Hydraulic Drive Motor | Manufacturer: | Xeriwell |
|---|---|---|---|
| Model No.: | 4000006190 | Replace: | DANFOSS OMSS |
| Shaft: | 12 Teeth Spline Shaft | Oil Port: | 7/8-14UNF |
| Drain : | 7/16-20UNF | Application: | Platform Drive Motor |
| Highlight: | 2431203160 haulotte motor,h16tpx haulotte motor,haulotte h16tpx motor | ||

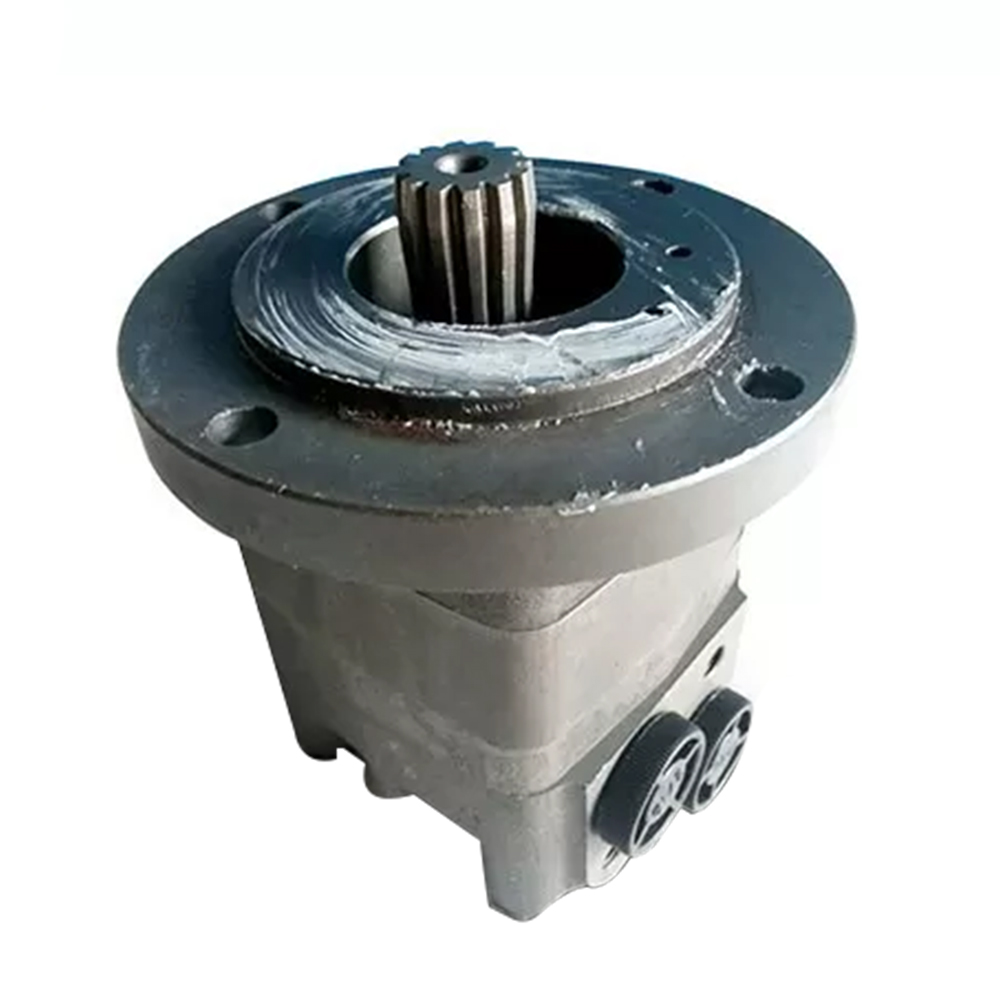

HAULOTTE 2431203160,4000006190 HYDRAULIC MOTOR for H16TPX / HB44J H16TPX / HB44J
FIT H16TPX / HB44J H16TPX / HB44J,
H18SX/H18SXL / HS5388RT/HS5388RTX,
LIFT H18SDX, H15SX/H15SXL / HS4388RT/HS4388RTXL,
H15SD/H15SDX, H12SX/H12SXL / HS3388RT/HS3388RTXL,
H12SDE, H12SD/H12SDX, HA20PX / HA61JRT, HA20P,
HA18SPX / HA51SJRT, HA16X, HA16SPX / HA46SJRT,
HA16RTJPRO / HA46RTJPRO, HA16RTJO / HA46RTJO,
HA16RTJ / HA46RTJ, HA16PX / HA46JRT, HA16DX,HA16D,
HA15X, HA15DX, HA12PX, HA12DX,HA16PE
Product details:
| Length of the hydraulic motor: 148 mm |
| Length of the pump section: 30 mm |
| Type of flange: round |
| Neck diameter: 100 mm |
| Number of mounting holes: 4 |
| Diameter of the mounting holes: 10,50 mm |
| Centre distance between farthest mounting holes: 125 mm |
| Type of shaft: splined |
| Distance collar + shaft: 24 mm |
| Shaft diameter: 27 mm |
| Number of splines: 12 |
| Number of connections: 2 |
| Thread type: 1/2 BSP |
| Pitch imperial: 14 |
| Thread type: M10 |
| Pitch metric: 1,50 mm |
The role of the hydraulic motor is very important. If you want to increase the operating speed of the hydraulic system, you first need to have a hydraulic motor that can run stably for a long time.
