| Quantity: | |
|---|---|
BMS
Xeriwell or Others
| Features: | Same As OMR/Eaton-charlynn S,T SERIES/M+S MR | Products Name: | Low Speed High Torque Hydraulic Orbital Motor |
|---|---|---|---|
| Shaft: | Splined | Displacement: | 80cc - 485cc |
| Max Torque: | 690Nm | Application: | Agriculture And Constuction Machine Etc. |
| Highlight: | high torque gear motor,high speed gear motor | ||

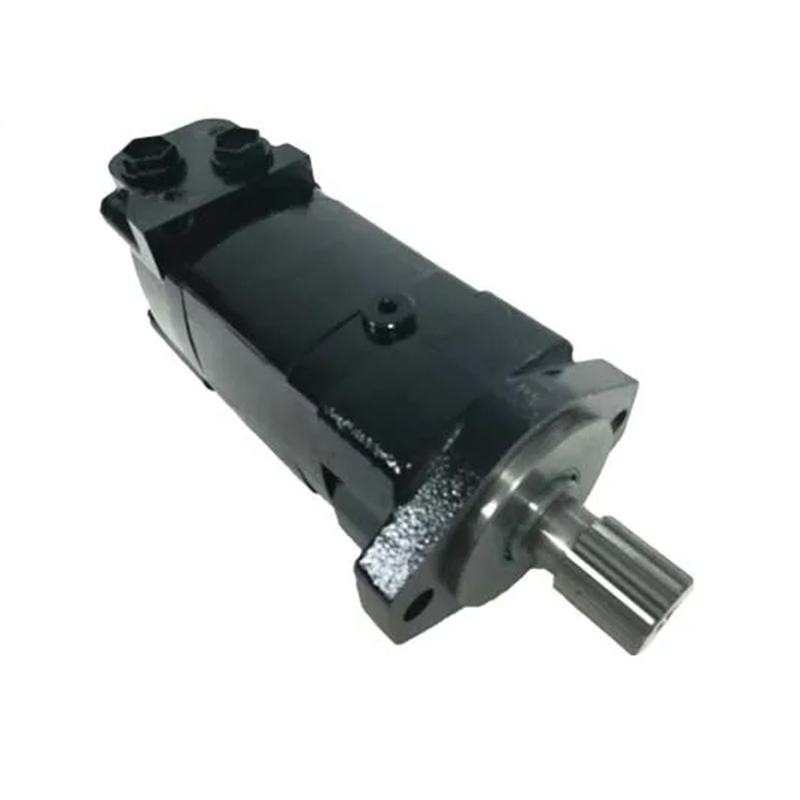

Hydraulic Gear Motor OMS BMS , 14 Teeth Shaft Splined , 2000 Series Replacements
Characteristic features:
BMR series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.
• Advanced design of spool and gerolor, which has Small size and compact structure.
• Credible design of shaft seal, which can bear high pressure and be used in parallel or in series.
• Direction of shaft rotation and speed can be controlled easily and smoothly.
• Best combination of efficiency and economy in medium duty applications.
• A variety of connection types of flange; Rabbet:, output shaft and oil port
Specifications:
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Sprinkler
Mini excavator
Driven scraper conveyor
Screw
Baler
Hydraulic Winch
Fishing boat
Plastic injection mold machine
Cleaner
Grass cutter
Winches
Conveyors
Slews
Sweeper Drives
Augers Cutters
Mowers
Chippers
Drilling machine
Municipal machinery, agriculture, forestry and construction equipment etc
