| Quantity: | |
|---|---|

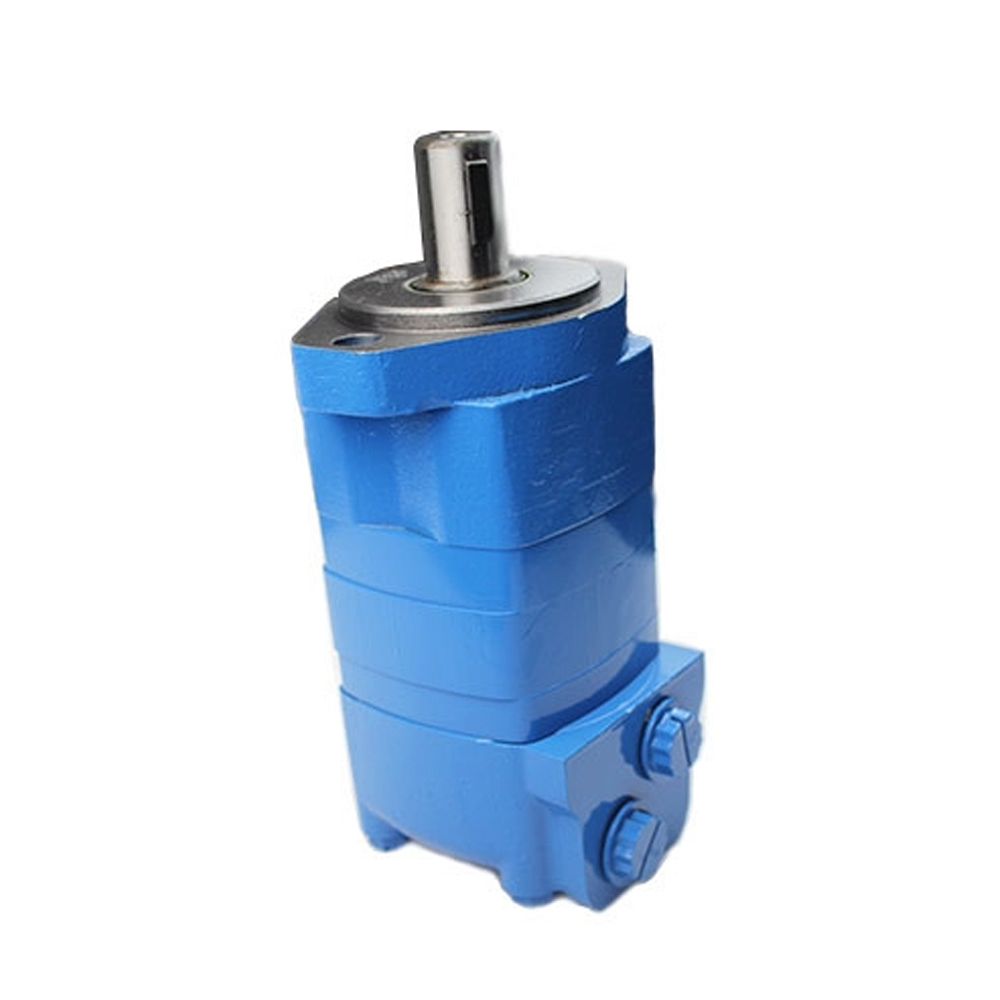

BMK2-125-E2-K-SU
Xeriwell or Others
| Type: | Orbital Motor, Hydraulic Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMK2-125-E2-K-SU | Displacement: | 125ml/r |
| Flange: | 2 Bolt SAE A | Shaft: | 25mm Key Shaft |
| Port Size: | 7/8-14UNF O-RING | Drain Line: | 7/16-20UNF |
| Highlight: | 2000 series eaton geroler motor,104-1006-003 eaton geroler motor | ||
2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports
Quick review:
| order code:BMK2-125-E2-K-SU |
| matching:Eaton 104-1006-003 |
| Output volume (cc/rev): 125cc |
| Shaft Ø (mm): 25mm,key shaft |
| max r.p.m.: 576 |
| Torque max. (Nm): 560 |
| Pressure difference (bar): 310 |
| Volume flow max. (l/min): 115 |
| Shaft seal version: Standard |
| Ports threads: 7/8-14UNF O-RING |
| Leakage oil connection: 7/16-20UNF |
Main specifiction:
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
