BMK2 MOTOR
Xeriwell or Others
| Features: | Char_lynn2000 | Application: | Harvesting Equipment,sweeper Machines |
|---|---|---|---|
| Displacement: | 100cc | Max.speed(rpm): | Cont.576rpm/int.720rpm |
| Max.torque(N.m): | Cont.385N.m/int.560N.m | Max.pressure Drop: | Cont.21Mpa/int.24Mpa |
| Oil Temperature: | Normal-35℃-80℃ | Viscosity: | 42-74mm2/s |
| Highlight: | 2000 char lynn motor,104-1038 char lynn motor,o ring motor charlyn | ||

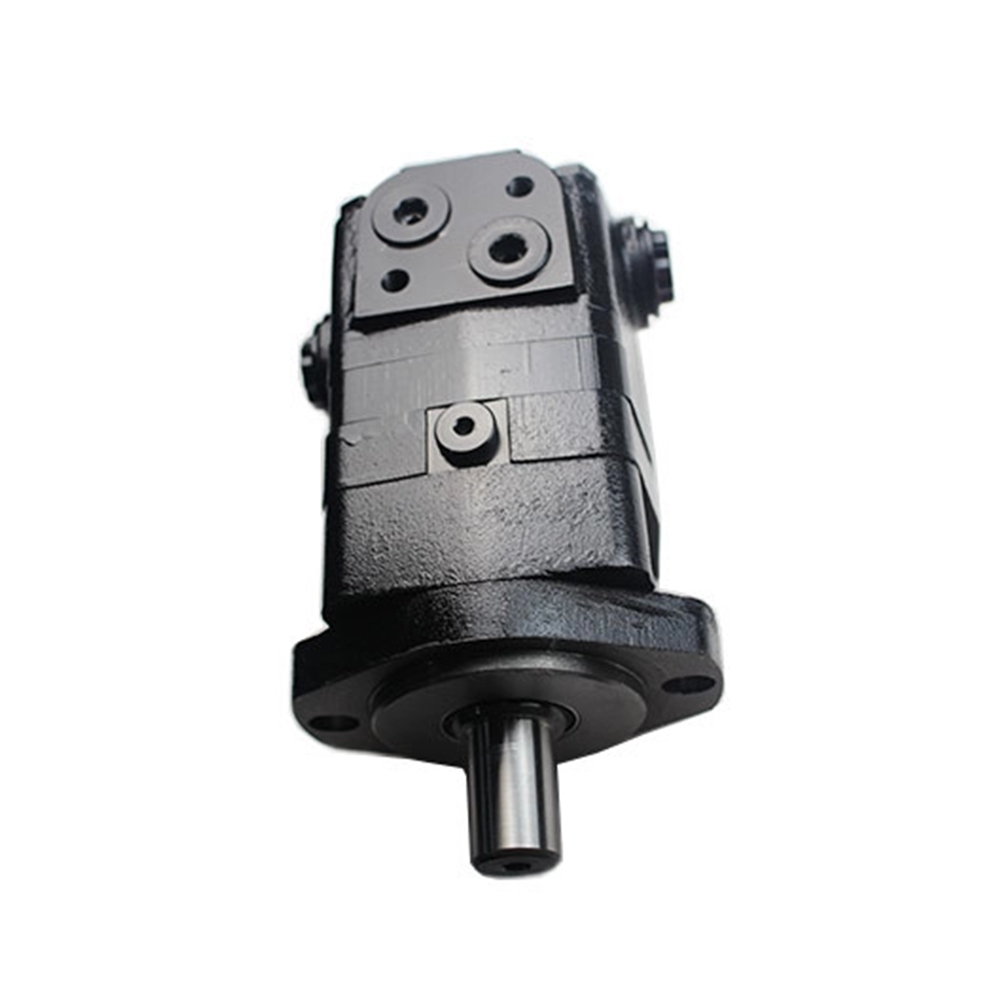

Char Lynn 2000 low speed high torque hydraulic motor 104-1038,104-1039,104-1040 1 1/16 -12 O-ring 180° Apart
| Brand | Xeriwell |
| Displacement | 100cc |
| Product Type | Simple product |
| Features | Black Paint |
| Mount | 2Bolt Standard shaft |
| Ports | 7/8-14 St.Thd. O-Ring |
| Supplier Part Number | 104-1038-006 |
| Product Weight | 24.00 lbs |
Main specification
| TYPE | BMK2 | BMK2 160CC | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 475CC | |
| Displacement(ml/r) | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
Max.Pressure.Drop(Mpa) | cont. | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak. | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max.Torque(N.m) | cont. | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Speed.Range(r/min) | cont. | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max.Flow(cont.)(L/min) | cont. | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight(kg) | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| Part Number | Displacement cm/rev (in/rev) |
| 104-1037-006 | 80 (4.9) |
| 104-1038-006 | 100 (6.2) |
| 104-1039-006 | 130 (8.0) |
| 104-1040-006 | 160 (9.6) |
| 104-1041-006 | 195 (11.9) |
| 104-1042-006 | 245 (14.9) |
| 104-1043-006 | 305 (18.7) |
| 104-1044-006 | 395 (24.0) |
| 104-1422-006 | 490 (29.8) |
| 104-4480-006 | 305(18.7) |
| 104-4481-006 | 395(24.0) |
Hydraulic company Xeriwell has now become one of the most famous hydraulic motor manufacturers in China by rapidly innovating and improving all aspects of its products and services, and has occupied a good position in the Chinese market. While improving technology, they also minimize profits, form price and quality relative advantages, and are committed to developing the most cost-effective hydraulic and other related products on the market, thereby enhancing the market competitiveness of the motor, hydraulic motors manufacturers in good faith first, quality first for the purpose, from employee entry, raw materials into the factory, from parts processing, assembly programs to products, have a relatively perfect product quality system, and passed the CE certification, is committed to establishing an internationally renowned brand, looking forward to your purchase!
