| Quantity: | |
|---|---|

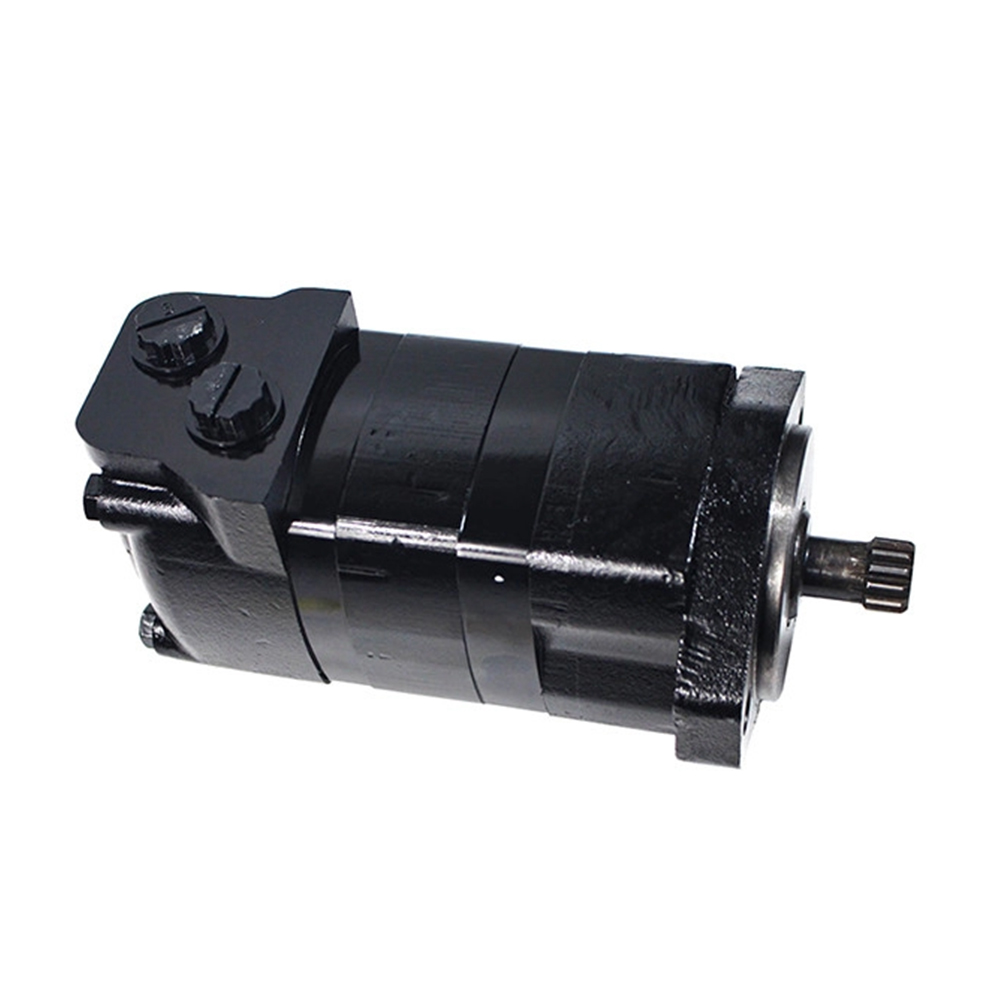

BMK2-200-E2-I-SU
Xeriwell or Others
| Type: | Hydraulic Drive Motor | Manufacturer: | Xeriwell |
|---|---|---|---|
| Model No.: | BMK2-200-E2-I-SU | Size: | 200 Ml/r |
| Replace: | Char-lynn 2000 Series | Flange: | 2-hole Flange |
| Shaft: | 22mm Spline Key | Oil Port: | 7/8-14 UNF |
| Drain : | 7/16-20 UNF | Application: | Any Place Need Hydraulic Drive |
| Highlight: | Hydraulic Drive Motor,22mm Sub Shaft Hydraulic Drive Motor,Hydraulic Drive Motor 3000 PSI | ||
2000 Series, 2 Bolt A Flange, 22mm sub-shaft, splined 13-DP16/32, 7/8-14 UNT O-RING, 3000 PSI
Quick review:
| 1, | model number | BMK2-200-E2-I-SU |
| 2, | displacement | 200 ml/r |
| 3, | flange | 2 - hole standard mounting |
| 4, | shaft | 22 mm straight shaft, splined 13-DP16/32 |
| 5, | oil port | 7/8-14 UNF |
| 6, | drain | 7/16-20 UNF |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | Char-lynn 2K |
Specifications:
| Type | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | BMK2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 475 | ||
| Geometric displacement (cm3 /rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| Max. speed (rpm) | cont. | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| int. | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | |
| Max. torque (N·m) | cont. | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| int. | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| int. | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | |
| peak | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | |
| Max. flow (L/min) | cont. | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | |
| Weight (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure :Max. value of operating motor continuously. | |||||||||||
| * Intermittent pressure :Max. value of operating motor in 6 seconds per minute. | |||||||||||
| * Peak pressure:Max. value of operating motor in 0.6 second per minute. | |||||||||||
Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners
