| Quantity: | |
|---|---|
BMER
Xeriwell or Others
| Item: | Wheel Motor | Type: | High Pressure, Without Drain |
|---|---|---|---|
| Direction: | Unti-clockwise | Speed: | 330/425RPM |
| Torque: | 530/600/750NM | Mounting: | Wheel Mounting |
| Port: | SAE O-ring | Shaft: | 1 1/4'' Tapered |
| Highlight: | 195 Cc Orbit Hydraulic Motor,425RPM Orbit Hydraulic Motor,750NM Orbit Hydraulic Motor | ||

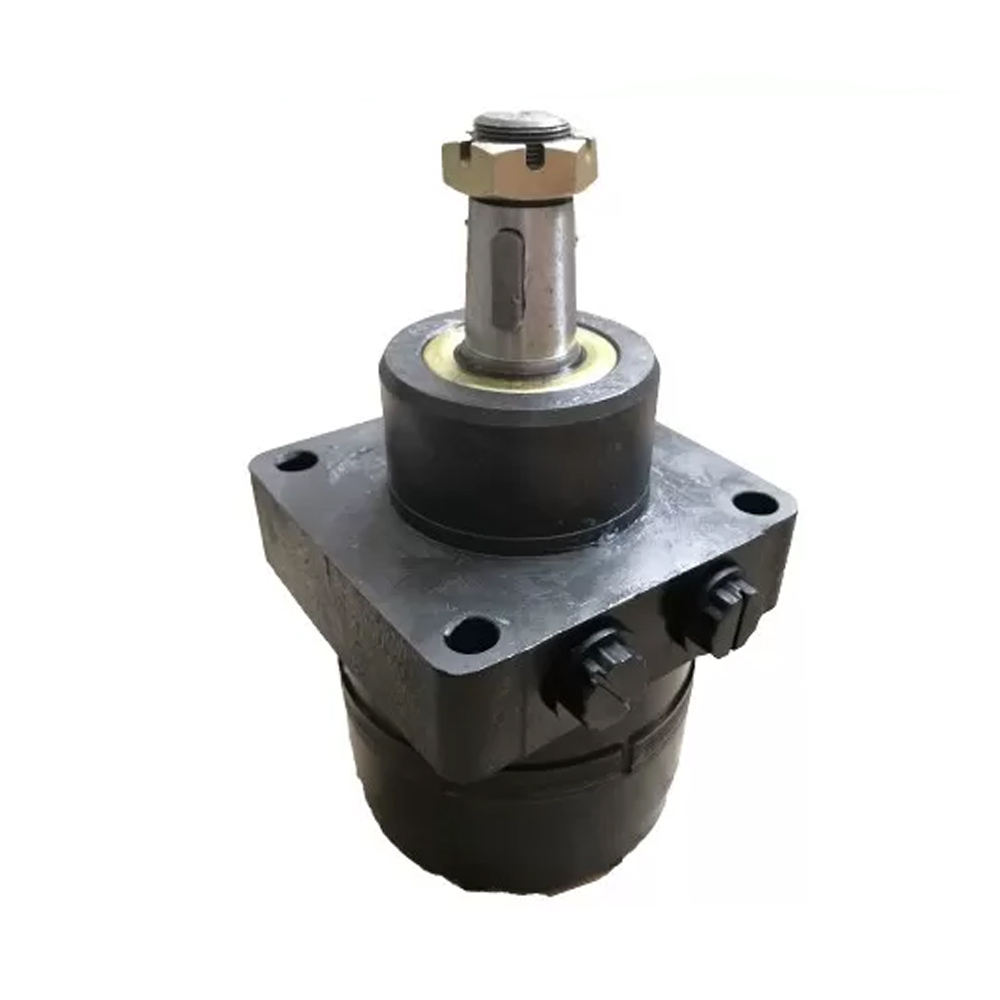

195 cc wheel mounting 1 1/4'' tappered Hydraulic Orbit Motor, Parker TF0195LS080XXXX Alternative
Xeriwell BMER series is an alternative to Parker FG series
This motor with same mounting and performance as Parker TF0195LS080XXXX
No matter what TF series motor model you need, what size, what installation method, I can provide
And has a price performance leading position
Specifications
Series: BMER/TF
Rotation: Unti-clockwise
Shaft: 1 1/4" Splined
Mounting: wheel flange with frongt brake
Type: High Pressure, without drain
Speed: 330/425RPM
Torque: 530/600/750NM
Port: SAE O-ring
Shaft: 1 1/4'' Tapered
BMER is a Medium Duty Motor same as Parker TF. TG. TH Series
With increased power and durability, the BMER ( TF, TG, TH Series ) low speed high torque (LSHT) hydraulic motor is available in wheel mounts, or 4 bolt, 6 bolt flange. Torques to 12,600 lb-in and displacements to 58.5 cu in. Shaft sizes to 1.375-inch nominal.
Main Specificaion
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
