BMT250
Xeriwell or Others
| Features: | Replace OMT, MT, 6K | Type: | Hydraulic Drive Motor |
|---|---|---|---|
| Manufacturer: | Xeriwell | Model No.: | BMT250 |
| Size: | 250ml/r, | Suit For: | Construction & Mining |
| Max Speed: | 196rpm-233rpm | Max Torque: | 1318N.m-1498N.m |
| Max Output: | 25.3kw-27.5kw | Max Pressure: | 14mpa-16mpa |
| Highlight: | 17T Splined Danfoss Hydraulic Motor,151B2058 Danfoss Hydraulic Motor,OMT250 Danfoss Motor | ||

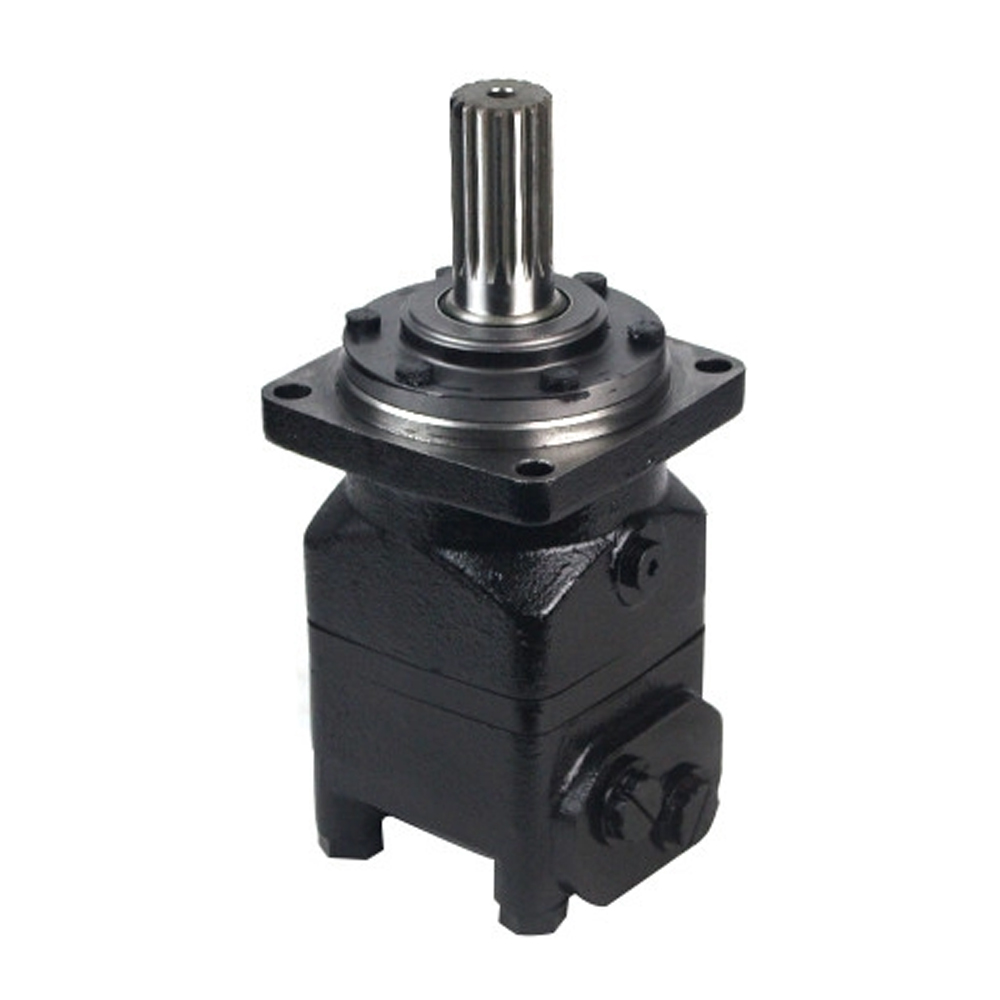

17T Splined Hydraulic Motor 151B2058 OMT250-151B2058 for Danfoss
Replace Part number: 151B2058, OMT250-151B2058, OMT250151B2058, 151B-2058
Specification:
Motorseries: O-Series
Basic Motor: OMT
Displacement: 250
Mounting Thread Dimension: None
Shaft Style: Splined-17T
Shaft Size: 1 1/2 inch ; 3/8-16 UNC tap
Shaft Key: None
Port Size: Side port
Port Dimension: 1 1/16-12 UN
Drain Port Style: Standard
Drain port Dimension: 9/16-18 UNF
Market we serve:
Turf Equipment
Aerial
Agriculture Machinery
Construction Equipment
Factory Automation
Material Handling Equipment
Oil & Gas
Forestry Equipment
Mining
Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
| MOUNTING DIMENSIONS OF OMT HYDRAULIC ORBIT MOTOR | |||
| Displacement | OMT160, OMT200, OMT230, OMT250, OMT315, OMT315, OMV400, OMV500, OMV630, OMV800. | ||
| Shaft | Cylindrical Shaft Ø40, Ø38.1, Ø31.75. Splined Shaft Ø38.1, Ø34.85. Cone Shaft Ø45 | ||
| Ports | G3/4 Manifold 4-M10, G1/4. G3/4,G1/4. M27×2 Manifold 4-M10, M14×1.5 | ||
| Flange | 4-Ø14 Square-flangeØ160, pilot Ø125×9, 4-Ø18Wheel-flange Ø200, pilot Ø160×7 | ||
| Applications | Crane, Mixer, Winches, Excavator, Conveners, Drill Rig, Concrete Truck Mixer. | ||
| Warranty | One year | ||
