| Product: | Hydraulic Geroler Motor | Displacement: | 400CC |
|---|---|---|---|
| Max.Speed(rpm): | Cont.183rpm/int.220rpm | Max.Torque(N.m): | Cont.850N.m/int.990N.m |
| Max. Pressure Drop: | Cont.15.5MPa/int.19MPa | Max.flow(L/min): | Cont.75L/min~int.90L/min |
| Highlight: | well drilling omh 400 hydraulic motor,danfoss omh 400 hydraulic motor,danfoss hydraulic motor omh 400 | ||

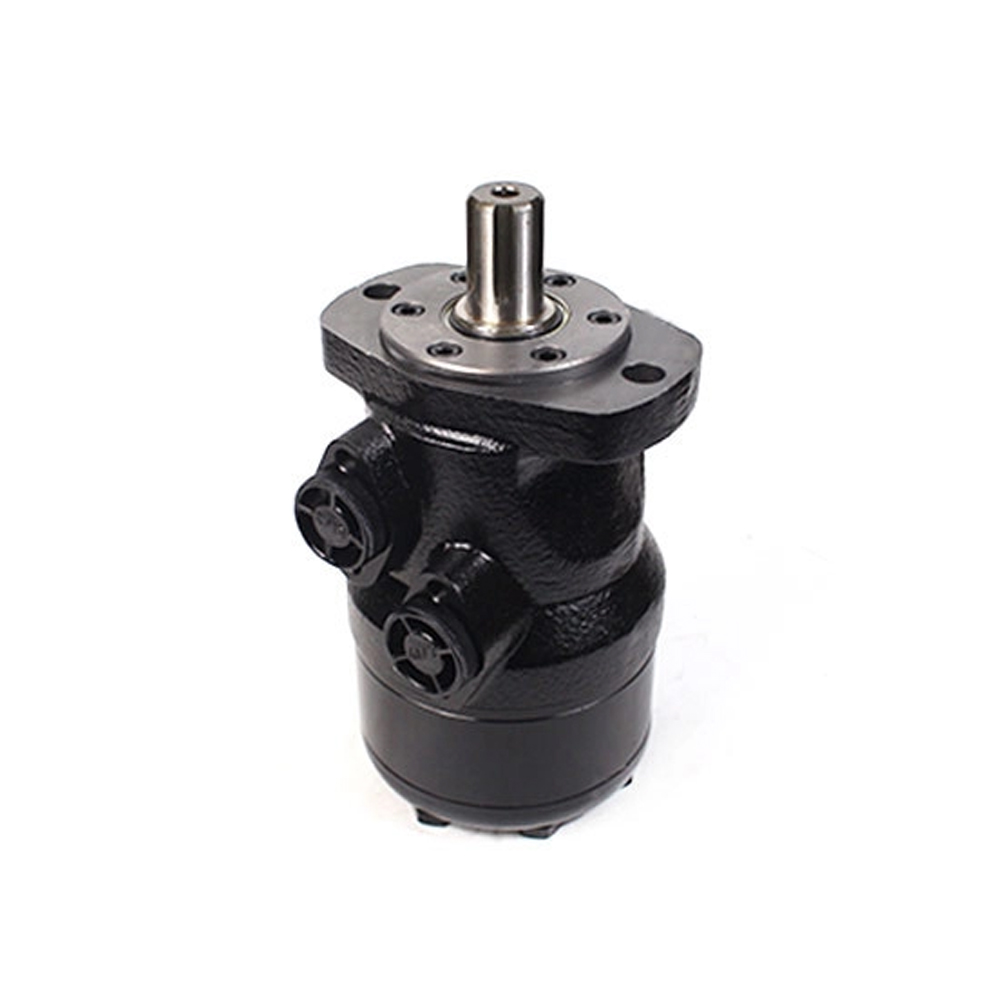

OMH 400 hydraulic motor 151H1084 danfoss hydro well drilling motor
OMH series motor is an important series of products of Xeriwell Company. This series of products has high cost performance and is widely used in the well drilling system. In line with the production concept of quality first, every OMH series motor produced by Xeriwell has super high quality and has won praise from many customers. The Omh 400 motor is an excellent representative of the OMH series.
Product details:
displacement:400cc
flange:2 bolts flange
shaft:Splined 1 in (SAE 6B)
port size:7/8-14 UNF side ports
Main Specifications:
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
