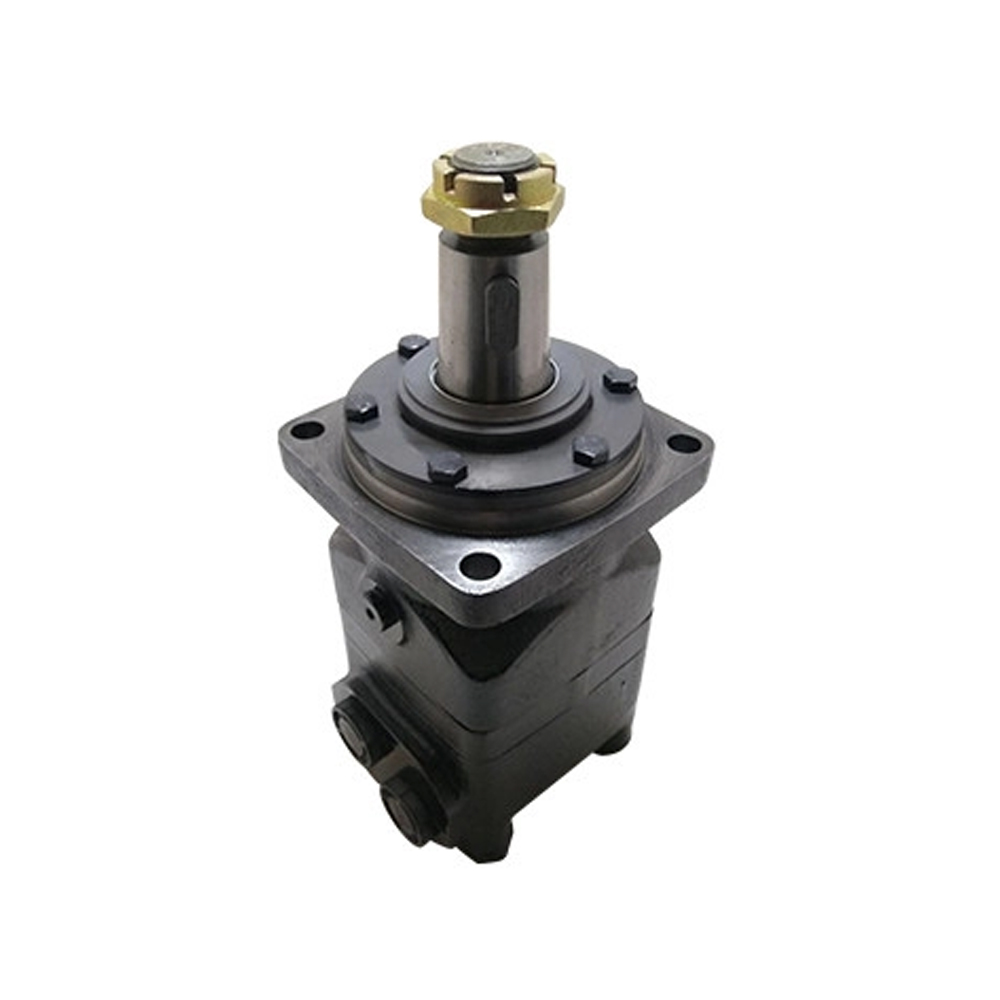

Pictures are for display only, please contact us to choose the right product for you.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • 151B3016

  • Xeriwell or Others

Type: Orbit Hydraulic Motor Brand: Xeriwell
 Modell: BMT 400 Danfoss Code: 151B3016
Shaft: 45mm Flange: Standard
Highlight:

151b3016 orbit hydraulic motor

,

400cc orbit hydraulic motor

,

151b3016 danfoss hydraulic motor


151B3016 - ORBITAL MOTOR OMT 400CC with 45mm taper shaft Side port , replacement

This is  151B3016 Danfoss replacement Orbital Motor

Shaft Style Tapered - Cone 1:10
Shaft Size 45 mm tap
Shaft Key B12 x 8 x 28 mm (DIN 6885)
Port Style Side port
Port Dimension G 3/4
Drain Port Style Standard
Drain Port Dimension G 1/4
Painted None
Geometric Displacement 410,9 [25.07]
Max Inlet Pressure Cont 210 [3050]
Max Inlet Pressure Int 250 [6330]

Hydraulic
