BMH500 / OMH500
Xeriwell or Others
| Features: | OMH500 / MH500 | Product Name: | Low RPM Hydraulic Motor BMH |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMH500 |
| Displacement: | 200cc - 750cc | Application: | Concrete Pump |
| Highlight: | orbital hydraulic motor,cycloid hydraulic motor | ||

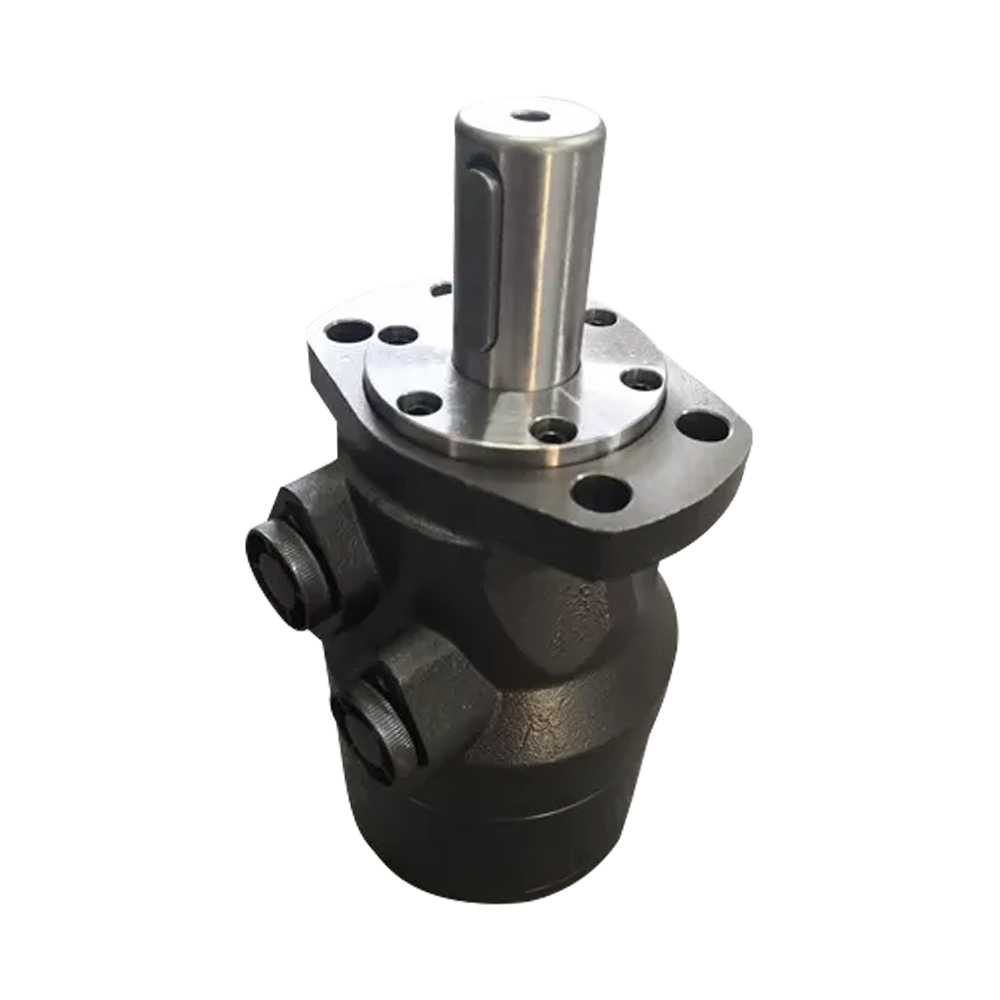

Putzmeister Concrete Pump 238130001 151H1016 OMH500 Orbital Hydraulic Motor
OMH500 151H-1016 = Xeriwell BMH500

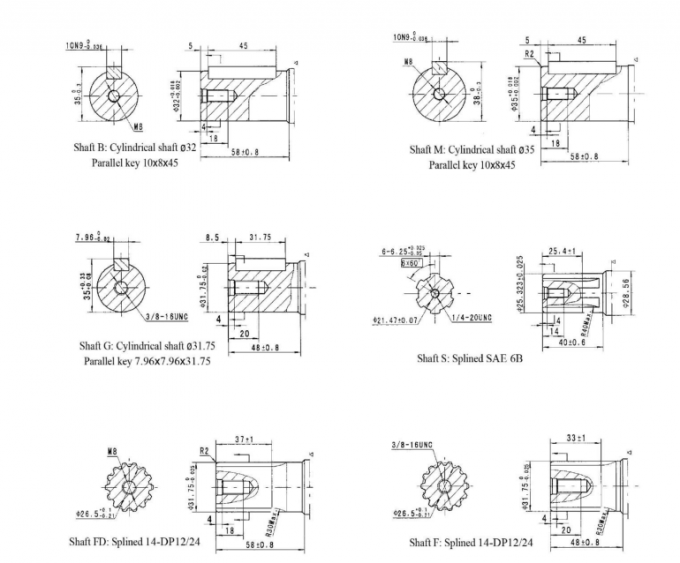

Shaft : Ø32mm
Key: 10*8*45
Displacement: 500cc
Oil Port: G1/2"
• Xeriwell Hydraulic BMH Motor have a good application on Concrete Pumps.
• Xeriwell Hydraulic BMH Motor quality mtach than OMH, M+S MH Motor.
FEATURES
• Constant operating torque over a wide speed range
• Smooth running over the entire speed range
• High starting torque
• High pressure oil seals
• Low speed, high torque motors
• Roller vane type drive system – offers high volumetric efficiency and long life
| Concrete Pump Auger Motor | |
| BMH / MH / OMH | 160cc |
| BMH / MH / OMH | 200cc |
| BMH / MH / OMH | 250cc |
| BMH / MH / OMH | 315cc |
| BMH / MH / OMH | 400cc |
| BMH / MH / OMH | 500cc |
| BMH / MH / OMH | 750cc |
Details
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg)
| 10.5 | 11 | 11.5 | 12.3 | 13.0 | |

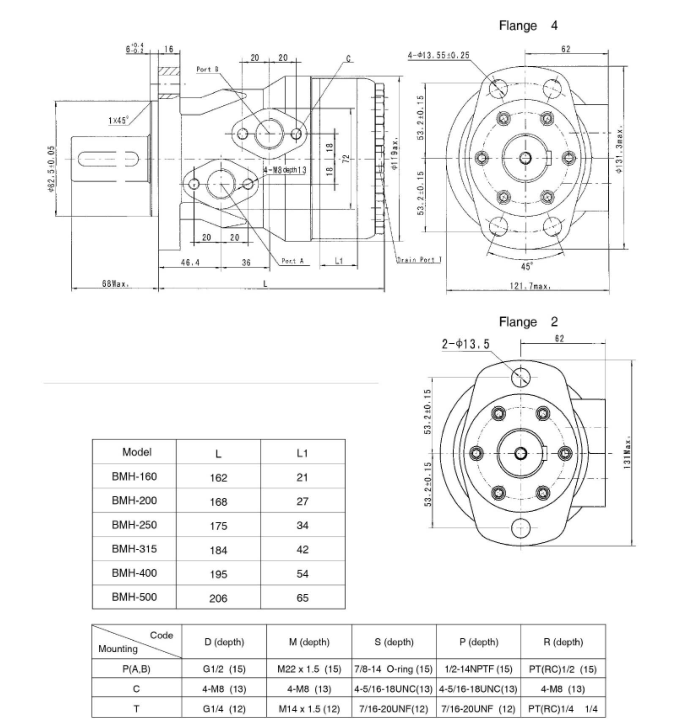

| Model | L | L1 |
| BMH-160 | 162 | 21 |
| BMH-200 | 168 | 27 |
| BMH-250 | 175 | 34 |
| BMH-315 | 184 | 42 |
| BMH-400 | 195 | 54 |
| BMH-500 | 206 | 65 |
| Mounting Code | D (depth) | M (depth) | S (depth) | P (depth) | R (depth) |
| P(A,B) | G1/2（15） | M22 x 1.5（15） | 7/8-14 O-ring (15) | 1/2-14NPTF (15) | PT(RC)1/2（15） |
| C | 4-M8（13） | 4-M8（13） | 4-5/16-18UNC(13) | 4-5/16-18UNC(13) | 4-M8（13） |
| T | G1/4（12） | M14 x 1.5 (12) | 7/16-20UNF(12) | 7/16-20UNF（12） | PT(RC)1/4 1/4 |
