BMM
Xeriwell or Others
| Type: | Hydraulic Drive Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMM 32CC | Power: | Hydraulic Oil |
| Displacement: | 8cc, 12.5cc, 20cc, 32cc, 40cc, 50cc | Weight: | 2.2 Kgs |
| Feature: | Replace OMM, M+S MM, EATON J Series | Application: | Winch, Capstan, Hauler, Conveyor, ... |
| Highlight: | mini hydraulic motor,omm hydraulic motor | ||
151G0013, 16mm shaft, 50ml/r
a manufacturer specialized in production of hydraulic orbit motors comparable with , Eaton, M+S, etc.

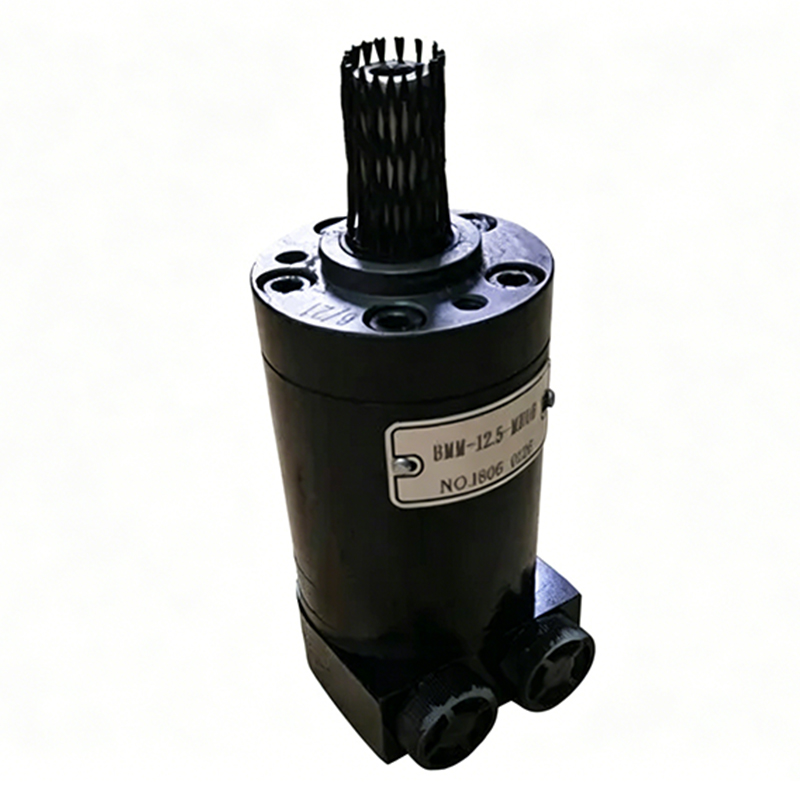

BMM50-MAE is a replacement motor of 151G0013.
Specifications:

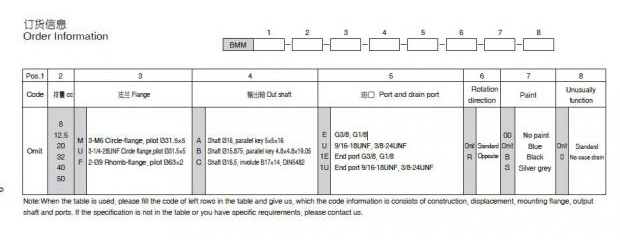

BMM = OMM 151G-
displacement 50cc

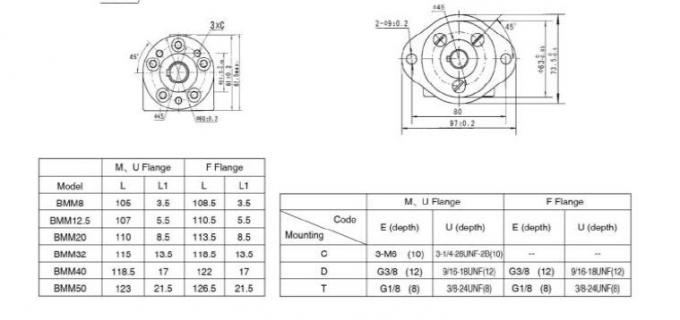

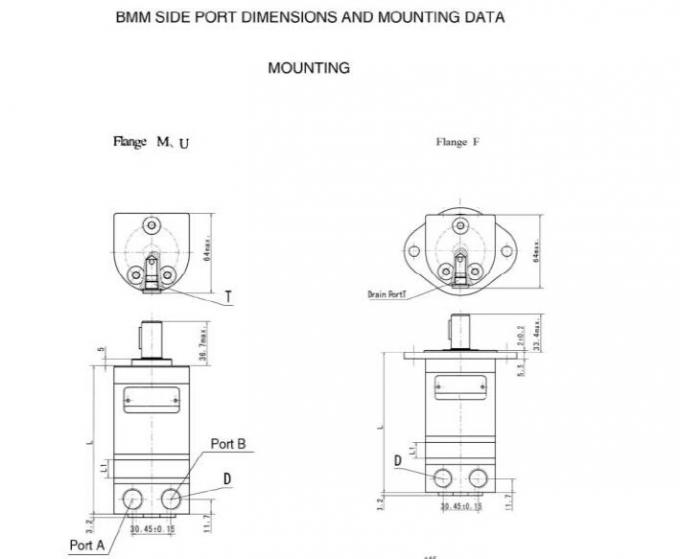

M = 3-M6 Circle-flange, pilot Ø31.5×5
A = Shaft Ø16, parallel key 5×5×16
E = G3/8, G1/8
Model Crossing:
| MOTOR CROSS REFERENCE TABLE | ||||||||
| Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | RECROTH | |
| BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
Technical data sheet:
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| Type | Max.inlet pressure | |
| BMM8-50 | Cont. | 17.5 |
| (Mpa) | Int. | 22.5 |
Xeriwell BMM = OMM = M+S MM = EATON J
With the axial oil distribution structure, it is smaller, high efficiency and long life.
Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
The Gerotor gear set design and provide compact volume,high power and low weigth.
Rolling bearing design, which has a greater lateral load capacity.
Direction of shaft rotation and speed can be controlled easily and smoothly.
A variety of connection types of flange, output shaft and oil port.
Can be used on Agricultural, Construction, Forestry, Mining, Industrial, etc.
Applications:
Machines for agriculture and forestry
Mining machinery
Construction plant equipment and access platforms
Grass cutting machinery
Special vehicles

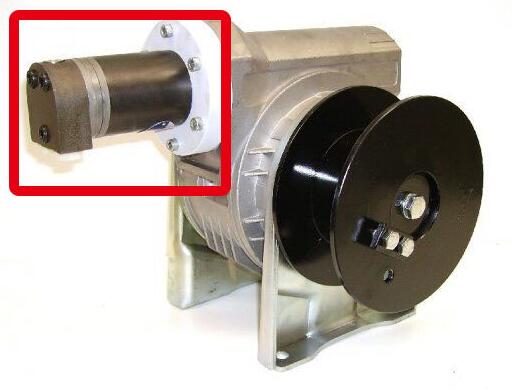

Ship's equipment and winches on fishing vessels
Machine tools
Woodworking and sawmill machinery
Plastic and rubber machinery etc.
