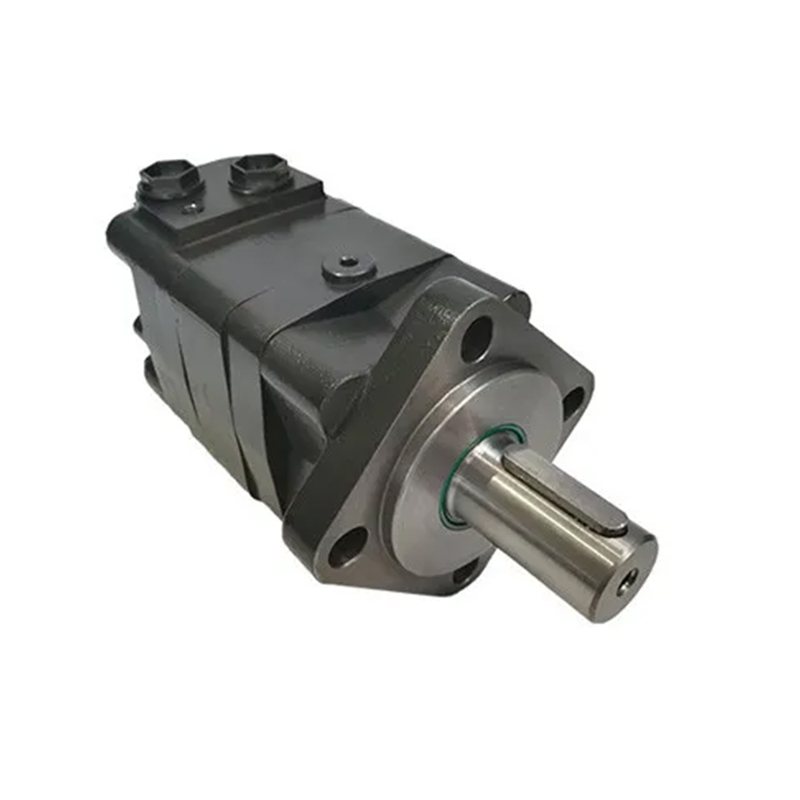

151F5102 Danfoss OMS 125 Hydraulic Motor, Cylindrical 32mm Shaft, BSP G1/2 Ports

You are here: Home » Products » Hydraulic Motor » Ungrouped » 151F5102 Danfoss OMS 125 Hydraulic Motor, Cylindrical 32mm Shaft, BSP G1/2 Ports

151F5102 Danfoss OMS 125 Hydraulic Motor, Cylindrical 32mm Shaft, BSP G1/2 Ports

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMS
Brand:
Xeriwell or Others

Product Description

Features:	Replace Danfoss 151F5102	Type:	Orbital Motor
Manufacturer:	Xeriwell	Origin:	China
Model No.:	BMS-125	Shaft:	Cylindrical 32mm

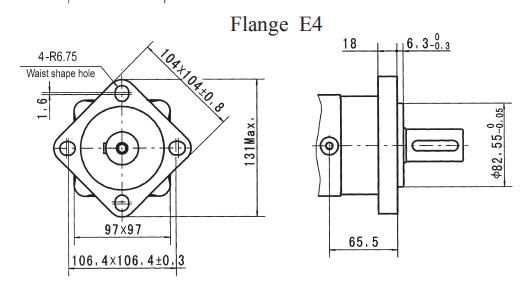

Port:	BSP Port G1/2	Flange:	4 Bolt
Highlight:	32mm danfoss hydro motor , OMS 125 danfoss hydro motor , oms 125 hydraulic motor

DANFOSS 151F5102 Similar Motor, OMS 125 Cylindrical 32mm Shaft with BSP port G1/2

This motor is a high-quality alternative to Danfoss OMS eries, with a very high price performance
The full model is 151F5102
Here are the parameters

Basic Motor: BMS

Size: 125

Mounting Flange: Standard

Shaft Style: cylindrical

Shaft Size: 32 mm

Port Style: side port

Port Size: G 1/2

Drain Port: Standard

Painting: Black

Shaft Seal: Standard

Specifications:

Type		BMS BMSE 80	BMS BMSE 100	BMS BMSE 125	BMS BMSE 160	BMS BMSE 200	BMS BMSE 250	BMS BMSE 315	BMS BMSE 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.

* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

BMSY new series motor adapt the advanced Geroler gear set designed with disc distribution flow

and high pressure.The unit can be supplied the individual variant in operating multifunction in

accordance with requirement of applications.

Characteristic featutres:

* Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and

reliable operation and high efficiency.

* The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The can offers

capacities of high pressure and high torque in the wide of applications.

* Advanced design in disc distribution flow, which can automatically compensate in operating with high volume

efficiency and long life , provide smooth and reliable operation.

* The new series motor is suitable for vehicles with greater loads and pressure drop
