| Quantity: | |
|---|---|

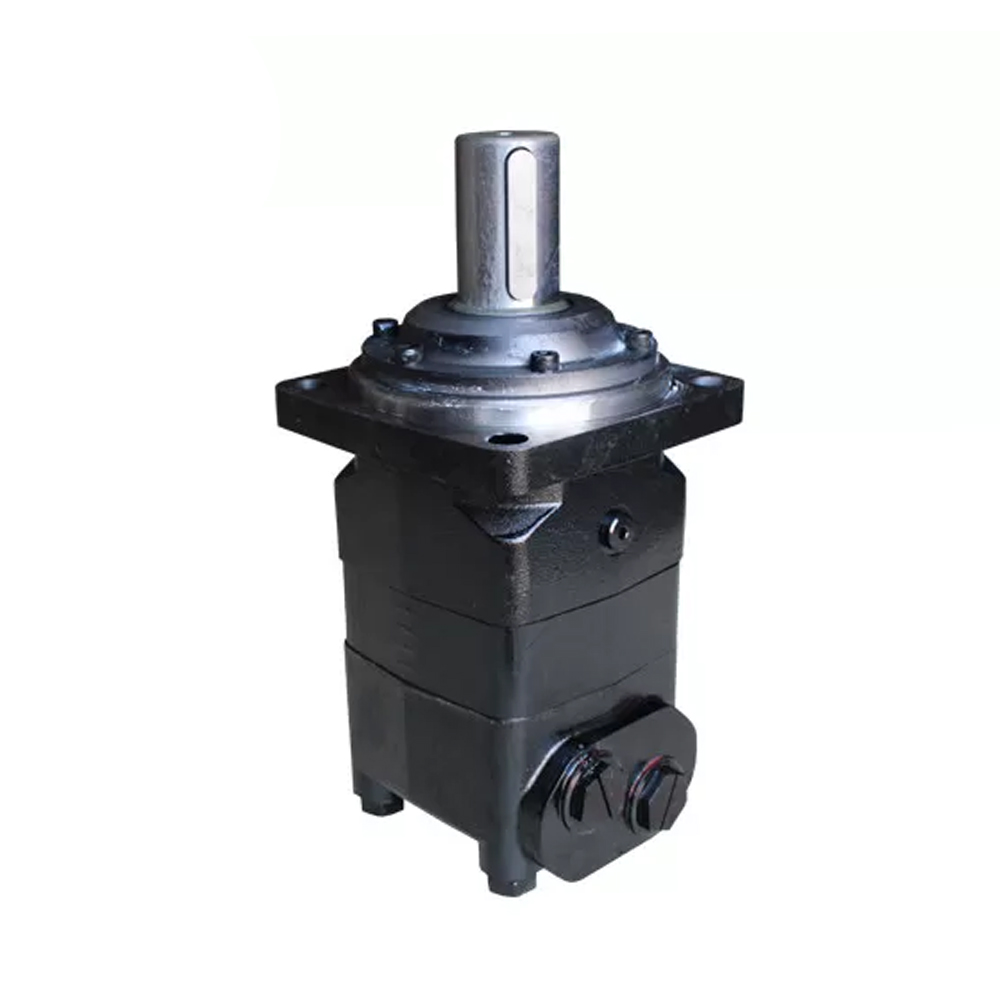

BMV-400-4AD
Xeriwell or Others
| Product: | Orbital Motor | Type: | Oil Motor |
|---|---|---|---|
| Feature: | Danfoss Equivalent | OEM: | 151B3101 |
| Displacement: | 400 Ml/r | Flange: | 4 Hole |
| Ports: | G1 - G1/4 | Shaft: | Cylindrical 50mm |
| Highlight: | oil Orbital Motor,151B3101 | ||
Overview:
Code: 151B3101
Aftermarket code: BMV-400
Basic Motor: OMV
Displacement: 400
Mounting Flange: Standard
Shaft Style: Cylindrical
Shaft Size: 50 mm ; M12 x 1,75 tap
Shaft Key: A14 x 9 x 70 mm (DIN 6885)
Port Size: Side port
Port Dimension: G 1
Drain Port Style: Standard
Drain port Dimension: G 1/4
| Danfoss Number | Disp. | Shaft | Keyway | Port | Drain |
| 151B3101 | 400 | 50mm | A14X9X70 | G1 | G1/4 |
| Unit weight | 32.6kg |
| Packing size | 44 x 24 x 22cm |
| Maximum Continuous Output Speed | 500 rpm |
| Maximum Intermittent Output Speed | 600 rpm |
| Maximum Continuous Output Torque | 1180Nm |
| Maximum Intermittent Output Torque | 1410Nm |
Danfoss similar type motors are available we belows:
DANFOSS Hydraulic Motors
OMM
OMP
OMR
OMS
OMH
OMT
OMV
Most complete range of Danfoss OMM, OMP, OMR, OMH, OMS, OMT, OMV series aftermarket motors
Applications: Mowing, snow removal, sprayer, trencher and wood products sometimes Item is in stock, sometimes not, when there is no a stock it needs 25 days to produce new
| 型号 | L | L1 | L2 |
| BMV315 | 217 | 20 | 161.5 |
| BMV400 | 224 | 27 | 168.5 |
| BMV500 | 232 | 35 | 176.5 |
| BMV630 | 244 | 47 | 188.5 |
| BMV800 | 255 | 58 | 199.5 |
| BMV1000 | 271 | 74 | 215.5 |
| Product: | Orbital Motor | Type: | Oil Motor |
|---|---|---|---|
| Feature: | Danfoss Equivalent | OEM: | 151B3101 |
| Displacement: | 400 Ml/r | Flange: | 4 Hole |
| Ports: | G1 - G1/4 | Shaft: | Cylindrical 50mm |
| Highlight: | oil Orbital Motor,151B3101 | ||
Overview:
Code: 151B3101
Aftermarket code: BMV-400
Basic Motor: OMV
Displacement: 400
Mounting Flange: Standard
Shaft Style: Cylindrical
Shaft Size: 50 mm ; M12 x 1,75 tap
Shaft Key: A14 x 9 x 70 mm (DIN 6885)
Port Size: Side port
Port Dimension: G 1
Drain Port Style: Standard
Drain port Dimension: G 1/4
| Danfoss Number | Disp. | Shaft | Keyway | Port | Drain |
| 151B3101 | 400 | 50mm | A14X9X70 | G1 | G1/4 |
| Unit weight | 32.6kg |
| Packing size | 44 x 24 x 22cm |
| Maximum Continuous Output Speed | 500 rpm |
| Maximum Intermittent Output Speed | 600 rpm |
| Maximum Continuous Output Torque | 1180Nm |
| Maximum Intermittent Output Torque | 1410Nm |
Danfoss similar type motors are available we belows:
DANFOSS Hydraulic Motors
OMM
OMP
OMR
OMS
OMH
OMT
OMV
Most complete range of Danfoss OMM, OMP, OMR, OMH, OMS, OMT, OMV series aftermarket motors
Applications: Mowing, snow removal, sprayer, trencher and wood products sometimes Item is in stock, sometimes not, when there is no a stock it needs 25 days to produce new
| 型号 | L | L1 | L2 |
| BMV315 | 217 | 20 | 161.5 |
| BMV400 | 224 | 27 | 168.5 |
| BMV500 | 232 | 35 | 176.5 |
| BMV630 | 244 | 47 | 188.5 |
| BMV800 | 255 | 58 | 199.5 |
| BMV1000 | 271 | 74 | 215.5 |
