BMT230
Xeriwell or Others
| Features: | Replace OMT, MT, 6K | Type: | Hydraulic Drive Motor |
|---|---|---|---|
| Manufacturer: | Xeriwell | Model No.: | BMT230 |
| Size: | 200ml/4,400ml/r, 500ml/r, 630ml/r, 750ml/r | Suit For: | Construction & Mining |
| Max Speed: | 196rpm-233rpm | Max Torque: | 1318N.m-1498N.m |
| Max Output: | 25.3kw-27.5kw | Max Pressure: | 14mpa-16mpa |
| Highlight: | Dynamic Hydraulic Pto Drive Motor,14.0cu Hydraulic Pto Drive Motor,750ml/r hydraulic drive motor | ||

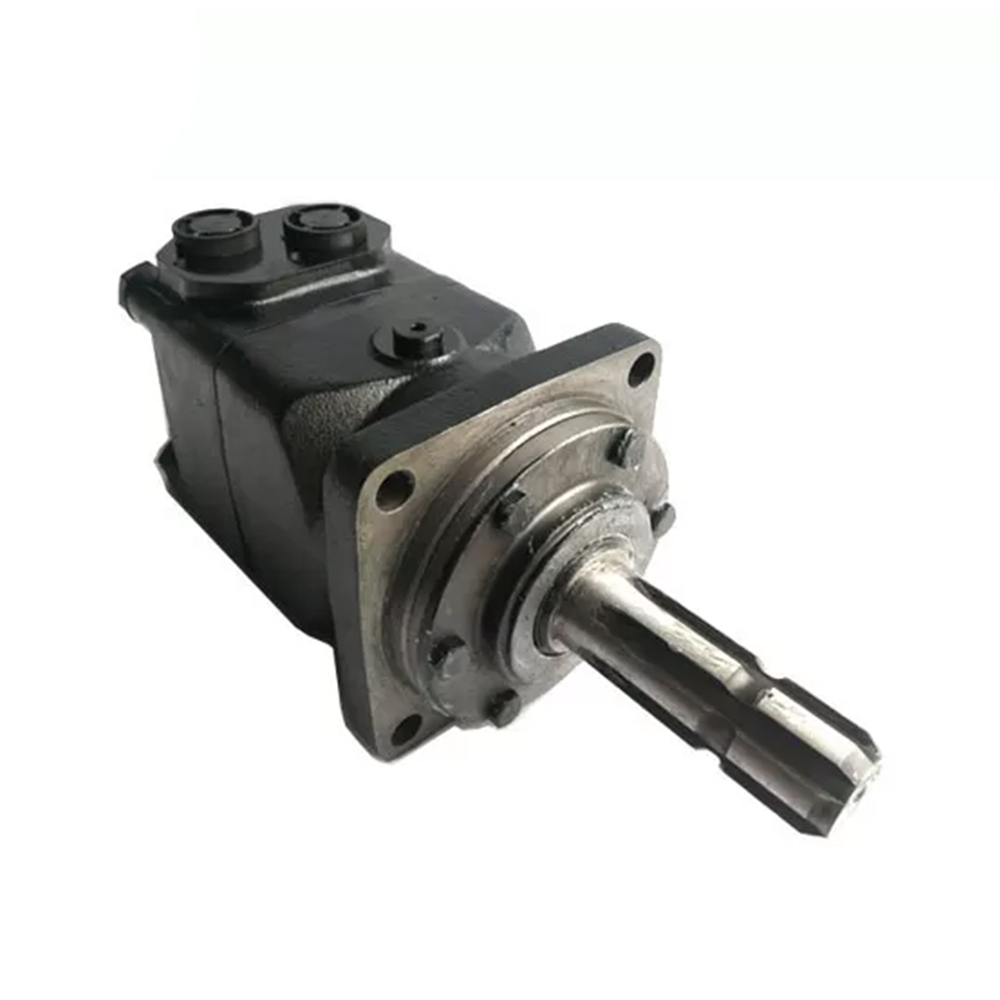

14.0cu PTO Hydraulic Drive Motor dynamic with PTO shaft for tractor attachment
Product details:
| MOUNTING DIMENSIONS OF OMT HYDRAULIC ORBIT MOTOR | |||
| Displacement | BMT/OMT230 | ||
| Shaft | Shaft Ø34.85 Spline key | ||
| Ports | G3/4 Manifold 4-M10, G1/4. | ||
| Flange | 4-Ø14 Square-flangeØ160, pilot Ø125×9 | ||
| Applications | Crane, Mixer, Winches, Excavator, Conveners, Drill Rig, Concrete Truck Mixer. | ||
| Warranty | One year | ||
Specifications:
Delivering premium power, these motors cover small to large, medium to heavy-duty needs.
advanced geroler gear set design
low pressure of start-up, smooth operate
high axial and radial forces
disc distribution flow, automatically compensate
Robust construction for longer life
Superior side load capacity
Smooth, extra low speed operation
High pressure shaft seal is standard
Innovative design eliminates the need for a drain
Dependability based on high quality design and manufacturing
Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
SHAFT DIMENSIONS
