| Quantity: | |
|---|---|
BZZ1-E-630B
Xeriwell or Others
| Product: | Hydraulic Power Steering Pump | Replace: | 1198749 Hydraulic Pump |
|---|---|---|---|
| Alternative: | Sauer OSPB-630 | Performance: | 99% |
| Apply To: | Heavy Construction Equipment | Displacement: | 630 Ml/r (630 Cc, 630 Cm3/r) |
| Function: | ON | Shaft: | Spline |
| Weight: | 12 Kgs | Packing: | 3pcs/ Carton/ 34×32×15cm |
| Highlight: | power steering valve,power steering control unit | ||

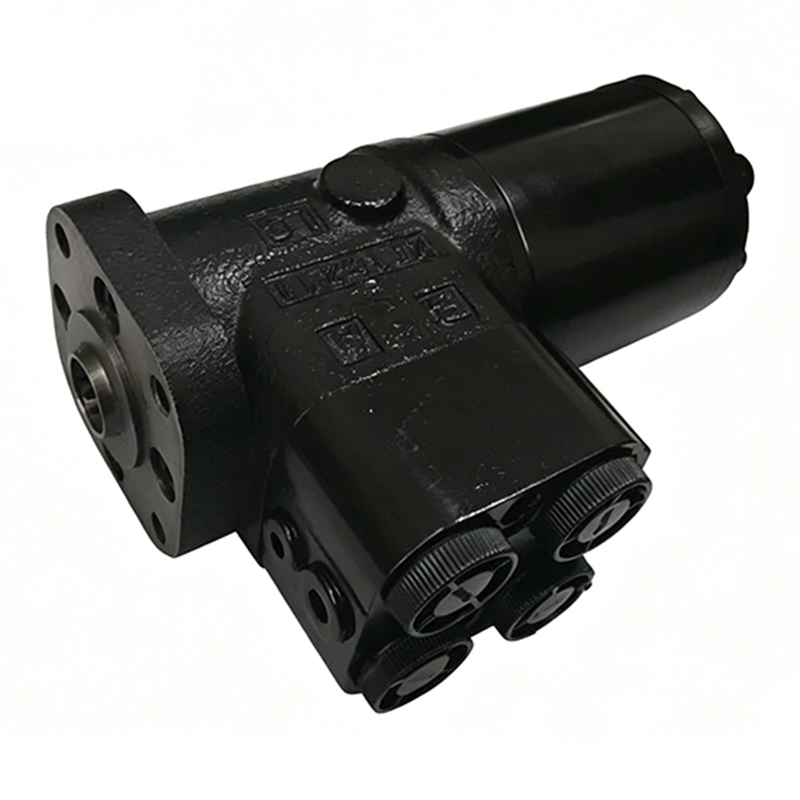

1198749 replacement hydraulic power steering pump for
BZZ1 indroduction:

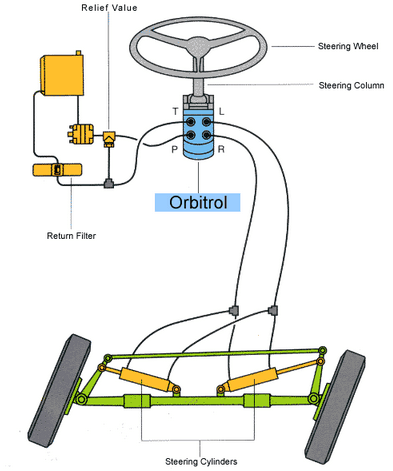

BZZ type hydraulic power steering pumps, is one of Xeriwell's best seller in Heavy equipment aftermarket, for forklift, loaders, pavers, tractors maintenance and repair. It's also called hydraulic steering units, or steering pumps, or orbitrols.

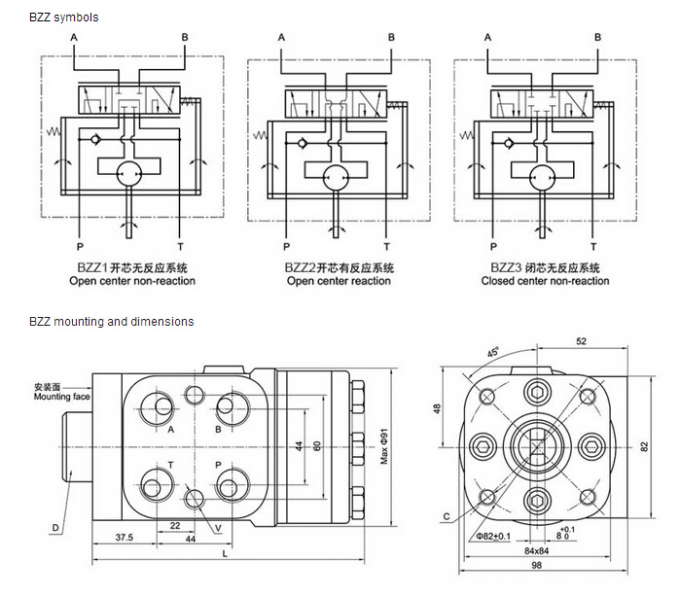

There are 4 differenct function available for BZZ series hydraulic power steering pumps.
BZZ1=open center non-reaction
BZZ2=open center reaction
BZZ3= close center non-reaction
BZZ5=load sensing
What benefit can you get?
If you are doing hydrualic business, you are distributing hydraulic components, you are service construction or heavy machines, you can take this hydraulic power steering pumps. If you are in hydraulic market but service other machines like agricultural, forestry, farming, you can also contact us to ask more hydraulic power steering pump, because we have hunreds of hundreds of steering pumps to meet different off-road mobile equipment applications. It's used in the direction control system of the off-road machines, and it's set under the steering wheel of these machines. Add this hydraulic power steering pump into your catagories, it will help you to enlarge your market, If you sell $1,000,000.00 a year, you raise profit by at least 30%, that is $300,000.00.
BZZ1-E-630B, OEM 1198749, OSPB 630 150-0048.
we have strong ability to match OEM part no. and provide you.
Specifications/ Technical Data:
This Hydraulic power steering pump is available from 50 ml/r to 1000 ml/r, flow from 4 L/min to 75 L/min, back pressure max 2.5Mpa, input pressure 16Mpa.
| Type | Displacement (mL/r) | Flow (L/min) | Max.input pressure (MPa) | Max. cont. back pressure (MPa) | Length (mm) |
| BZZ (1.2.3)–E50 * | 50 | 4 | 16 | 2.5 | 140 |
| BZZ(1.2.3) –E63 * | 60 | 5 | 141 | ||
| BZZ(1.2.3) –E80 * | 80 | 6 | 142.5 | ||
| BZZ(1.2.3) –E100 * | 10 | 7.5 | 145 | ||
| BZZ(1.2.3) –E125 * | 125 | 9.5 | 148 | ||
| BZZ (1.2.3)–E160 * | 160 | 12 | 153 | ||
| BZZ(1.2.3) –E200 * | 200 | 15 | 158 | ||
| BZZ (1.3)–E250 * | 250 | 19 | 164 | ||
| BZZ (1.3)–E280 * | 280 | 21 | 169 | ||
| BZZ (1.3)–E315 * | 315 | 24 | 174 | ||
| BZZ(1.3) –E400 * | 400 | 30 | 184 | ||
| BZZ (1.3)–E500 * | 500 | 38 | 197 | ||
| BZZ(1.3) –E630 * | 630 | 48 | 216 | ||
| BZZ (1.3)–E800 * | 800 | 60 | 236 | ||
| BZZ (1.3)–E1000 * | 10000 | 75 | 262 |
How to work with Xeriwell?
Inorder to make you better understand how to work with us, here i give you the steps:
discuss your demand with us first
we help you to confirm the products
match with our models
discuss your demand quantity with us, this will help us to provide you our best offer
we make a deal on the offer
sign a contract
you pay deposit
we produce
you pay balance payment after order ready for shipping
dispatch order
Payment terms: 30% deposit, 70% balance should be paid before shipping
Shipping: by sea, by air, by train
Terms: FOB, CFR, CIF
Loading port: Tianjin, Qingdao, Shanghai, Ningbo, China
What is you warranty period?
For your further better understand what after-sale service we are offering, here i give you the details:
each item supplied by 'Xeriwell' will be tested on it's testing plant at leaset twice
each item supplied by 'Xeriwell' will with a quality certificate
charge-free products, parts and services will be provided if any failures or defects of the contractual product in normal operation condition within the warranty period.
all of our product practice protect the quality 1 year.
