| Quantity: | |
|---|---|
119- series
Xeriwell or Others
| Features: | Eaton Replacement | Item: | LSHT Motors |
|---|---|---|---|
| Type: | Orbital | Series: | 119- |
| Displacement: | 665 Cm3-R, 940 Cm3-R | Manufactuerer: | Xeriwell |
| Origin: | China | Replacement Series: | BMK10 |
| Highlight: | 119-1035 Char Lynn Motor,char lynn 2000 series motor,BMK10 Char Lynn Motor | ||

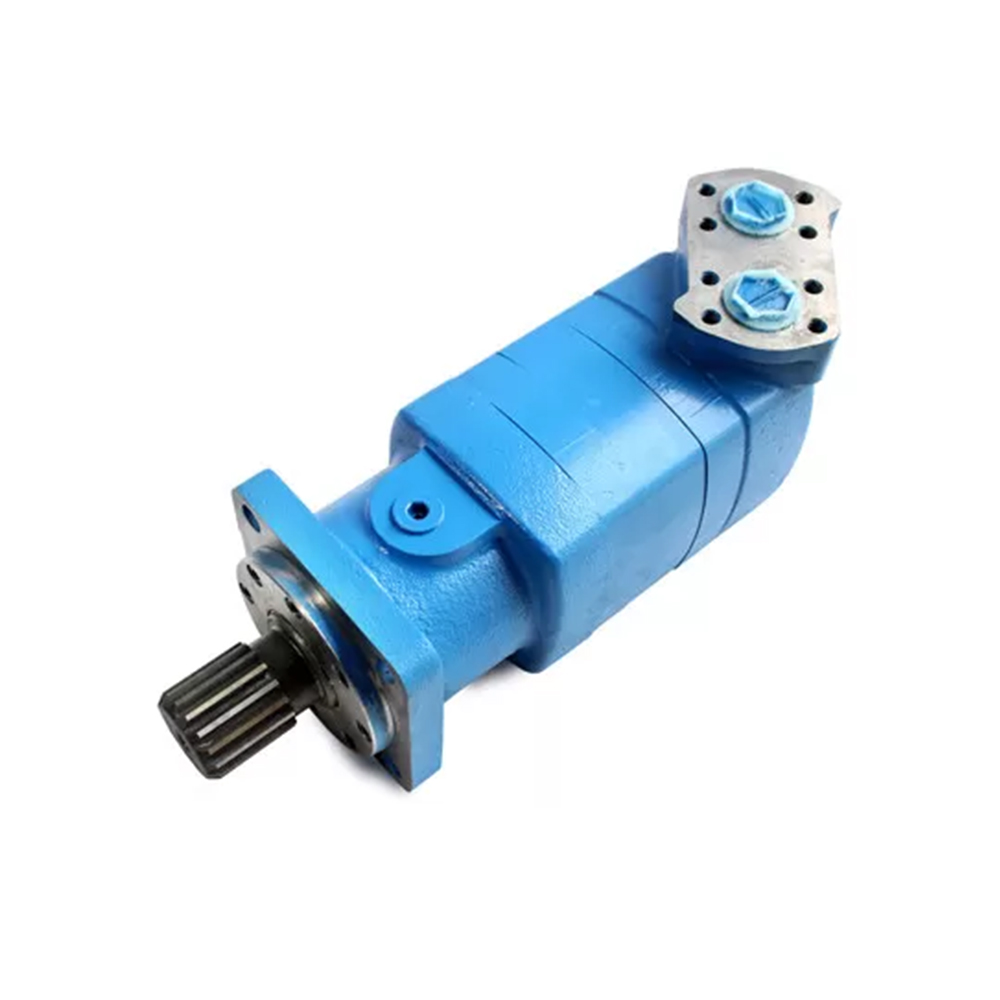

119-1030-003. Standard SAE C mount 2 1/4" Straight keyed shaft 1 5/16" oring ports 31.6 cubic inch displacement 665 cm3, 945 cm3, Brand New unit Fully Tested and Warranted Part number for reference purposes only, it is not implied it is made by the manufacture. For more items please contact us
We provide Char-Lynn Eaton Hydraulic Motor 10,000 Series aftermarket types. These hydraulic motors are very Low speed, high torque hydraulic motors. Long life under extreme operating conditions.
This hydraulic motor is suitable for a wide variety of hydraulic fluid. Max Cubic Inch Displacement - 40.6. Max Torque - 18,450 in/lbs. Dual Rotation 2 1/4 keyed Shaft. 4 Bolt Mounting Flange with 5-inch Pilot Diameter. This is an replacement Char-Lynn Eaton hydraulic motor.
| Product Name | HYDRAULIC MOTOR 665.3CM3/R 119-1030-003 |
| Manufacturerer | Xeriwell Technology made alternative |
| Net Weight | 33.1 KG |
| Dimension Unit | 39.4 X 15.1 X 16.8 CM |
| Type | Orbital |
| Features | High torque and flow . |
| Specification | Product : Motor Series : 10,000 Series Displacement : 665.3 CM3/R [40.60 IN3/R] Mounting Type : Standard, 4 Bolt; 127.0 [5.00] Pilot Dia. 16.76 [.660] Dia. Holes On 161.92 [6.375] Dia. Bolt Circle. Output Shaft : 57.15 [2.250] Dia. Straight Shaft With .500-20 Unf-2B Thread In End, 12.7 [.50] Square X 63.5 [2.50] Straight Key Ports: 1.3125-12 Un-2B Sae O-Ring Staggered Ports Flow Options : .5625-18 Unf-2B Drain Sae O-Ring Port Low Pressure Relief : None Pressure / Flow Option : None Geroler Option : Standard Seal Option : Standard |
| Item | Hydraulic motors |
