| Quantity: | |
|---|---|
BMK10
Xeriwell or Others
| Type: | Hydraulic Disc Motor | Model No.: | BMK10 119- |
|---|---|---|---|
| Max.speed(rpm): | Cont.354rpm/int.550rpm | Max Flow: | Cont.170l/min/int.265l/min |
| Max.torque(N.m): | Cont.1475N.m/int.1965N.m | Max Pressure Drop: | Cont.20.5Mpa/int.27.5Mpa |
| Highlight: | 119-1041-003 hydraulic motor for winch,charlynn 10000 hydraulic motor for winch,10000 series char lynn hydraulic motor | ||

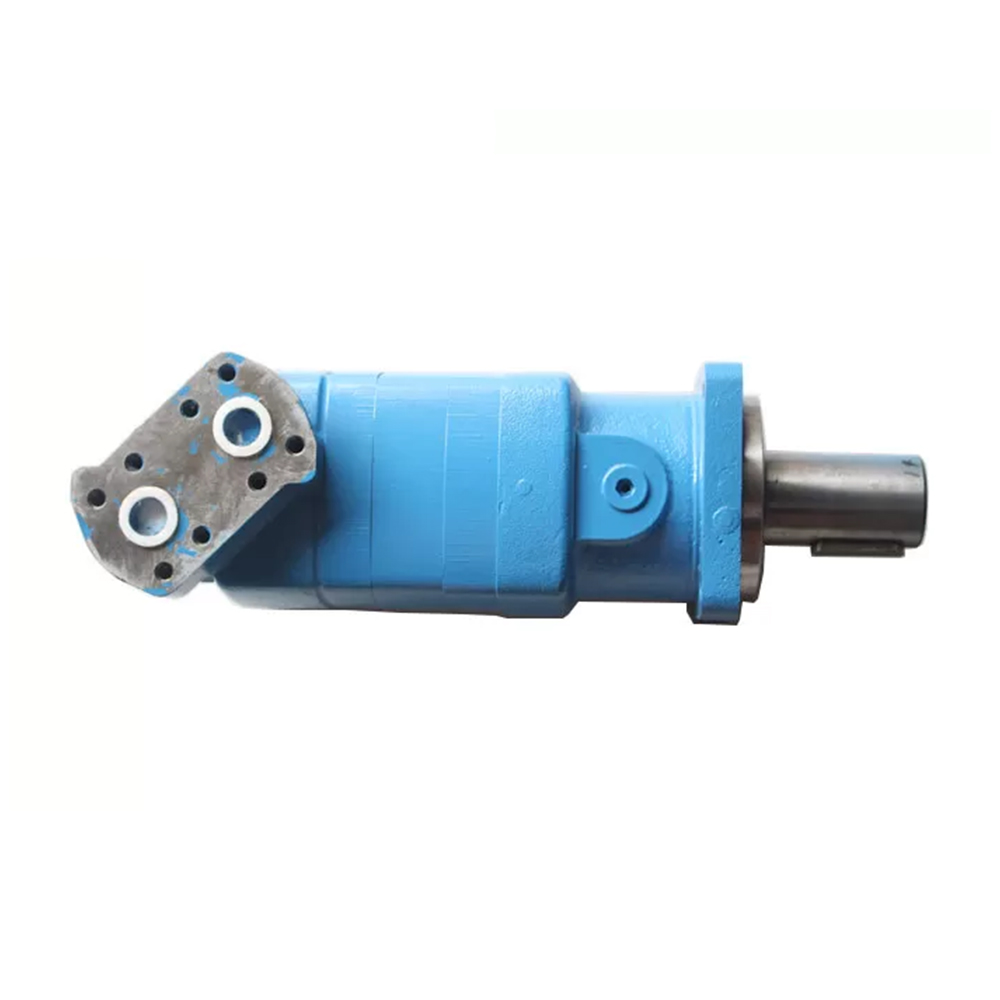

119-1041-003 Low Speed Motor29.3Cu/In Charlynn 10000 Series Hydraulic Motor For Winch
Xeriwell BMK10
EATON CHAR-LYNN 10000
EATON CHAR-LYNN 10K
Model number: BMK10-1041
119-1041-003
119-1028-003
119-1034-003
119-1035-003
119-1028-003
119-1031-003
• High torque and flow
• Many options like 2 speed and speed sensors make this motor “smart”
• Low pressure loss even in higher flows
• High power density for demanding mobile and industrial applications
• Many options to draw from
| Main Specification | ||||||
| Type | BMK10 | BMK10 | BMK10 | BMK10 | ||
| 345 | 480 | 665 | 940 | |||
| Geometric displacement | 345 | 480 | 665 | 940 | ||
| (cm3 /rev.) | ||||||
| Main speed(rpm) | cont. | 501 | 354 | 254 | 179 | |
| int. | 784 | 552 | 396 | 279 | ||
| Max torque N.M | cont. | 1040 | 1475 | 2085 | 2700 | |
| int. | 1390 | 1965 | 2610 | 3440 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | |
| int. | 27.5 | 27.5 | 27.5 | 27.5 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | ||
| Model 119-1041 |
29.3 cu in displ |
| PSI 3000 cont |
| PSI 4000 int |
| PSI 4000 peak |
| Torque 13050 in lbs cont |
| Torque 17410 in lbs int |
| 170 RPM at 45 GPM |
| 265 RPM at 70 GPM |
| Rotation reversible |
| Mount SAE C 4 bolt |
| Shaft 2-1/4" dia x 4.49" w/1/2" keyway |
| Ports SAE 16 |
| drain SAE 6 |
| Size 16-1/4" x 6" x 6" |
| weight 45.5kgs |
Eaton similar type motors are available we belows:
J (129-) Xeriwell BMM
H (101-) Xeriwell BMPH
S (103-) Xeriwell BMRS
T (158-) Xeriwell BMRS
W (162-) Xeriwell BMRW
2000 (104-, 105-, 106-, 193-) Xeriwell BMK2
4000 (109-, 110-, 111-) Xeriwell BMK4
6000 (112-, 113-, 114-) Xeriwell BMK6
10000 (119-) Xeriwell BMK10
