| Quantity: | |
|---|---|
BMK6
Xeriwell or Others
| Type: | Hydraulic Low Speed High Torque Motor | Manufacturer: | Xeriwell |
|---|---|---|---|
| Model No.: | 6k Motor | Size: | 500ml/r |
| Max.torque(N.m): | Cont.1160N.m/int.1625N.m | Max.speed(rpm): | Cont.382rpm/int.570rpm |
| Highlight: | 113-1072-006 wheel drive motor,char lynn 6000 wheel drive motor,disc valve hydraulic drive wheel motor | ||

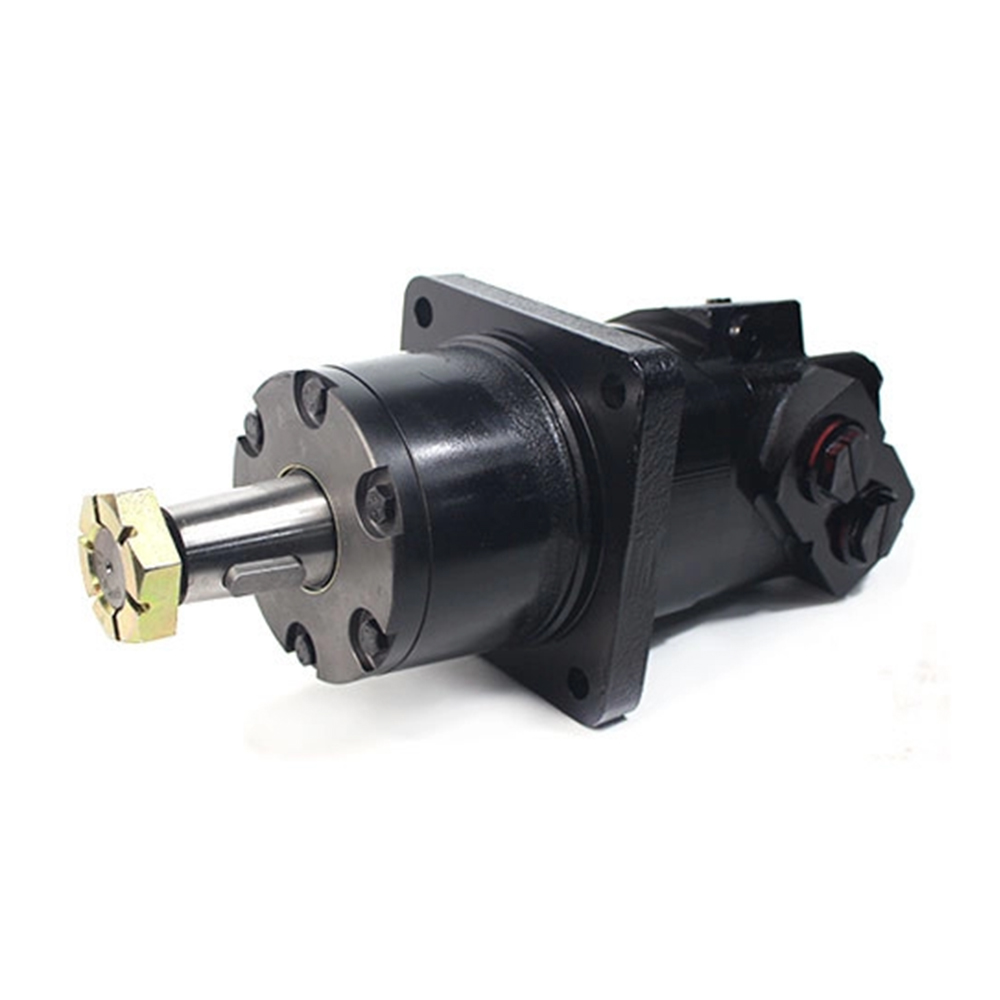

113-1072-006 charlynn 6000 series wheel drive motor disc Valve Hydraulic Motors
Xeriwell produce the bmk6 motors,matching charlynn 6000 motor 113-1072-006
Model number: BMK6
Replace Char-lynn motor 6000 Series
Displacement: 500cc
Flange: wheel flange
Pilot: 127x12.5
Mounting distance: 161.9
Shaft: tapered shaft
Port:3/4’’ 8X3/8-16UNC
Drain port: 7/16-20 UNF
Paint: Black
Main Specification:
| Type | BMK6 200 | BMK6 250 | BMK6 315 | BMK6 400 | BMK6 500 | BMK6 630 | BMK6 800 | BMK6 1000 | |
| Geometric displacement (cm3 /rev.) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | |
| Part Number | Displacement cm³/rev (in⊃3;/rev) |
| 113-1070-006 | 195 (11.9) |
| 113-1071-006 | 245 (15.0) |
| 113-1072-006 | 310 (19.0) |
| 113-1073-006 | 390 (23.9) |
| 113-1074-006 | 490 (30.0) |
| 113-1093-006 | 625 (38.0) |
| 113-1075-006 | 985 (60.0) |
| Type: | Hydraulic Low Speed High Torque Motor | Manufacturer: | Xeriwell |
|---|---|---|---|
| Model No.: | 6k Motor | Size: | 500ml/r |
| Max.torque(N.m): | Cont.1160N.m/int.1625N.m | Max.speed(rpm): | Cont.382rpm/int.570rpm |
| Highlight: | 113-1072-006 wheel drive motor,char lynn 6000 wheel drive motor,disc valve hydraulic drive wheel motor | ||
113-1072-006 charlynn 6000 series wheel drive motor disc Valve Hydraulic Motors
Xeriwell produce the bmk6 motors,matching charlynn 6000 motor 113-1072-006
Model number: BMK6
Replace Char-lynn motor 6000 Series
Displacement: 500cc
Flange: wheel flange
Pilot: 127x12.5
Mounting distance: 161.9
Shaft: tapered shaft
Port:3/4’’ 8X3/8-16UNC
Drain port: 7/16-20 UNF
Paint: Black
Main Specification:
| Type | BMK6 200 | BMK6 250 | BMK6 315 | BMK6 400 | BMK6 500 | BMK6 630 | BMK6 800 | BMK6 1000 | |
| Geometric displacement (cm3 /rev.) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | |
| Part Number | Displacement cm³/rev (in⊃3;/rev) |
| 113-1070-006 | 195 (11.9) |
| 113-1071-006 | 245 (15.0) |
| 113-1072-006 | 310 (19.0) |
| 113-1073-006 | 390 (23.9) |
| 113-1074-006 | 490 (30.0) |
| 113-1093-006 | 625 (38.0) |
| 113-1075-006 | 985 (60.0) |
