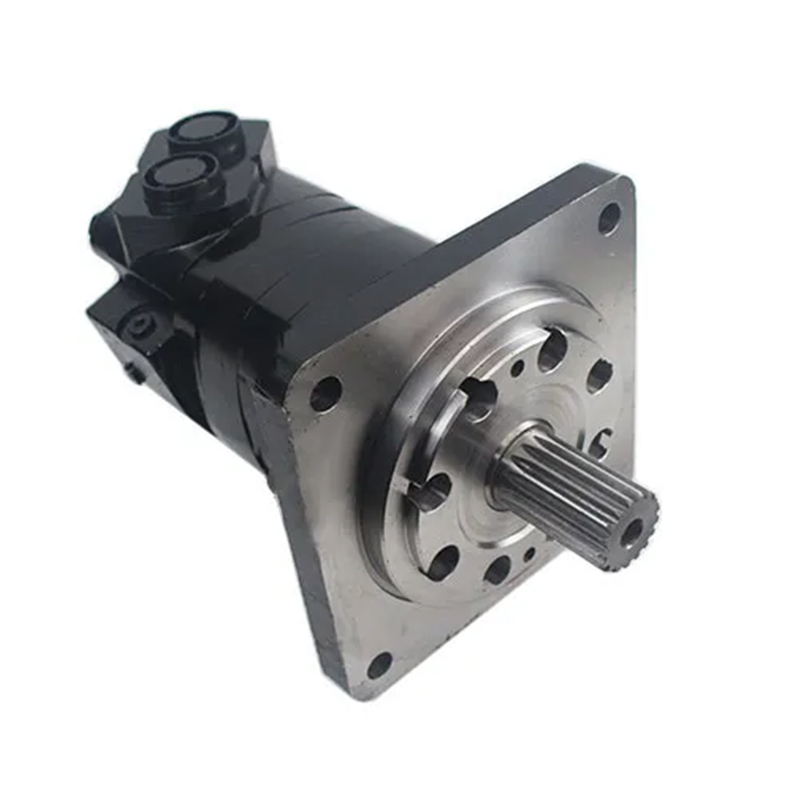

112-1131-006
Xeriwell or Others
| Type: | Charlynn 6000 Series | Flange: | 4 Bolts Big Square Flange |
|---|---|---|---|
| Shaft: | 17 Teeth Spline Shaft | Displacement: | 312cc |
| Max Speed: | Cont.304/int.455rpm | Material: | Cast Iron |
| Highlight: | 112-1131-006 spline shaft hydraulic motor,low speed high torque hydraulic motor,big flange hydraulic motor | ||
Main Specifications:
| Type | BMK6 200 | BMK6 250 | BMK6 315 | BMK6 400 | BMK6 500 | BMK6 630 | BMK6 800 | BMK6 1000 | ||
| Geometric displacement (cm3 /rev.) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | ||
| Main speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 | |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | ||
| Max torque N.M | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 | |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 | |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | ||
| CHARLYNN 6000 SERIES MOTORS WE CAN SUPPLY | ||||
| 112-1001-006 | 112-1375-006 | 112-1145-006 | 112-1093-006 | 112-1069-006 |
| 112-1005-006 | 112-1383-006 | 112-1150-006 | 112-1094-006 | 112-1076-006 |
| 112-1006-006 | 112-1446-006 | 112-1158-006 | 112-1095-006 | 112-1080-006 |
| 112-1007-006 | 112-1456-006 | 112-1161-006 | 112-1096-006 | 112-1088-006 |
| 112-1011-006 | 112-1528-006 | 112-1162-006 | 112-1097-006 | 112-1089-006 |
| 112-1012-006 | 112-1560-006 | 112-1163-006 | 112-1098-006 | 112-1090-006 |
| 112-1013-006 | 113-1019-006 | 112-1164-006 | 112-1099-006 | 112-1091-006 |
| 112-1017-006 | 113-1020-006 | 112-1166-006 | 112-1104-006 | 112-1092-006 |
| 112-1018-006 | 113-1021-006 | 112-1180-006 | 112-1107-006 | 113-1075-006 |
| 112-1019-006 | 113-1022-006 | 112-1182-006 | 112-1108-006 | 113-1076-006 |
| 112-1020-006 | 113-1023-006 | 112-1193-006 | 112-1109-006 | 113-1077-006 |
| 112-1021-006 | 113-1025-006 | 112-1206-006 | 112-1111-006 | 113-1078-006 |
| 112-1022-006 | 113-1026-006 | 112-1207-006 | 112-1115-006 | 113-1079-006 |
| 112-1023-006 | 113-1027-006 | 112-1209-006 | 112-1116-006 | 113-1080-006 |
| 112-1024-006 | 113-1028-006 | 112-1213-006 | 112-1128-006 | 113-1081-006 |
| 112-1025-006 | 113-1047-006 | 112-1214-006 | 112-1131-006 | 113-1082-006 |
| 112-1026-006 | 113-1051-006 | 112-1215-006 | 112-1138-006 | 112-1320-006 |
| 112-1052-006 | 113-1052-006 | 112-1216-006 | 113-1083-006 | 112-1324-006 |
| 112-1053-006 | 113-1053-006 | 112-1217-006 | 113-1084-006 | 112-1334-006 |
| 112-1054-006 | 113-1057-006 | 112-1218-006 | 113-1085-006 | 112-1336-006 |
| 112-1055-006 | 113-1058-006 | 112-1219-006 | 113-1086-006 | 112-1345-006 |
| 112-1056-006 | 113-1059-006 | 112-1220-006 | 113-1087-006 | 112-1350-006 |
| 112-1057-006 | 113-1063-006 | 112-1227-006 | 113-1093-006 | 112-1359-006 |
| 112-1058-006 | 113-1064-006 | 112-1229-006 | 113-1095-006 | 112-1360-006 |
| 112-1059-006 | 113-1065-006 | 112-1230-006 | 113-1100-006 | 112-1067-006 |
| 112-1060-006 | 113-1066-006 | 112-1247-006 | 113-1101-006 | 112-1068-006 |
| 112-1061-006 | 113-1067-006 | 112-1253-006 | 113-1108-006 | 113-1073-006 |
| 112-1062-006 | 113-1068-006 | 112-1254-006 | 113-1121-006 | 113-1074-006 |
| 112-1063-006 | 113-1069-006 | 112-1264-006 | 113-1133-006 | 112-1307-006 |
| 112-1064-006 | 113-1070-006 | 112-1287-006 | 113-1140-006 | 112-1309-006 |
| 112-1065-006 | 113-1071-006 | 112-1290-006 | 113-1143-006 | 113-1157-006 |
| 112-1066-006 | 113-1072-006 | 112-1305-006 | 113-1150-006 | 113-1165-006 |
