112-1131-006
Xeriwell or Others

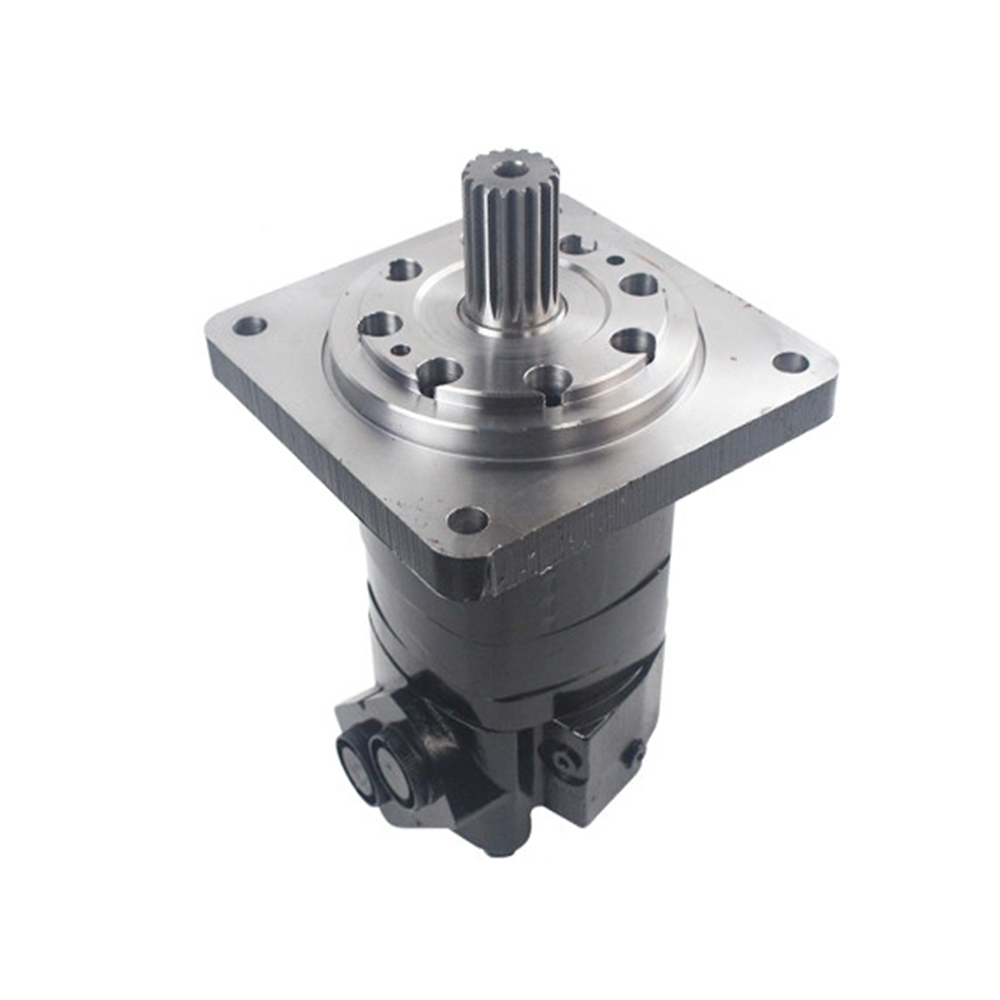

| Type: | Gerotor Hydraulic Motor | Model Number: | 112-1131-006 |
|---|---|---|---|
| Displacement: | 315 Ml/r | Manufacturer: | Xeriwell |
| Highlight: | 112-1131-006 Char-Lynn 6000 Series Motor,Low Speed char lynn 6000 series,High Torque motor charlyn 6000 | ||
Welcome to choose Xeriwell Hydraulics
You are visiting a high-end hydraulic motor developed by Xeriwell Hydraulics that is compatible with Eaton Charlynn 6000 series
Many dealers prefer to choose with compatible installation and performance due to long delivery time and continued high prices
Not only can meet the installation and performance requirements, our quotation is reasonable and delivery time is fast
The model introduced in this article is 112-1131-006 = Xeriwell BMK6-315
Its parameters are as follows:
| TYPE | BMK6 200 | BMK6 250 | BMK6 315 | BMK6 400 | BMK6 500 | BMK6 630 | BMK6 800 | BMK6 1000 | |
| Displacement(ml/r) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Max.speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | |
Max.Pressure.Drop(Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 24 | 17.5 | 17 | |
| Max.Torque(N.m) | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | |
| Max.Flow(cont.)(L/min) | cont. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| int. | 170 | 205 | 225 | 225 | 225 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | |
More 6000 series hydraulic motors available:
| 112-1001-006 | 112-1375-006 | 112-1145-006 | 112-1093-006 | 112-1069-006 |
| 112-1005-006 | 112-1383-006 | 112-1150-006 | 112-1094-006 | 112-1076-006 |
| 112-1006-006 | 112-1446-006 | 112-1158-006 | 112-1095-006 | 112-1080-006 |
| 112-1007-006 | 112-1456-006 | 112-1161-006 | 112-1096-006 | 112-1088-006 |
| 112-1011-006 | 112-1528-006 | 112-1162-006 | 112-1097-006 | 112-1089-006 |
| 112-1012-006 | 112-1560-006 | 112-1163-006 | 112-1098-006 | 112-1090-006 |
| 112-1013-006 | 113-1019-006 | 112-1164-006 | 112-1099-006 | 112-1091-006 |
| 112-1017-006 | 113-1020-006 | 112-1166-006 | 112-1104-006 | 112-1092-006 |
| 112-1018-006 | 113-1021-006 | 112-1180-006 | 112-1107-006 | 113-1075-006 |
| 112-1019-006 | 113-1022-006 | 112-1182-006 | 112-1108-006 | 113-1076-006 |
| 112-1020-006 | 113-1023-006 | 112-1193-006 | 112-1109-006 | 113-1077-006 |
| 112-1021-006 | 113-1025-006 | 112-1206-006 | 112-1111-006 | 113-1078-006 |
| 112-1022-006 | 113-1026-006 | 112-1207-006 | 112-1115-006 | 113-1079-006 |
| 112-1023-006 | 113-1027-006 | 112-1209-006 | 112-1116-006 | 113-1080-006 |
| 112-1024-006 | 113-1028-006 | 112-1213-006 | 112-1128-006 | 113-1081-006 |
| 112-1025-006 | 113-1047-006 | 112-1214-006 | 112-1131-006 | 113-1082-006 |
| 112-1026-006 | 113-1051-006 | 112-1215-006 | 112-1138-006 | 112-1320-006 |
| 112-1052-006 | 113-1052-006 | 112-1216-006 | 113-1083-006 | 112-1324-006 |
| 112-1053-006 | 113-1053-006 | 112-1217-006 | 113-1084-006 | 112-1334-006 |
| 112-1054-006 | 113-1057-006 | 112-1218-006 | 113-1085-006 | 112-1336-006 |
| 112-1055-006 | 113-1058-006 | 112-1219-006 | 113-1086-006 | 112-1345-006 |
| 112-1056-006 | 113-1059-006 | 112-1220-006 | 113-1087-006 | 112-1350-006 |
| 112-1057-006 | 113-1063-006 | 112-1227-006 | 113-1093-006 | 112-1359-006 |
| 112-1058-006 | 113-1064-006 | 112-1229-006 | 113-1095-006 | 112-1360-006 |
| 112-1059-006 | 113-1065-006 | 112-1230-006 | 113-1100-006 | 112-1067-006 |
| 112-1060-006 | 113-1066-006 | 112-1247-006 | 113-1101-006 | 112-1068-006 |
| 112-1061-006 | 113-1067-006 | 112-1253-006 | 113-1108-006 | 113-1073-006 |
| 112-1062-006 | 113-1068-006 | 112-1254-006 | 113-1121-006 | 113-1074-006 |
| 112-1063-006 | 113-1069-006 | 112-1264-006 | 113-1133-006 | 112-1307-006 |
| 112-1064-006 | 113-1070-006 | 112-1287-006 | 113-1140-006 | 112-1309-006 |
| 112-1065-006 | 113-1071-006 | 112-1290-006 | 113-1143-006 | 113-1157-006 |
| 112-1066-006 | 113-1072-006 | 112-1305-006 | 113-1150-006 | 113-1165-006 |
More Eaton char lynn hydraulic motor available by us:
J (129-)
H (101-)
S (103-)
T (158-)
W (162-)
2000 (104-, 105-, 106-,)
4000 (109-, 110-,)
6000 (112-, 113-, 114-)
10000 ( 119-)
Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners
XeriWell is a dedicated provider of hydraulic products, specializing in hydraulic motors, pumps, components, and complete hydraulic systems. Positioned as a trusted supplier to the global market, we focus on delivering innovative and reliable hydraulic solutions that meet the highest standards. With a commitment to serving clients worldwide, XeriWell provides tailored solutions that address the unique hydraulic needs of any region, supporting industries with high-quality, dependable performance.
At XeriWell, we bring extensive expertise to the hydraulic industry, grounded in a deep understanding of industry standards and certifications that ensure top-quality products and services. Our team of specialized hydraulic engineers is well-versed in international standards, rigorously following certifications and guidelines to meet diverse market requirements. With an average of over 10 years of experience, our professionals have the knowledge to handle complex projects and offer fully customizable solutions.
XeriWell offers a comprehensive range of hydraulic products, including hydraulic motors, pumps, components, complete hydraulic systems, and various other hydraulic parts to meet diverse industry needs. In addition to our extensive product line, we provide tailored hydraulic system solutions, designed to meet each client's unique specifications. Our customization services save clients valuable time by eliminating the need to source multiple suppliers, delivering fully integrated and efficient solutions for their hydraulic applications.
XeriWell's core competitive advantage lies in our technical expertise. Unlike standard suppliers, we are a technology-driven company focused not only on sourcing high-quality hydraulic products but also on offering strategic guidance and expert recommendations to our clients. This technical strength, combined with our comprehensive product range and customization capabilities, allows us to deliver hydraulic solutions that truly add value and meet the specific needs of a global clientele.
At XeriWell, our vision is to be a leading global provider of innovative and reliable hydraulic solutions that drive industry progress and customer success. We are committed to excellence, integrity, and customer-centric service, valuing strong partnerships and continuous improvement. Our goal is to empower our clients by delivering high-quality, tailored solutions that meet evolving industry demands, fostering a future where hydraulic technology is seamlessly integrated, efficient, and sustainable for all.
At XeriWell, we offer a comprehensive range of hydraulic components, including hydraulic motors, pumps, accessories, valves and more, with options for both original and high-quality domestic alternatives. Backed by a robust supply chain, we are able to meet the vast majority of our clients'procurement needs, from standard models to non-standard and even discontinued products. Additionally, we provide fully customized services and solutions tailored to specific requirements, ensuring clients receive precisely the products and configurations needed for optimal performance. Our commitment to flexibility and reliability makes XeriWell a trusted partner for all hydraulic sourcing and customization needs.
