| Product: | Crushers, Screens, Quarry Mining Machinery | Type: | Charlynn 6000 Series |
| Flange: | 4 Bolts Square Flange | Shaft: | Key Shaft |
| Displacement: | 500cc | Max Speed: | Cont.304/int.455rpm |
| Highlight: | crushers charlynn 6000 series motor,112-1098-006 charlynn 6000 series motor,quarrying 6000 series char lynn motor |

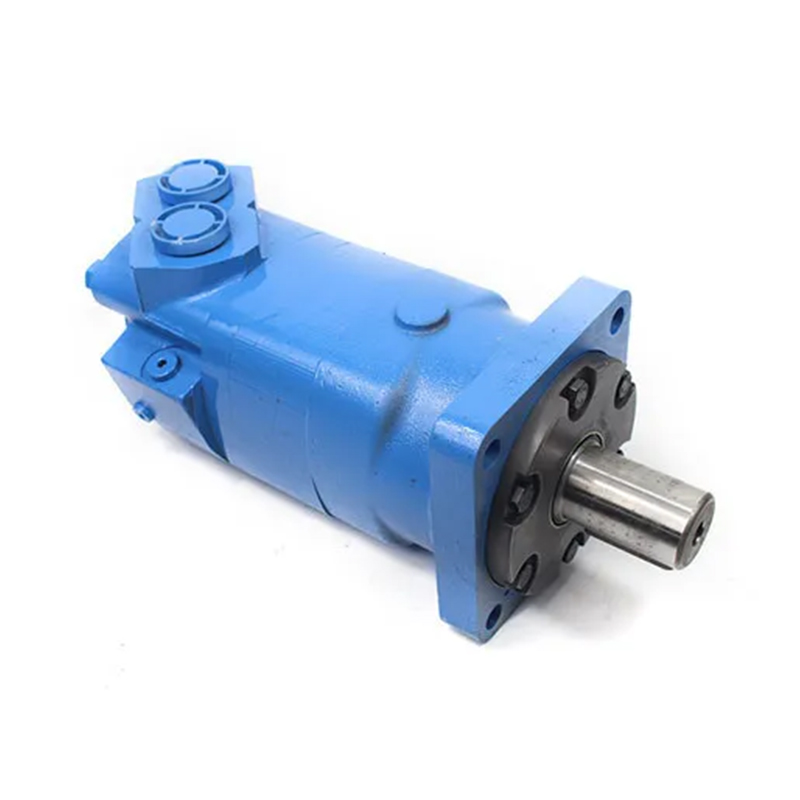

Hydraulic Motors 112-1098-006 For Crushers, Screens And Other Quarrying Mining Machinery
Xeriwell supplies high-quality hydraulic orbit motors for crushers, screens and other quarrying & mining machinery.
Our low-speed high-torque motors deliver superior performance, making them an ideal choice for the OEM market.
Product details:
order type:BMK6
Flange:4 bolts square flange
shaft:key shaft:40mm
ports:G1/2,7/8-16unf
fit:quarrying and mining machinery
quality:aftermarket OEM quality
Main Specifications:
| Type |
| BMK6 200 | BMK6 250 | BMK6 315 | BMK6 400 | BMK6 500 | BMK6 630 | BMK6 800 | BMK6 1000 |
Geometric displacement
(cm3 /rev.) |
| 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 |
| Main speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 |
| Max torque N.M | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 |
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 |
| Weight (kg) |
| 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 |
Xeriwell owns professional core technologies and a high-caliber R&D team. All our hydraulic motors are independently developed, with over 100 self-developed product models available, ensuring reliable and stable product quality.
Our products feature a wide range of application scenarios and serve as core components across multiple industries, including automotive, medical, aerospace and agricultural machinery. As a professional hydraulic motor manufacturer and long-term stable supplier, we also support customized production based on customers’ required specifications and models.
Hydraulic orbital motors are one of the flagship product series of Xeriwell. They are widely applied in construction machinery, mining equipment, metallurgical machinery, marine machinery and other key heavy industry fields. Even public transportation such as subways is equipped with hydraulic rail motors. Hydraulic motors have indeed penetrated all aspects of modern life and become an indispensable basic industrial component.
The wide application of hydraulic rail motors in key sectors fully reflects their high practical value. Hydraulic rail motors manufactured by Xeriwell deliver outstanding cost performance. Compared with conventional motors, they feature high working efficiency, lower energy consumption, light weight, low inertia and cost advantages. More importantly, they offer excellent safety performance, superior load capacity in complex working conditions and long service life. Additionally, they are fully compatible with various types of hydraulic oil, eliminating users’ concerns about fluid adaptability.
As a manufacturer and industry leader in the hydraulic motor sector, Xeriwell always adheres to benchmark standards and focuses on customer experience. We provide high-quality hydraulic motors at competitive prices, far more cost-effective than mainstream alternatives on the market. We have established long-term cooperative relationships with clients from many countries and act as a reliable global hydraulic motor supplier.
If you are looking for cost-effective hydraulic motors, Xeriwell is your ideal choice. We offer a complete range of models with premium quality, affordable pricing, fast logistics and comprehensive after-sales maintenance services.
