| Quantity: | |
|---|---|
BMK6
Xeriwell or Others
| Type: | Hydraulic Disc Motors | Model No.: | BMK6-1000 |
|---|---|---|---|
| Max.torque(N.m): | Cont.1675N.m/int.1860N.m | Max.speed(rpm): | Cont.152rpm/int.230rpm |
| Max Pressure Drop: | Cont.14Mpa/int.14Mpa | Max Flow: | Cont.150l/min/int.225l/min |
| Highlight: | BMK6-1000 harvester parts,112-1063-006 harvester parts | ||

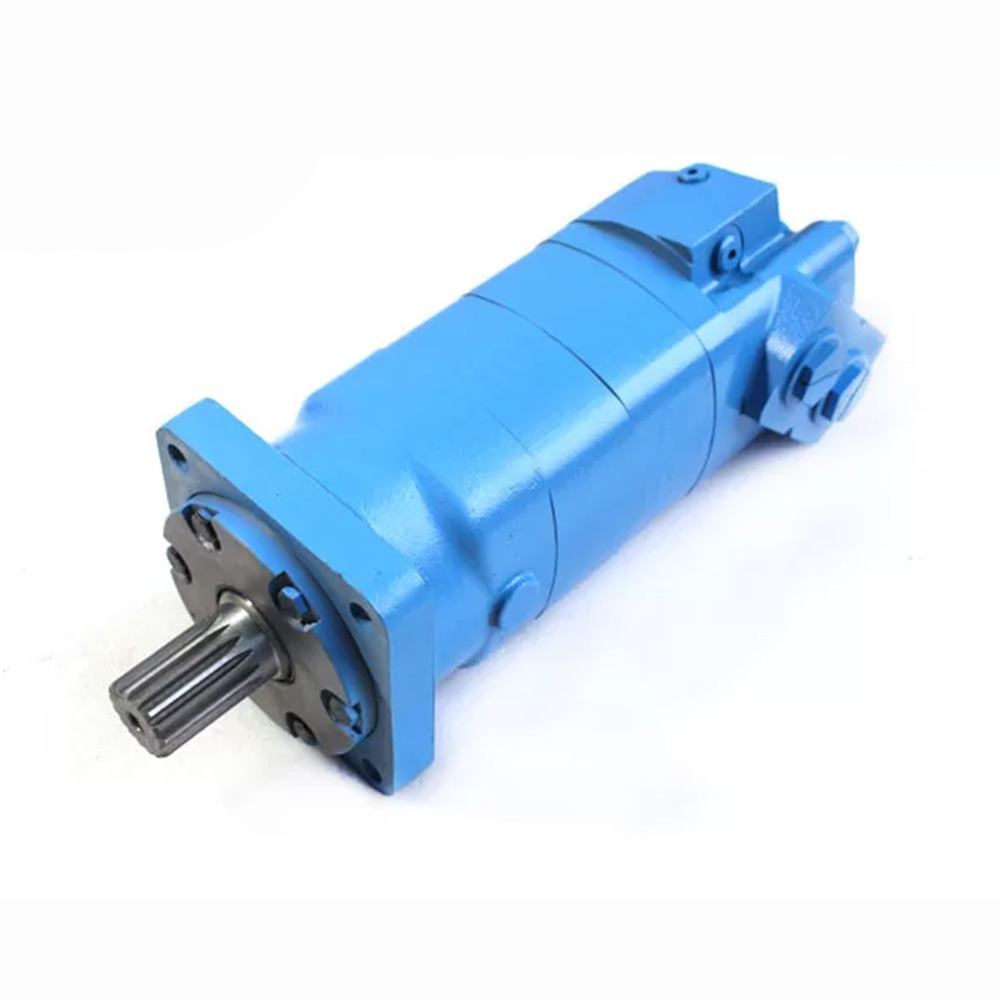

112-1063-006 1-1/2" 17 T Splined Shaft 60inch. harvester parts 4 Bolt SAE-CC Square Mount
BMK6-1000cc
Replace Char-lynn motor 6000 Series
Displacement: 981.6cc
Flange: 4x13.5 Square flange
Pilot: 127x12.5mm
Mounting distance: 161.9mm
Shaft: 17teeth shaft
Port: 1-5/16-12UNC
Drain port: 7/16-20 UNF
Paint: Blue

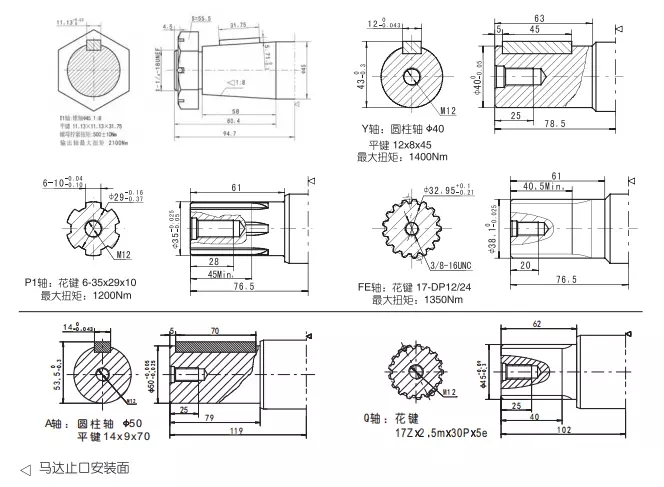

Spline Shaft
| G2 | ShaftΦ38.1,parallel key9.52×9.52×57.15 |
| FE | ShaftΦ38.1,splined tooth17-DP12/24 |
| Y1 | ShaftΦ40,parallel key12×8×63 |
| Y | ShaftΦ40,parallel key12×8×45 |
| H | ShaftΦ42,splined tooth 8-42x36x7 |
| H1 | ShaftΦ42,splined tooth 8-42x36x7 |
| P | ShaftΦ40,splined tooth 6-42x35x10 |
| P1 | ShaftΦ35,splined tooth 6-435x29x10 |
| T1 | Cone-shaft 1:8 Φ45,parallel key |
| 1.13X11.13X31.75 |
Applications
• Wood products
Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing 'Xeriwell' Hydraulics.
we will do our best to serve you!

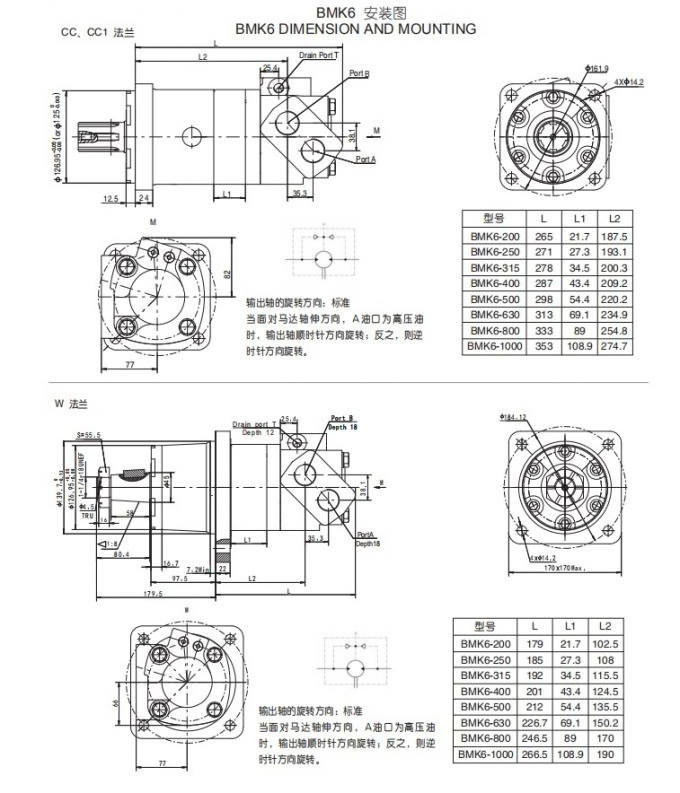

| 型号 | L | L1 | L2 |
| BMK6-200 | 265 | 21.7 | 187.5 |
| BMK6-250 | 271 | 27.3 | 193.1 |
| BMK6-315 | 278 | 34.5 | 200.3 |
| BMK6-400 | 287 | 43.4 | 209.2 |
| BMK6-500 | 298 | 54.4 | 220.2 |
| BMK6-630 | 313 | 69.1 | 234.9 |
| BMK6-800 | 333 | 89 | 254.8 |
| BMK6-1000 | 353 | 108.9 | 274.7 |
| 型号 | L | L1 | L2 |
| BMK6-200 | 179 | 21.7 | 102.5 |
| BMK6-250 | 185 | 27.3 | 108 |
| BMK6-315 | 192 | 34.5 | 115.5 |
| BMK6-400 | 201 | 43.4 | 124.5 |
| BMK6-500 | 212 | 54.4 | 135.5 |
| BMK6-630 | 226.7 | 69.1 | 150.2 |
| BMK6-800 | 246.5 | 89 | 170 |
| BMK6-1000 | 266.5 | 108.9 | 190 |
