| Quantity: | |
|---|---|
BMK6
Xeriwell or Others
| Type: | Hydraulic Low Speed High Torque Motor | Manufacturer: | Xeriwell |
|---|---|---|---|
| Model No.: | 6k Motor | Size: | 400ml/r, 500ml/r, 630ml/r, 1000ml/r |
| Max.torque(N.m): | Cont.1160N.m/int.1625N.m | Max.speed(rpm): | Cont.382rpm/int.570rpm |
| Highlight: | 112-1062 eaton 6000 series motor,harvester eaton 6000 series motor | ||

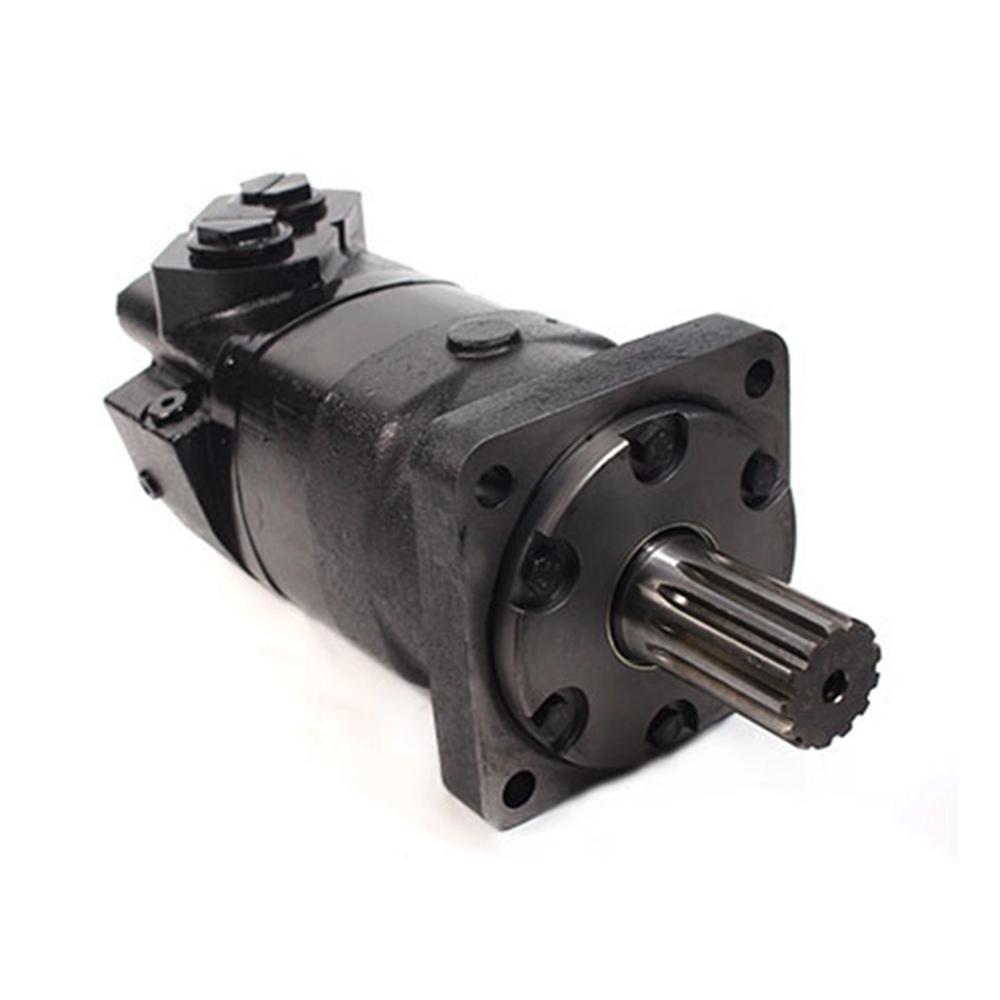

EATON 6000 Series Motor 112-1062 JOHN DEERE CH570 Sugar Cane Harvester Parts
Xeriwell technology supply hydraulic low speed high torque motors, BMK6 Series motors,
equals eaton charlynn 6000 series geroler motors, widely used on sugar cane harvesters,
like John deere CH570, same quality, same performance
Model number: BMK6
Replace Char-lynn motor 6000 Series
Displacement: 500cc
Flange: 4x13.5 Square flange
Pilot: 127x12.5
Mounting distance: 161.9
Shaft: 38.1mm spline shaft, 17-DP12/24
Port:3/4’’ 8X3/8-16UNC
Drain port: 7/16-20 UNF
Paint: Black
Main Specification
| Type | BMK6 200 | BMK6 250 | BMK6 315 | BMK6 400 | BMK6 500 | BMK6 630 | BMK6 800 | BMK6 1000 | |
| Geometric displacement (cm3 /rev.) | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | |
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | |
| Part Number | Displacement cm³/rev (in⊃3;/rev) |
| 112-1058-006 | 195 (11.9) |
| 112-1059-006 | 245 (15.0) |
| 112-1060-006 | 310 (19.0) |
| 112-1061-006 | 390 (23.9) |
| 112-1062-006 | 490 (30.0) |
| 112-1109-006 | 625 (38.0) |
| 112-1063-006 | 985 (60.0) |
| Type: | Hydraulic Low Speed High Torque Motor | Manufacturer: | Xeriwell |
|---|---|---|---|
| Model No.: | 6k Motor | Size: | 400ml/r, 500ml/r, 630ml/r, 1000ml/r |
| Max.torque(N.m): | Cont.1160N.m/int.1625N.m | Max.speed(rpm): | Cont.382rpm/int.570rpm |
| Highlight: | 112-1062 eaton 6000 series motor,harvester eaton 6000 series motor | ||
