  • 400300W3820AAAAAS

  • Xeriwell or Others

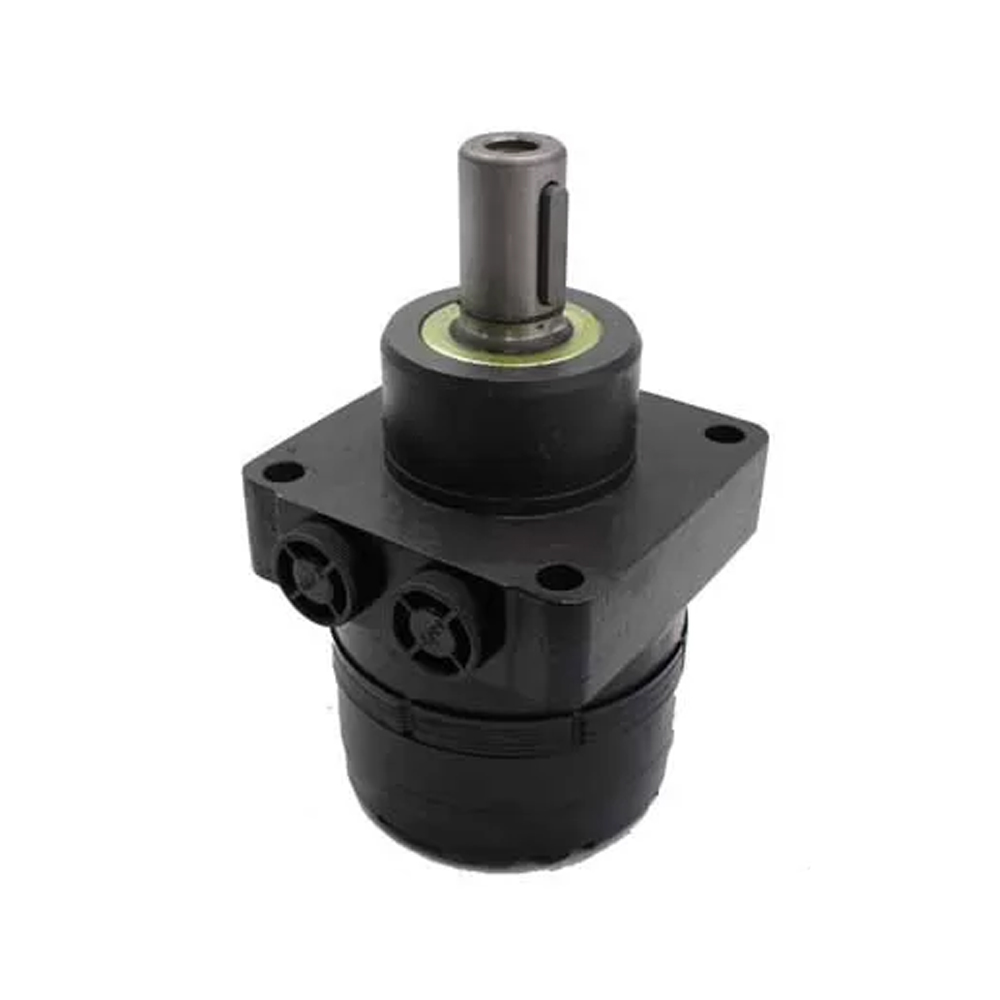

Item: Orbit Hydraulic Motor OEM #: 400300W3820AAAAAS
Manufacturer: Xeriwell Displacement: 300 Ml/r

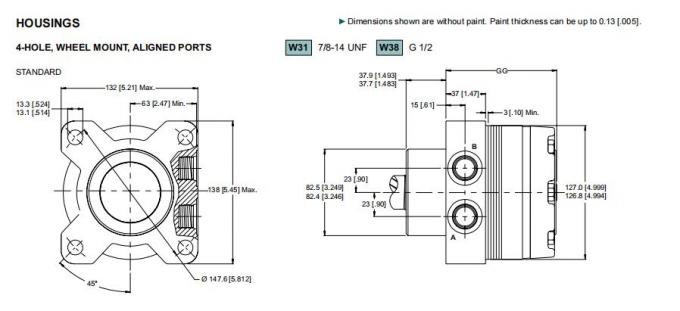

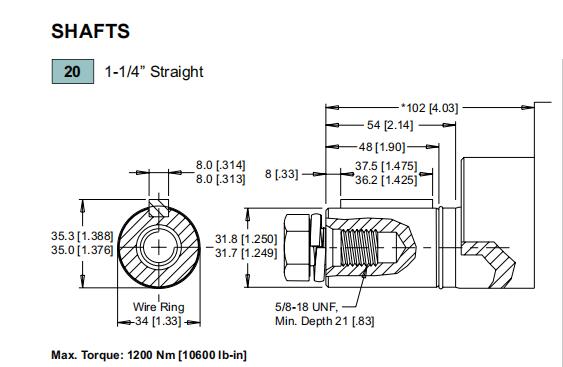

Mounting Flange: 4-hole Wheel Flange Shaft Type: Cylindrical
Highlight:

11199923 danfoss hydraulic motor

,

400 serie danfoss hydraulic motor

,

ce danfoss orbital hydraulic motor


Danfoss 11199923 CE 400 Serie 300 Hydraulic Motor Similar Type

These Danfoss 400 series hydraulic motors are similar types to Danfoss, no made by Danfoss. They are for Medium Duty Applications, like Medium-duty wheel drives, grapple heads, feed rollers, broom drives and more.

Specifications:

CODE 300
Displacement
cm3 [in
3/rev]
300 [18.3]
Max. Speed  rpm  cont. inter.
250 / 320
Max. Flow lpm  cont. inter. 76 [20] /  95 [25]
Max. Torque N*m   cont. inter. 802 [7100] / 862 [7630]

The combination of compact size, light weight and low speed efficiency make the motor the best wheel drive motor available. To reduce overall motor length and weight, all unnecessary material was removed from the housing and the valve was placed in the face of the rotor. The pressure compensated balance plate allows the motor to maintain high volumetric efficiences at startup and high mechanical efficiencies during running conditions. All of these features unite to make the CE Series motor 10-25% lighter and more compact than competitive designs, making it perfect for applications with strict weight and size requirements.
