| Quantity: | |
|---|---|
109-1212-006
Xeriwell or Others
| Item: | Disc Geroler Motors | Model: | 109-1212-006 Replacement |
|---|---|---|---|
| Manufacturer: | Xeriwell | Brand: | Xeriwell |
| Feature: | Standard Mount Motor | Displacement: | 492.6 Ml/r |
| Mounting: | 4 Bolt | Shaft: | 31.75mm |
| Port: | Staggered Ports | Warranty: | 12 Month |
| Highlight: | 109-1212-006 charlynn hydraulic motor,interchange charlynn hydraulic motor,4 bolt char lynn motor | ||
Quick review:

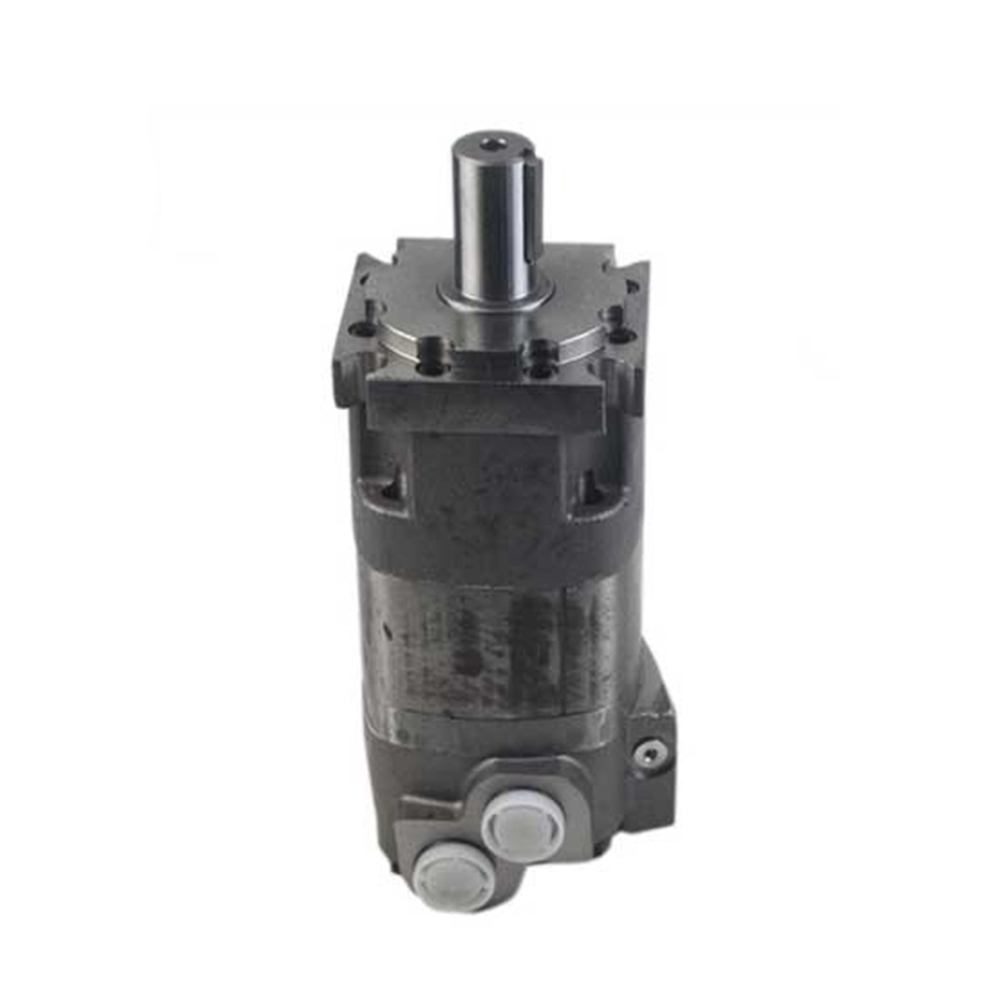

109-1212-006 Charlynn Interchange Hydraulic Motor, 4 bolt, 492.6 ml/r, 31.75mm
Features:
This motor is a Charlynn 109-1212-006 replacement motor with same form, fit and function
Specs:
| Feature | Description |
| PRODUCT | MOTOR |
| SERIES | 4000 SERIES |
| DISPLACEMENT | 492.6 CM3/R [30.06 IN3/R] |
| MOUNTING TYPE | STANDARD, 4 BOLT; 101.60 [4.000] PILOT DIA 14.7 [.58] SLOTS ON 127.00 [5.000] DIA.BOLT CIRCLE. (SAE B) |
| OUTPUT SHAFT | 31.75 [1.250] DIA. STRAIGHT WITH .375-16UNC-2B THREAD, 53.1 [2.09] MAX COUPLING LENGTH, 7.938 [.3125] SQ X 41.27 [1.625] STRAIGHT KEY |
| PORTS | 1.0625-12 UN-2B SAE O-RING PORTS - STAGGERED PORTS |
| FLOW OPTIONS | .4375-20 UNF-2B SAE O-RING PORT WITH CHECK VALVE |
| LOW PRESSURE RELIEF | NONE |
| PRESSURE/FLOW OPTION | NONE |
| GEROLER OPTION | STANDARD |
| SEAL OPTION | STANDARD |
| ACCESSORIES | NONE |
| SPECIAL FEATURES (HARDWARE) | NONE |
| SPECIAL FEATURES (ASSEMBLY) | NONE |
| PAINT/PACKAGING | NO PAINT, INDIVIDUAL BOX |
| CUSTOMER IDENTIFICATION | NONE |
| DESIGN CODE | SIXTH |
