109-1120-006
Xeriwell or Others
| Features: | Eaton Replacement | Item: | Disc Vlave & Spool Valve Motors |
|---|---|---|---|
| Type: | Disc Geroler Standard | Series: | 109-1120-006 |
| Manufactuerer: | Xeriwell | Origin: | China |
| Highlight: | 109-1120-006 Geroler Motor,Disc Geroler Motor Replacement,Eaton Replacement Geroler Motor | ||
Quick review:

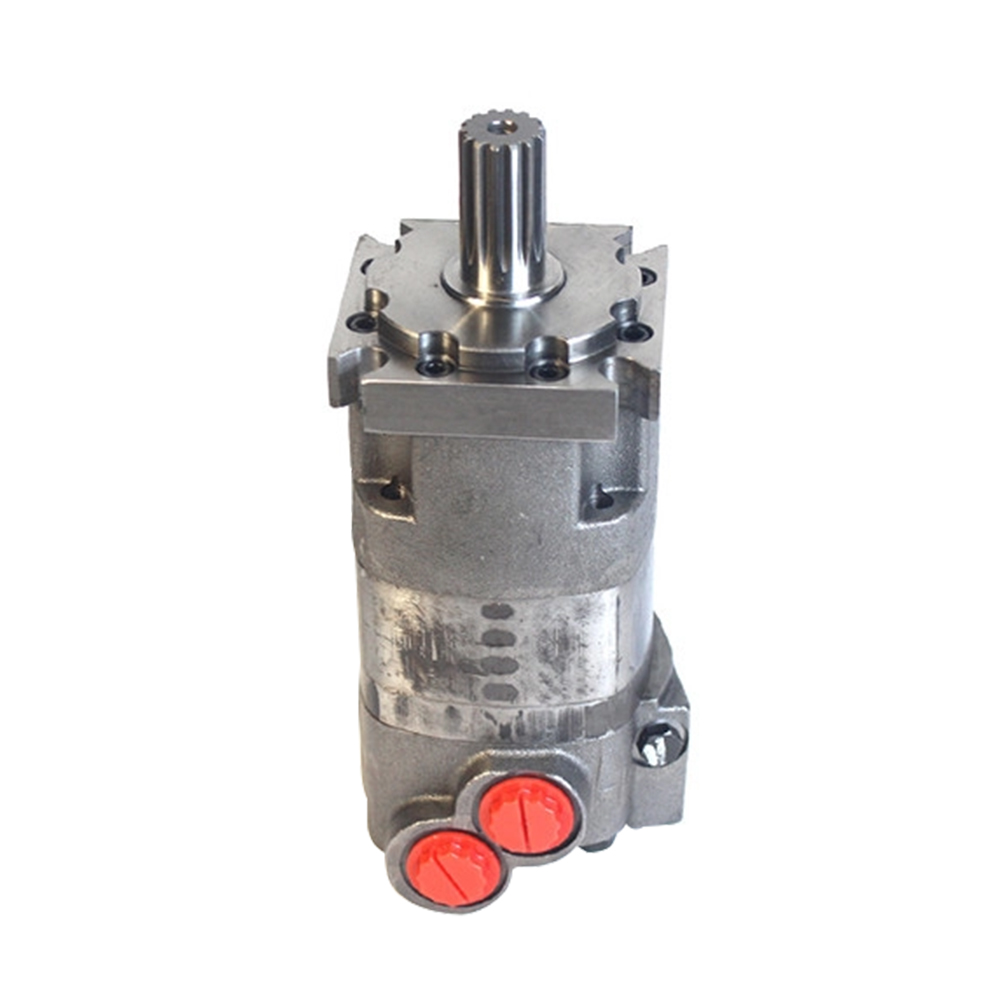

109-1120-006
M04240AB03AB02000000000000000F
Disc Motor
Geroler
Disc Valve
7/8-14 SAE O-Ring Port
24.04 Cubic Inch Displacement Per Rev
Description:
The 4000 Series Char-Lynn motor replacement with same form, fit and functions, packs over 60 peak hp into a small frame motor. Features include nine displacements, four mounting styles, and six different output shafts.
Specification:
| Series | 4000 - Standard |
| Displacement | 24.04 in⊃3;/r |
| Mounting Type | 4-Bolt Flange - 4 in Pilot - SAE B |
| Shaft Type | Splined |
| Output Shaft Size | 1-1/4 in 14T Spline |
| Overall Height | 5.84 in |
| Overall Length | 11.28 in |
| Overall Width | 5.84 in |
| Seal Type | Standard |
| Operation Mode | Continuous Rating - Motor May Be Run Continuously At These Ratings. / Intermittent Operation - 10 Percent Of Every Minute / Peak Operation - 1 Percent Of Every Minute |
| Drain Connection Size | .4375-20 Unf-2b O-ring Port Size -4 With Check Valve |
More Eaton Char-Lynn Hydraulic motor 4000 series replacement
109-1001-006
109-1003-006
109-1052-006
109-1100-006
109-1101-006
109-1102-006
109-1103-006
109-1104-006
109-1105-00
109-1106-006
109-1114-006
109-1115-006
109-1116-006
109-1117-006
109-1118-006
109-1119-006
109-1158-006
109-1173-006
109-1212-006
109-1215-006
109-1233-006
109-1234-006
109-1236-006
109-1238-006
109-1245-006
109-1246-006
109-1264-006
109-1363-006
109-1450-006
109-1453-006
109-1543-006
110-1092-006
110-1093-006
