| Quantity: | |
|---|---|
4000 series
Xeriwell or Others
| Item: | Disc Geroler Motors | Material: | Cast Iron |
|---|---|---|---|
| Direction Of Rotation: | Reversible | Fastening: | 4 Bolts Standard Type |
| Maximum Pressure: | 3500 Bar | Charlynn Code: | 109-1003 |
| Highlight: | 4 bolt Disc geroler motor,109-1003-006 Hydraulic Motor,Char-Lynn 4000 Series Hydraulic Motor | ||

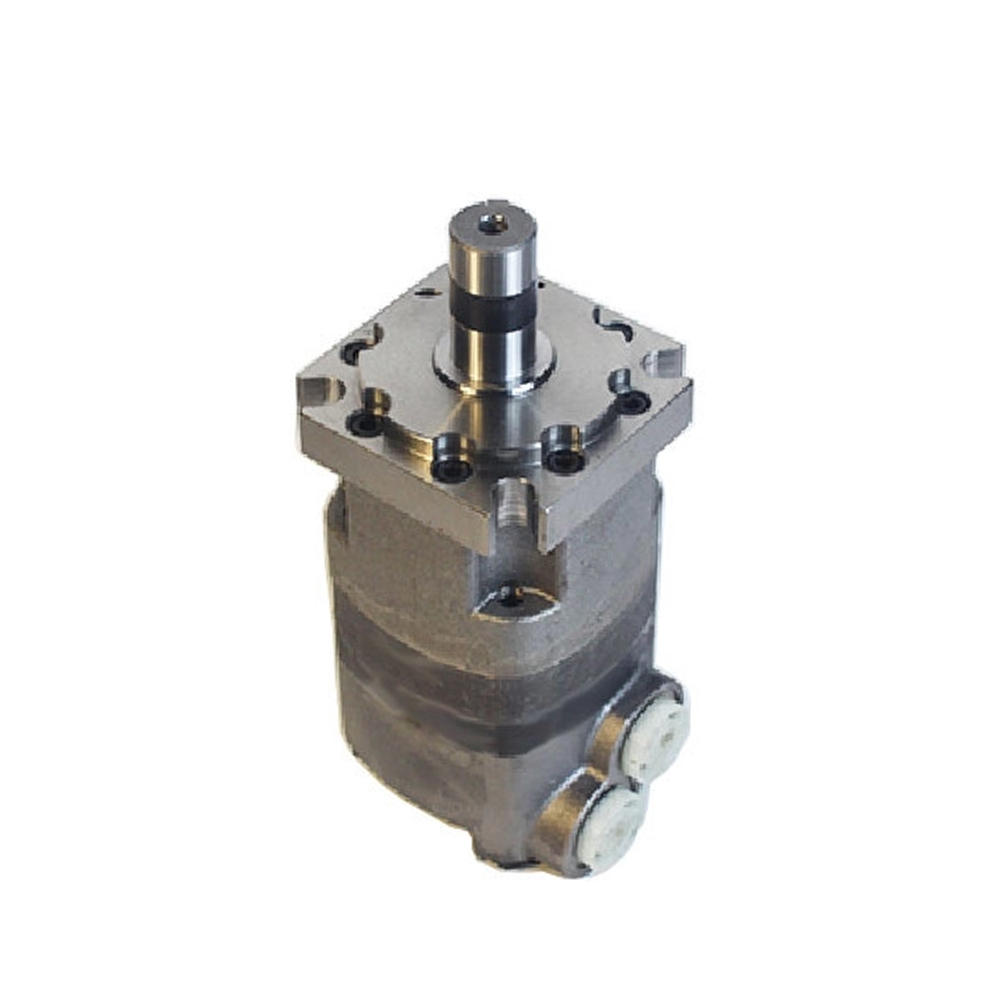

109-1003-006 Char-Lynn 4000 Series Hydraulic Motor 4 bolt Disc geroler motor
Product details:
Disc Motor
Geroler
Disc Valve109-1003-006 Char-Lynn 4000 Series Hydraulic Motor
Main Specifications:
| TYPE | BMK4 | BMK4 | BMK4 | BMK4 | BMK4 | BMK4 | |
| 160 | 200 | 250 | 315 | 400 | 500 | ||
| Displacement(ml/r) | 159.2 | 195.6 | 246.1 | 311.6 | 391.3 | 490.8 | |
| Max.speed(rpm) | cont. | 560 | 440 | 300 | 234 | 188 | 155 |
| int. | 670 | 535 | 450 | 351 | 282 | 232 | |
| Max.Pressure.Drop(Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 20 |
| int. | 30 | 30 | 30 | 30 | 30 | 27.5 | |
| peak. | 30 | 30 | 30 | 30 | 30 | 30 | |
| Max.Torque(N.m) | cont. | 450 | 565 | 710 | 920 | 1160 | 1445 |
| int. | 680 | 855 | 1080 | 1325 | 1625 | 1880 | |
| Max.Flow(cont.)(L/min) | cont. | 95 | 95 | 150 | 150 | 150 | 150 |
| int. | 115 | 115 | 205 | 225 | 225 | 225 | |
| Weight(kg) | 26.3 | 26.5 | 26.8 | 27.3 | 28 | 28.8 | |
