| Item: | Geroler Motor | Model: | 105-1002 |
|---|---|---|---|
| Fastening: | 4 Bolt | Port: | Staggered Ports |
| Shaft: | Taper | Flange: | Wheel |
| Highlight: | 105-1002-006 LSHT hydraulic motor,105-1002 2000 LSHT hydraulic motor,LSHT motor wear resistance | ||

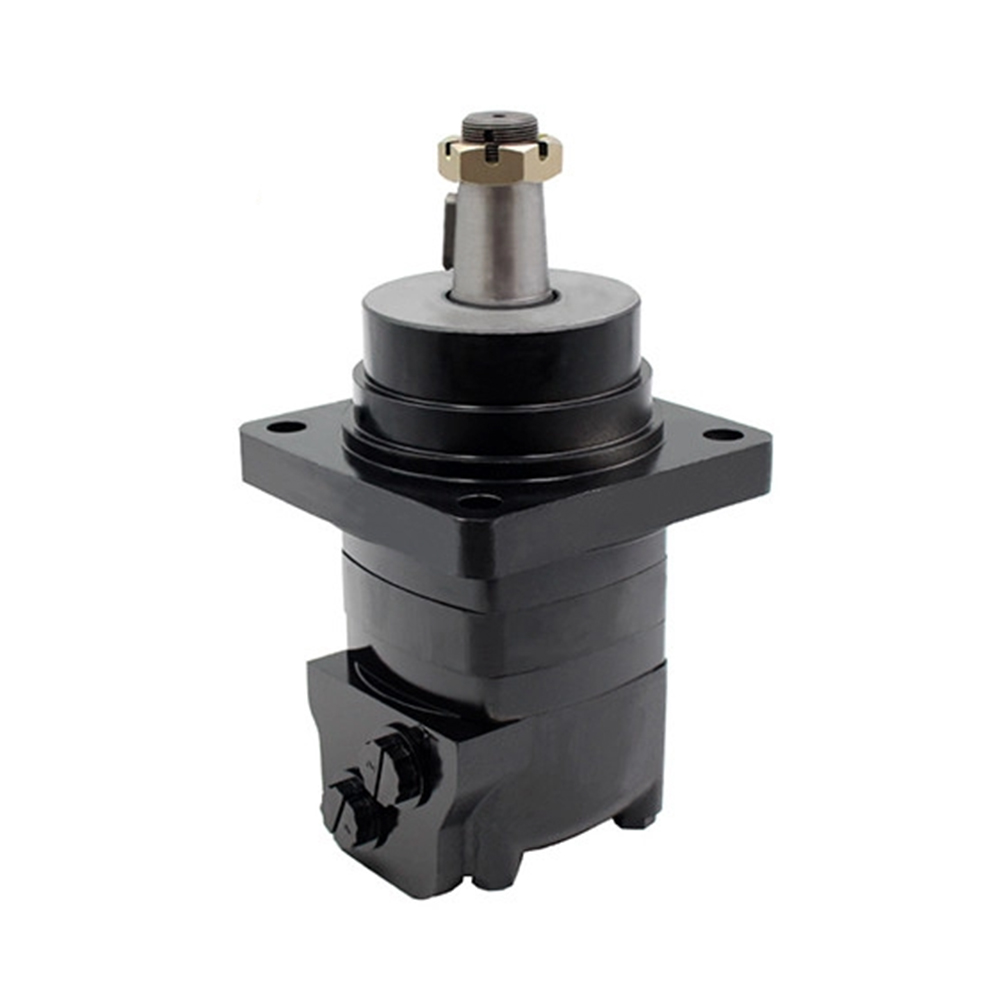

105-1002-006 105-1002 2000 Series Low Speed, High Torque (LSHT) Geroler Disc Motor
Replace Part Number:
105-1002-006, 1051002006, 105-1002, 1051002
Applications:
Fit for Eaton Char-Lynn: 2000 Series
Product information:
Drop in equivalent to for CharLynn 105-1002-006 low speed, high torque hydraulic motor.
| displacement | 6.15 cu. in. / rev . |
| Maximum pressure | 2576 PSI continuous. |
| Torque | 2124 in-lb. continuous. |
| Maximum speed | 748 RPM continuous. |
| Flow rate | 34.0 GPM. |
| shaft | 1-1/4" tapered diameter with keyway. |
| ports | 7/8-14 SAE |
| flange | Wheel mount |
