| Quantity: | |
|---|---|
104-1217-006
Xeriwell or Others
| Type: | Hydraulic Drive Motor | Manufacturer: | Xeriwell |
|---|---|---|---|
| Model No.: | BMK2 | Size: | 100 Ml/r |
| Replace: | Char-lynn 2000 Series | Flange: | 2-bolt Flange |
| Shaft: | 13 Teeth Spline Shaft | Oil Port: | 7/8-14UNF |
| Drain : | 7/16-20UNF | Application: | Harvester Drive Motor |
| Highlight: | 104 1217 006 low speed high torque hydraulic motors,bms low speed high torque hydraulic motors,geroler motor bms | ||

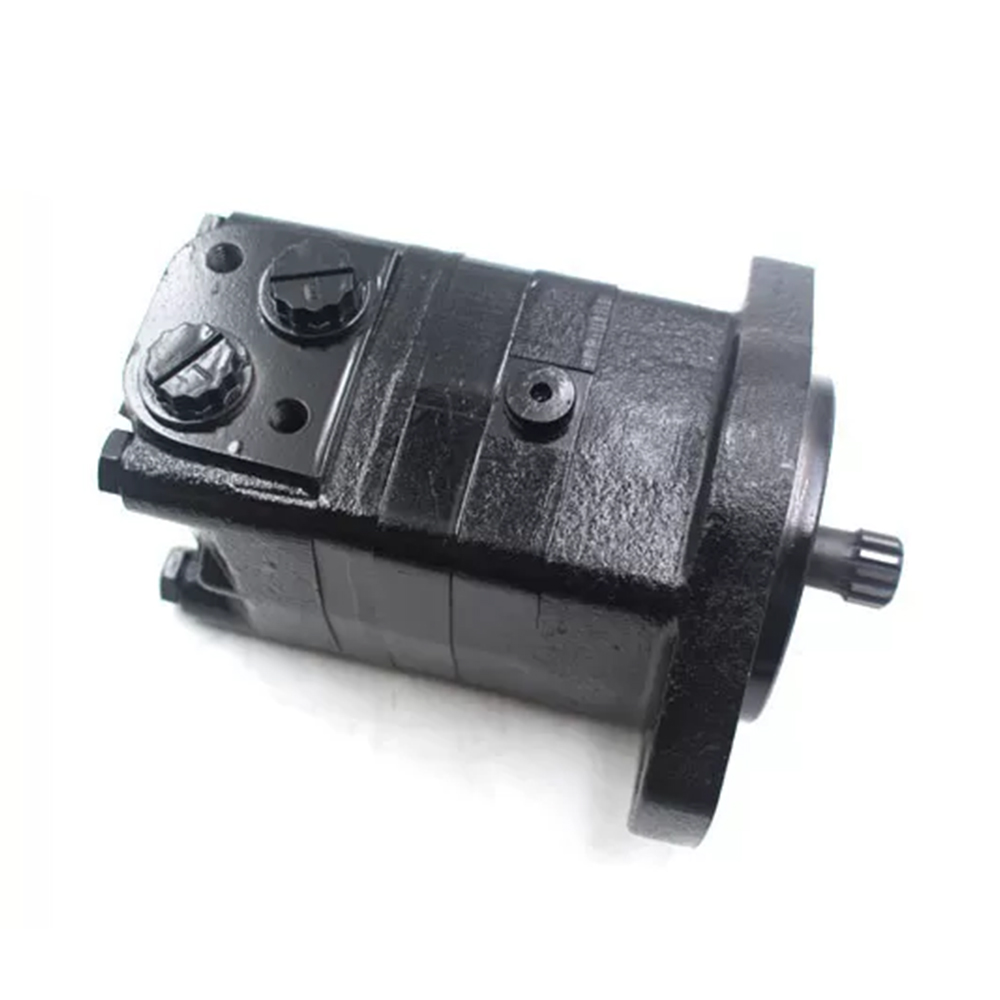

Low-Speed High-Torque Hydraulic Motors 104-1217-006 BMS Geroler Disc Valve Motor
Product details
| 1, | model number | BMK2 |
| 2, | displacement | 100 ml/r |
| 3, | flange | 2- hole φ101.6X9.4 |
| 4, | shaft | 13-DP16/32 |
| 5, | oil port | 7/8-14UNF |
| 6, | drain | 7/16-20UNF |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | 104-1217-006 |
The Disc valve motors or Geroler motors come in several different series, the 2000, 4000, 6000, & 10000 series replacement. These motors which are commonly found on brush mowers, harvesting equipment, trenchers, forestry equipment, and turf equipment. Disc valve motors are used where there is high side load as well as having low pressure drops. With all series having many different displacements selecting a motor for your specific application is simple.
The Spool valve motors or Geroler motors are high quality motor for small general applications. The series includes the J, H, S, T, and W series replacement. Spool valve motors are commonly found on augurs, conveyors, machine tools, food processing equipment etc. These motors are ideal for low-flow and low-speed applications. With a vast spectrum of applications with varying requirements Xeriwell Hydraulics is poised to supply Char Lynn Motor Cross Reference replacement motors to meet these demands.
These motors reach high levels of excellence, Xeriwell provides the perfect solution. These motors are built to last on your equipment, so whether you are manufacturing equipment or just want to replace an existing motor, contact Xeriwell sales team for more information.
