104-1027-006 Orbit Hydraulic Motor 2000 Series Standard 244.3 Cm³/R Max Geometric Displacement
You are here: Home » Products » Hydraulic Motor » Ungrouped » 104-1027-006 Orbit Hydraulic Motor 2000 Series Standard 244.3 Cm³/R Max Geometric Displacement

loading

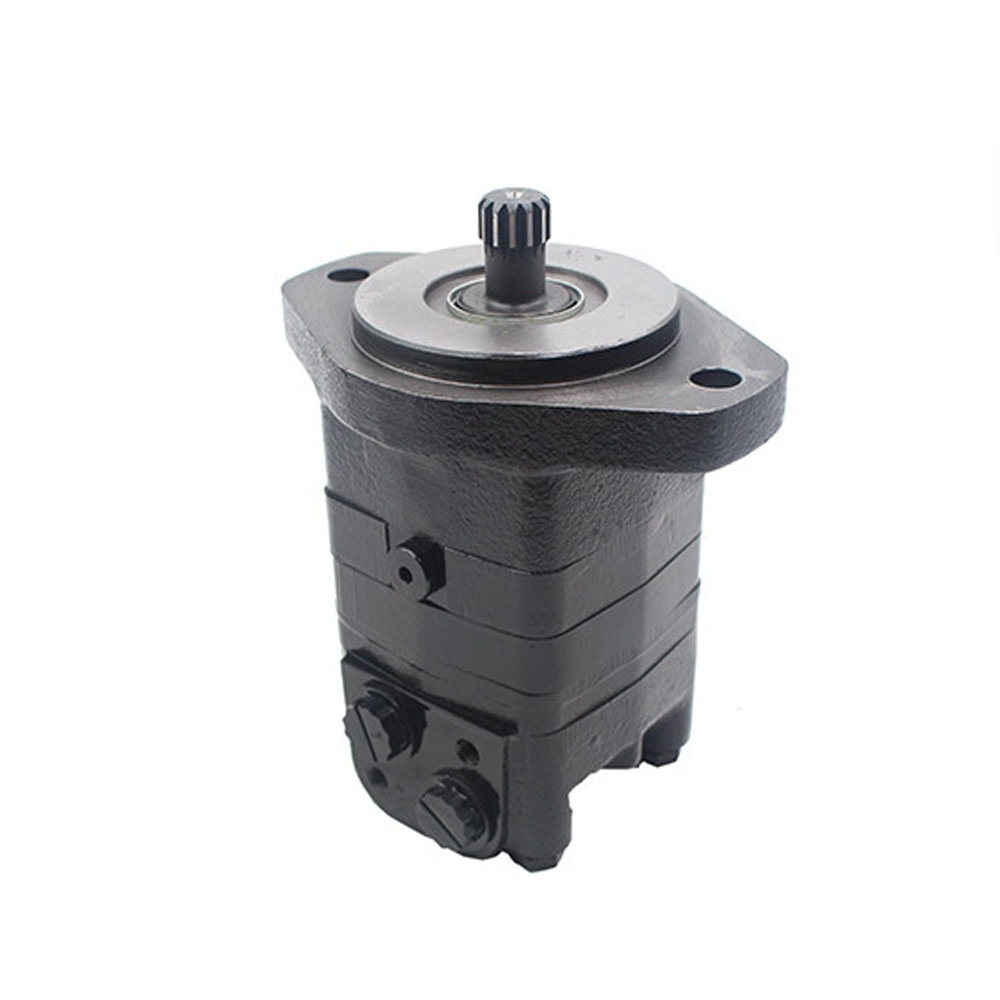

104-1027-006 Orbit Hydraulic Motor 2000 Series Standard 244.3 Cm³/R Max Geometric Displacement

Pictures are for display only, please contact us to choose the right product for you.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • 104-1027-006

  • Xeriwell or Others

Item: Hydraulic Geroler Disc Valve Motor OEM #: 104-1027-006,
Manufacturer: Xeriwell
Displacement: 244.3ml/r
Mounting Flange: 2-hole Wheel Flange Shaft Type: Straight
Highlight:

104-1027-006

,

104-1027-006 orbit hydraulic motor

,

2000 series orbit hydraulic motor


104-1027-006, Hydraulic Geroler Disc Valve Motor 2000 series Standard, 244.3 cm³/r Max Geometric Displacement

This is a 104-1027-006 replacement motor.

OVERVIEW

* Three-zone design for longer life and true bi-directionality

* Bearings that meet the highest standards of the industry

* Options to optimize performance in every application

* Integrated crossover relief valve option

* Two-bolt flange: SAE A with 3-1/4" pilot diameter

* drain: 7/16"-20 UNF-2B O-ring port size 4

SPECIFICATIONS

Series 2000 - Standard
Displacement 14.91 in⊃3;/r
Mounting Type 2-Bolt Flange - 3.25 in Pilot - SAE A
Shaft Type Straight
Maximum Operating Temperature 180 °F
Output Shaft Size 1-1/4 in Straight - Straight Key
Seal Type Standard
Drain Connection Size .4375-20 Unf-2b O-ring Port Size -4

Hydraulic
