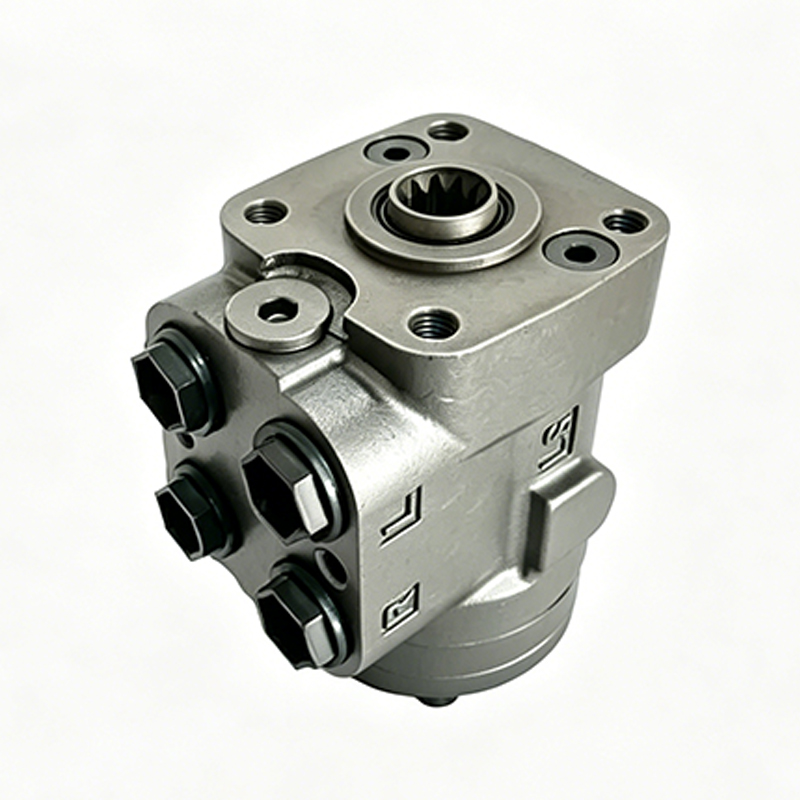

Hydraulic Power Steering CLAAS , Landini Tractor OEM Hydraulic Direction Parts
1. Characteristic Features
♦ Tractor and Combine Harvester OEM Parts Hydraulic Power Steering
♦ Match Hydraulic Direction OSPC , OSPB , OSPF and M+S HKUS , HKU Steering Unit
♦ High pressure oil seal
♦ Precision equipment processing accessories
♦ European and American standard installation
2. Specification
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |

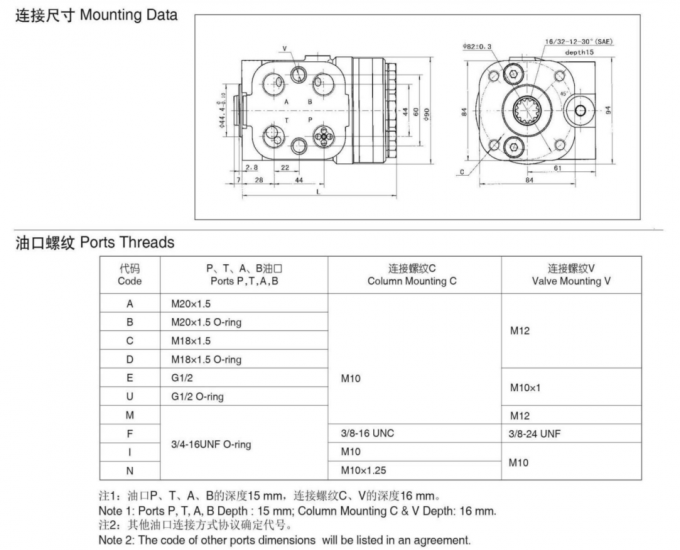

| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
3. Application
Hydraulic Power Steering For Landini Tractor OEM Hydraulic Direction Parts Number
| Landini Tractor Hydraulic Power Steering Units |
| OEM Number : 1809696 | Type Reference : 101-100 ON |
| OEM Number : 3305964 | Type Reference : 101s-50 ON |
| OEM Number : 3305003 | Type Reference : 101s-80 ON |
| OEM Number : 3305002 | Type Reference : 101s-100 ON |
| OEM Number : 3534083 | Type Reference : 101s-100 ON |
| OEM Number : 3552545 | Type Reference : 101s-200 ON |
