| Quantity: | |
|---|---|
101
Xeriwell or Others
| Features: | OSPB, M+S HKU Replacement | Product: | Hydraulic Steering Gear |
|---|---|---|---|
| Size: | Standard | Car Make: | Loader, Tractor Spare Parts |
| HS Code: | 87089410 | Certification: | CE |
| Highlight: | power steering valve,hydraulic steering gear | ||

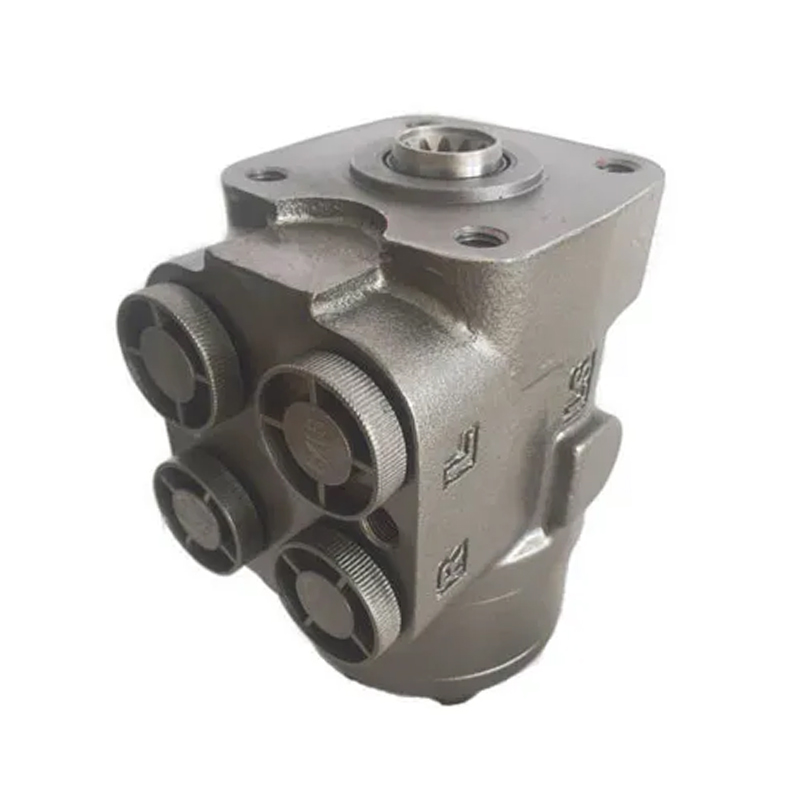

Hydraulic Power Steering 101-100cc ON Orbitrol OSPB/HKU Replacement
Hydraulic Steering Unit 10 Series is integral steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the steering control valve of the integral system. This 101 type steering unit without relief valve and shock valve, 101 series can 100% replace OSPB.
Multi types, sizes, key or splind shafts available:
- Suitable for nearly all kinds of ,Massey Ferguson, Fiat, MTZ, , tractors.
- Different oil port,different types of shaft, different flange can choose.
- Many kinds of displacement, can suitable for any hydraulic systems.
-High quality materials to produceorbitrol steering unit body(Aluminum&Alloy).
-100% replace the OEM parts,70%-80% save cost.

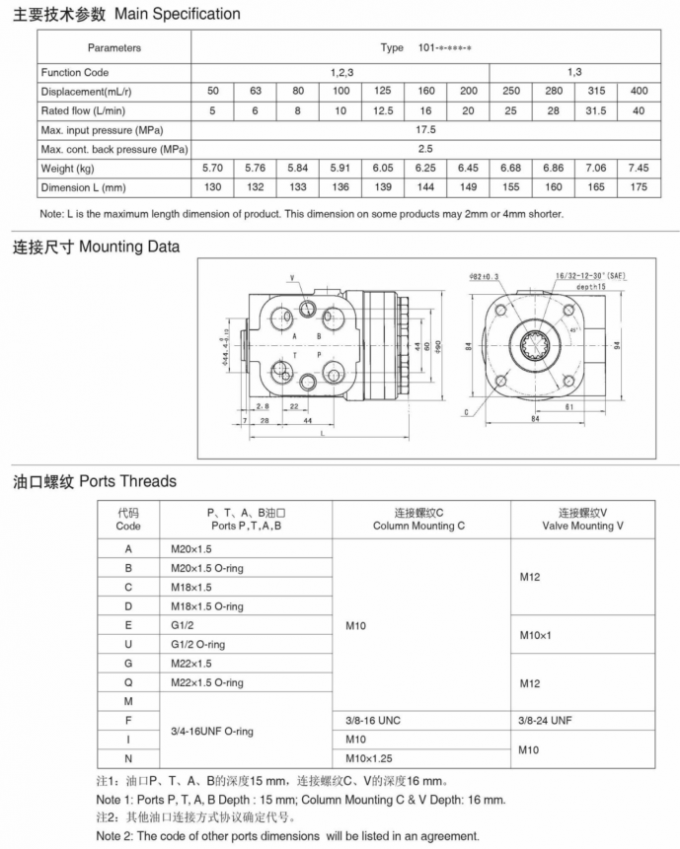

| Parameters | Series 101 | ||||||||||

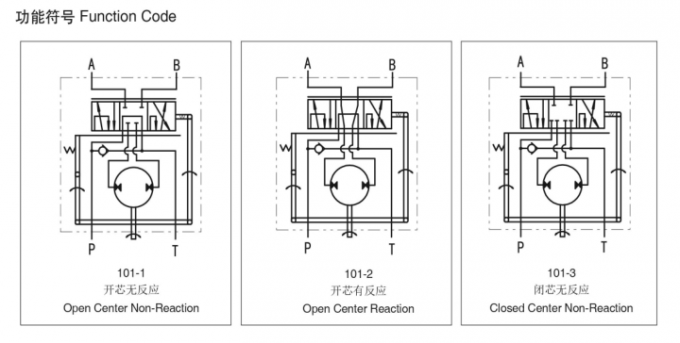

| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Applications:
Hydraulic Steering Control Units (SCU) are widely used in hydraulic rudder of ships, steering of low-speed vehicles, such as forklift , tractor, road roller, combined harvester, loader, excavator, etc.
| Xeriwell Hydraulic | M+S | Eaton | |
| 101 | OSPB | ||
| 101S | OSPC | ||
| 101S-5T | OSPJ | ||
| 102 | HKU | ||
| 102S | HKUS | ||
| 060 | 45 series |
