Hydraulic Power Steering 101S
Xeriwell or Others
| Product Name: | Hydraulic Steering Units | Function: | Open Center Non-reaction, Open Center Reaction, Close Center Non-reaction, Load Sensing/ON/OR/CN/LS/5T |
|---|---|---|---|
| Displacement: | 50-500 | Applications: | Walking Mechanical Steering |
| Replacement: | OSPC, M+S HKUS | Valves: | Relief Valve, Shock Valves, Suction Valves And Check Valve |
| Highlight: | power steering valve,power steering control unit | ||

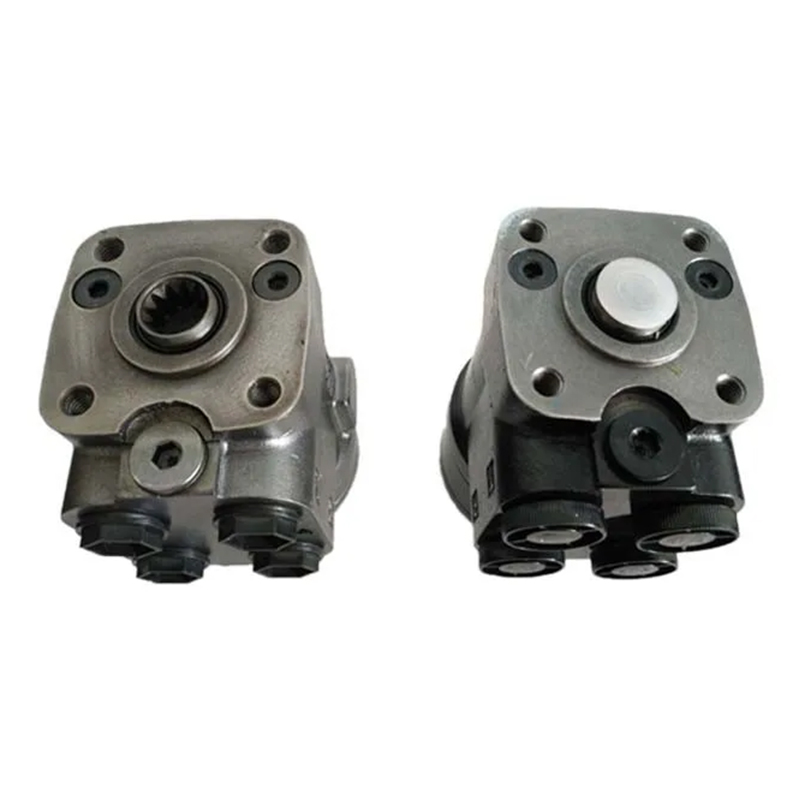

Hydraulic Power Steering 101S 400 For Forklift , Loader, Roadroller , Tractors
Hydraulic Power Steering
101S series PSU incorporated the inlet check valve, safety valve, internal check valve, cylinder port shock valve and anti-cavitation valve. The design is more compact and convenient.
Features:
compact and convenient Low hydraulic noise Special casting design for low pressure drop.

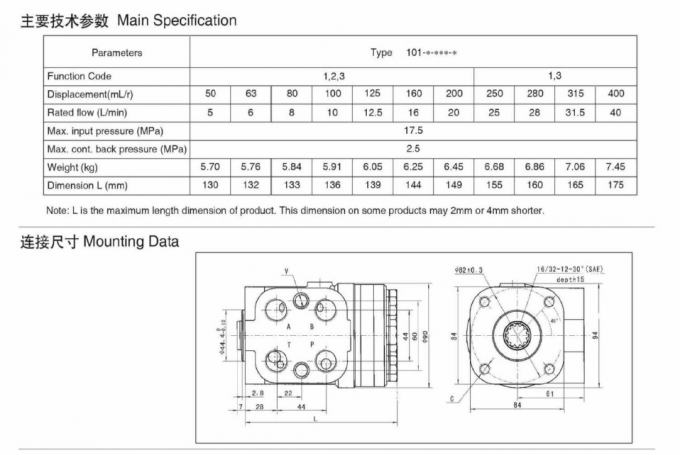

Main Specifications:
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Applications :
Hydraulic Power Steering is widely used in the steering control system and Walking mechanical steering
such as the steering system of many kinds of industrial and agricultural mobile machinery forklift,comebine harvester,loader,roadroller,tractor, etc.
We produce the products match with the OEM number of all machines.
