10.3" Lsht Hydraulic Motor And Nichols Parker Tg0170us010aaaa 1"6b Spline

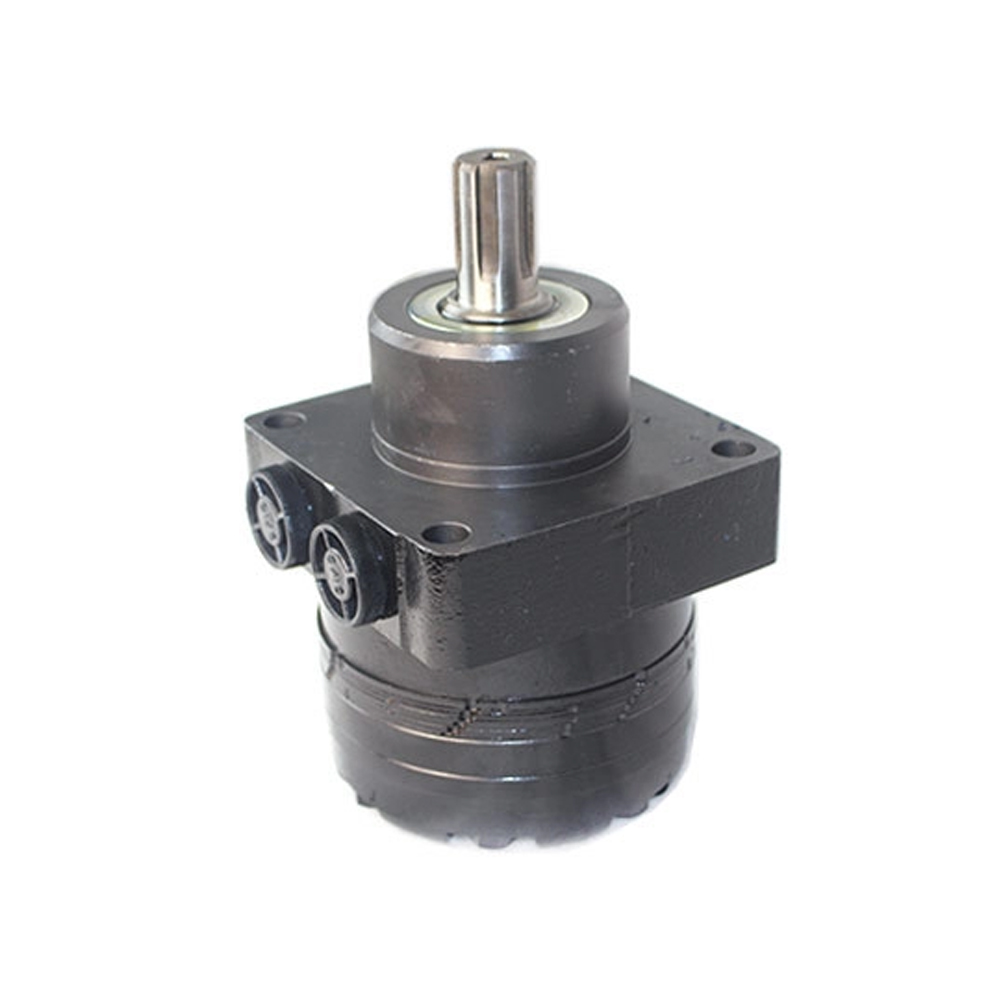

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMER160
Brand:
Xeriwell or Others

Product Description

Item:	Torqmotor	OEM #:	TG0170
Manufacturer:	Xeriwell	Displacement:	160 Ml/r
Mounting Flange:	WHEEL FLANGE	Shaft Type:	1"6B SHAFT
Highlight:	10.3" lsht hydraulic motor , parker lsht hydraulic motor , hydraulic parker lsht motors

10.3"LSHT Torqmotors and Nichols Parker TG0170US010AAAA

1"6B Spline

Details specifications:

Series:	TG
Shaft:	1" 6B SPLINE
Rotation:	Standard
Displacement (cm3/rev):	0170
Mounting:	WHEEL 4 Bolt
Ports:	G1/2
Geometric Displacement:	160 cm3/rev (10.3 in3/rev)
Maximum Speed:	441rev/min
Maximum Oil Flow (continuous / intermittent):	45 lpm (12 gpm) / 57 lpm (15 gpm)
Max. Differential Pressure (continuous / intermittent):	140 bar (2030 PSID) / 190 bar (2750 PSID)
Maximum Supply Pressure:	200 bar (2900 PSID)
Maximum Torque - Continuous / Intermittent:	245 Nm / 335 Nm
Maximum Performance:	14.1 KW (23.4 HP)
Minimum Starting Torque - Continuous / Intermittent:	245 Nm / 335Nm (3637 lb in)
