| Quantity: | |
|---|---|
OMRWN375
Xeriwell or Others
| Product Name: | Hydraulic Gear Motors | Displacement: | OMRWN50,OMRWN80,OMRWN100,OMRWN125,OMRWN160,OMRWN200,OMRWN250,OMRWN315,OMRWN400 |
|---|---|---|---|
| Applications: | Material Handling & Lifting Equipment | Replacement: | OMRWN |
| Hydraulic Valve: | Spool Valve With Needle Bearing | Warranty: | 12months |
| Highlight: | tapered hydraulic wheel motor,omron 375 hydraulic wheel motor,bolt mount hydraulic wheel drive motor | ||

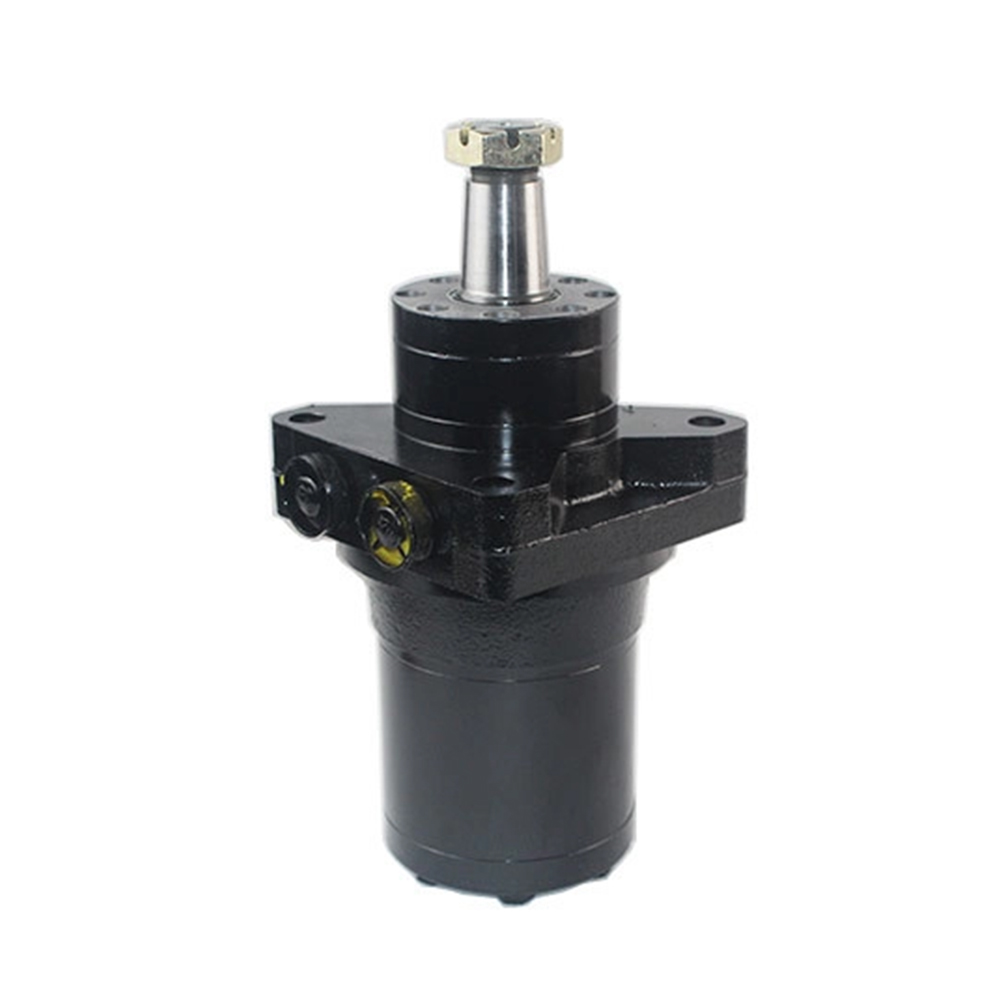

1-1/4" Tapered Hydraulic Wheel Motor OMRW375 Orbit Motor Shaft 4 Bolt Mount
Product details:
Output volume (cc/rev): 375.00
Shaft: 1-1/4" tapered 1:8 threaded shaft
max r.p.m.: 750
Torque max. (Nm): 280
Power max. (kW): 15.0
Inlet pressure (bar): 175
Pressure difference (bar): 175
Volume flow max. (l/min): 60
Shaft seal version: High pressure
Engine version: with non-return valves
Connection: G 1/2"
Leakage oil connection: G 1/4"
L (mm): 123.00
L1 (mm): 20.0
ORDER DETAILS
| Mounting flange: | Wheel | |||||
| shaft size | φ82.55mm | |||||
| bolt circle diameter | φ147.6mm | |||||
| Shaft | Main port size Port style | Drain port | size | High pressure | Check valve | Main type designation |
| Tap. Ø35 mm | G1/2 | side port | G1/4 | yes | yes | BMRWN |
| Tap. Ø 1 1/4 in | 7/8-14 UNF | side port | 7/16-20 UNF | yes | yes | BMRWN |
RELATED DANFOSS TYPE CODE
| Displacement | 50 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 375 |
| Tap. Ø35 mm | 151-6300 | 151-6301 | 151-6302 | 151-6303 | 151-6304 | 151-6305 | 151-6306 | 151-6307 | 151-6308 |
| Tap. Ø 1 1/4 in | 151-6430 | 151-6431 | 151-6432 | 151-6433 | 151-6434 | 151-6435 | 151-6436 | 151-6437 | 151-6438 |

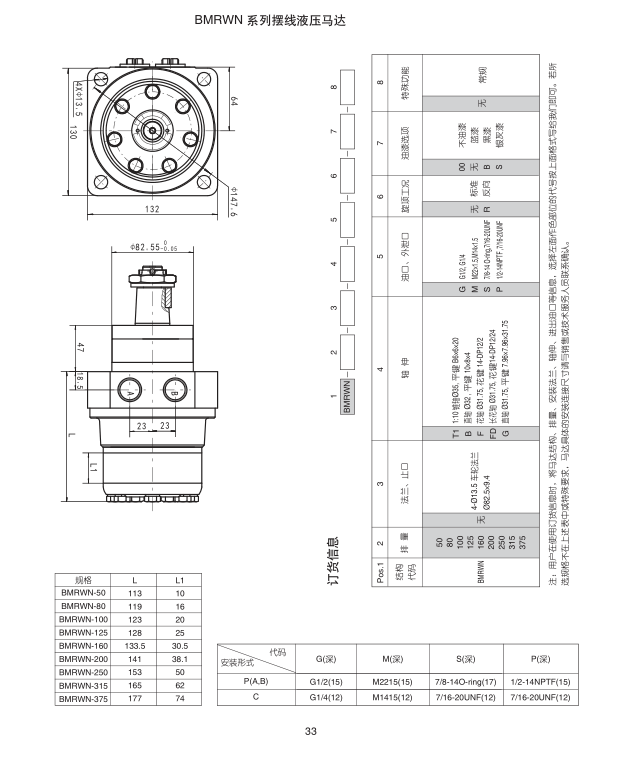

| 规格 | L | L1 |
| BMRWN-50 | 113 | 10 |
| BMRWN-80 | 119 | 16 |
| BMRWN-100 | 123 | 20 |
| BMRWN-125 | 128 | 25 |
| BMRWN-160 | 133.5 | 30.5 |
| BMRWN-200 | 141 | 38.1 |
| BMRWN-250 | 153 | 50 |
| BMRWN-315 | 165 | 62 |
| BMRWN-375 | 177 | 74 |
| 安装形式 代码 | G(深) | M(深) | S(深) | P(深) |
| P(A,B) | G1/2(15) | M2215(15) | 7/8-14O-ring(17) | 1/2-14NPTF(15) |
| C | G1/4(12) | M1415(12) | 7/16-20UNF(12) | 7/16-20UNF(12) |
