BMRWN 100
Xeriwell or Others
| Product Name: | Hydraulic Gear Motors | Displacement: | OMRWN50,OMRWN80,OMRWN100,OMRWN125,OMRWN160,OMRWN200,OMRWN250,OMRWN315,OMRWN400 |
|---|---|---|---|
| Applications: | Agri Machines, Platform Equipments, Lawn And Turf Equipment | Replacement: | OMRWN |
| Hydraulic Valve: | Spool Valve With Needle Bearing | Warranty: | 12months |
| Highlight: | 4 Bolt Mount Hydraulic Wheel Motor,Danfoss Omrw Hydraulic Wheel Motor,4 Bolt Wheel Mount Hydraulic Motor | ||

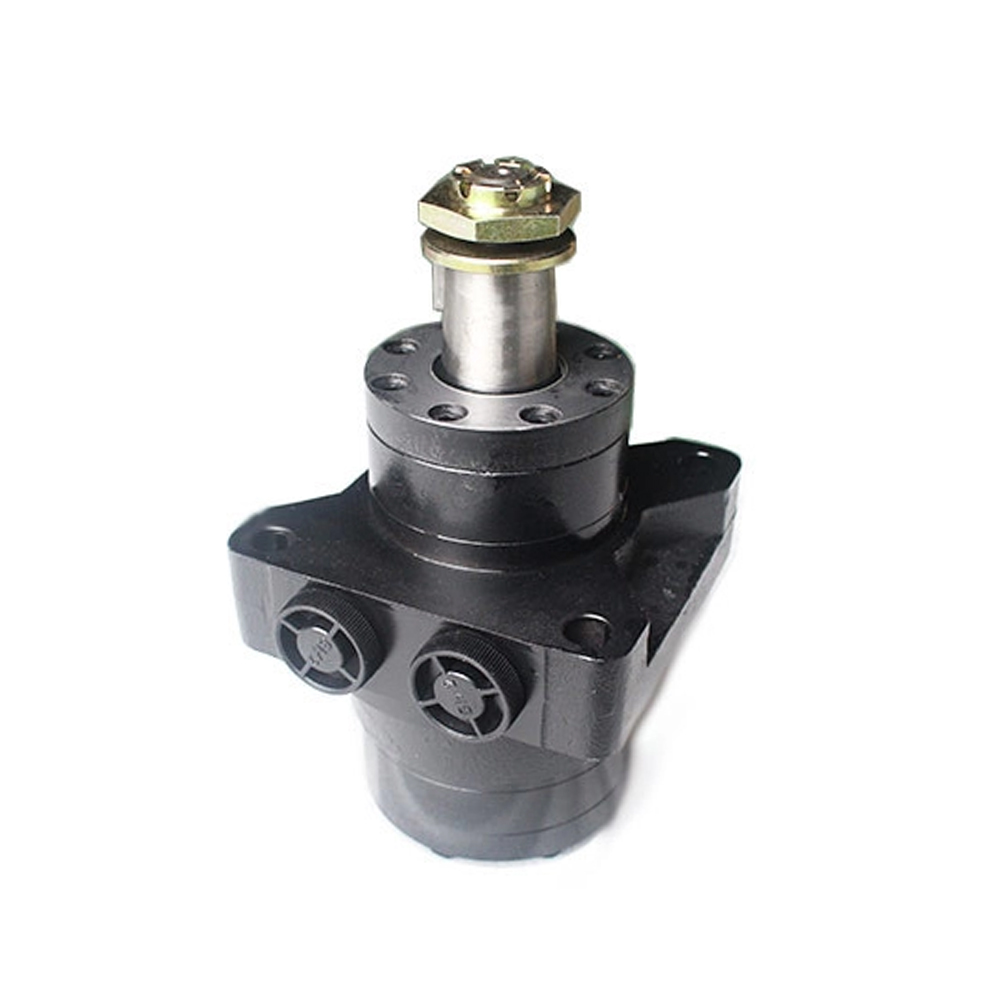

hydraulic wheel motor Danfoss OMRW motor 1-1/4" tapered1:8 threaded shaft, 4-Bolt A mount
Product details:
Output volume (cc/rev): 100.00
Shaft: 1-1/4" tapered 1:8 threaded shaft
max r.p.m.: 750
Torque max. (Nm): 280
Power max. (kW): 15.0
Inlet pressure (bar): 175
Pressure difference (bar): 175
Volume flow max. (l/min): 60
Shaft seal version: High pressure
Engine version: with non-return valves
Connection: G 1/2"
Leakage oil connection: G 1/4"
L (mm): 123.00
L1 (mm): 20.0

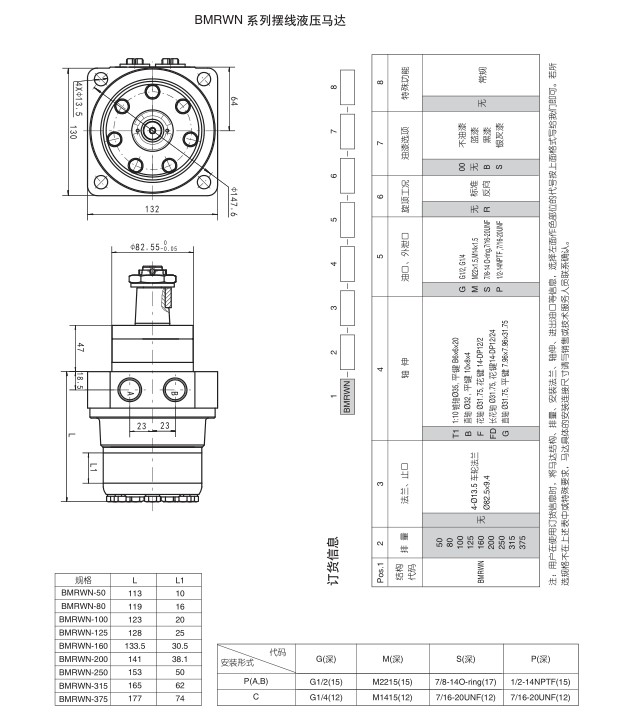

ORDER DETAILS
| Mounting flange: | Wheel | |||||
| shaft size | φ82.55mm | |||||
| bolt circle diameter | φ147.6mm | |||||
| Shaft | Main port size Port style | Drain port | size | High pressure | Check valve | Main type designation |
| Tap. Ø35 mm | G1/2 | side port | G1/4 | yes | yes | BMRWN |
| Tap. Ø 1 1/4 in | 7/8-14 UNF | side port | 7/16-20 UNF | yes | yes | BMRWN |
RELATED DANFOSS TYPE CODE
| Displacement | 50 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 375 |
| Tap. Ø35 mm | 151-6300 | 151-6301 | 151-6302 | 151-6303 | 151-6304 | 151-6305 | 151-6306 | 151-6307 | 151-6308 |
| Tap. Ø 1 1/4 in | 151-6430 | 151-6431 | 151-6432 | 151-6433 | 151-6434 | 151-6435 | 151-6436 | 151-6437 | 151-6438 |
XeriWell is a dedicated provider of hydraulic products, specializing in hydraulic motors, pumps, components, and complete hydraulic systems. Positioned as a trusted supplier to the global market, we focus on delivering innovative and reliable hydraulic solutions that meet the highest standards. With a commitment to serving clients worldwide, XeriWell provides tailored solutions that address the unique hydraulic needs of any region, supporting industries with high-quality, dependable performance.
At XeriWell, we bring extensive expertise to the hydraulic industry, grounded in a deep understanding of industry standards and certifications that ensure top-quality products and services. Our team of specialized hydraulic engineers is well-versed in international standards, rigorously following certifications and guidelines to meet diverse market requirements. With an average of over 10 years of experience, our professionals have the knowledge to handle complex projects and offer fully customizable solutions.
XeriWell offers a comprehensive range of hydraulic products, including hydraulic motors, pumps, components, complete hydraulic systems, and various other hydraulic parts to meet diverse industry needs. In addition to our extensive product line, we provide tailored hydraulic system solutions, designed to meet each client's unique specifications. Our customization services save clients valuable time by eliminating the need to source multiple suppliers, delivering fully integrated and efficient solutions for their hydraulic applications.
XeriWell's core competitive advantage lies in our technical expertise. Unlike standard suppliers, we are a technology-driven company focused not only on sourcing high-quality hydraulic products but also on offering strategic guidance and expert recommendations to our clients. This technical strength, combined with our comprehensive product range and customization capabilities, allows us to deliver hydraulic solutions that truly add value and meet the specific needs of a global clientele.
At XeriWell, our vision is to be a leading global provider of innovative and reliable hydraulic solutions that drive industry progress and customer success. We are committed to excellence, integrity, and customer-centric service, valuing strong partnerships and continuous improvement. Our goal is to empower our clients by delivering high-quality, tailored solutions that meet evolving industry demands, fostering a future where hydraulic technology is seamlessly integrated, efficient, and sustainable for all.
At XeriWell, we offer a comprehensive range of hydraulic components, including hydraulic motors, pumps, accessories, valves and more, with options for both original and high-quality domestic alternatives. Backed by a robust supply chain, we are able to meet the vast majority of our clients'procurement needs, from standard models to non-standard and even discontinued products. Additionally, we provide fully customized services and solutions tailored to specific requirements, ensuring clients receive precisely the products and configurations needed for optimal performance. Our commitment to flexibility and reliability makes XeriWell a trusted partner for all hydraulic sourcing and customization needs.
