| Quantity: | |
|---|---|
060
Xeriwell or Others
| Product: | Hydraulic Steering Valve | Brand: | Xeriwell |
|---|---|---|---|
| Size: | 63cc (50cc, 80cc, 100cc, 125cc, 160cc, 200cc, 250cc, 315cc, 400cc, 500cc Can Provide) | Founction: | ON (Open Center Non Reaction) |
| Valves: | 5 Valves Built Inside | Apply To: | Tractor, Forklift, Loader, Helm Controll, ... |
| Highlight: | power steering valve,hydraulic steering gear | ||

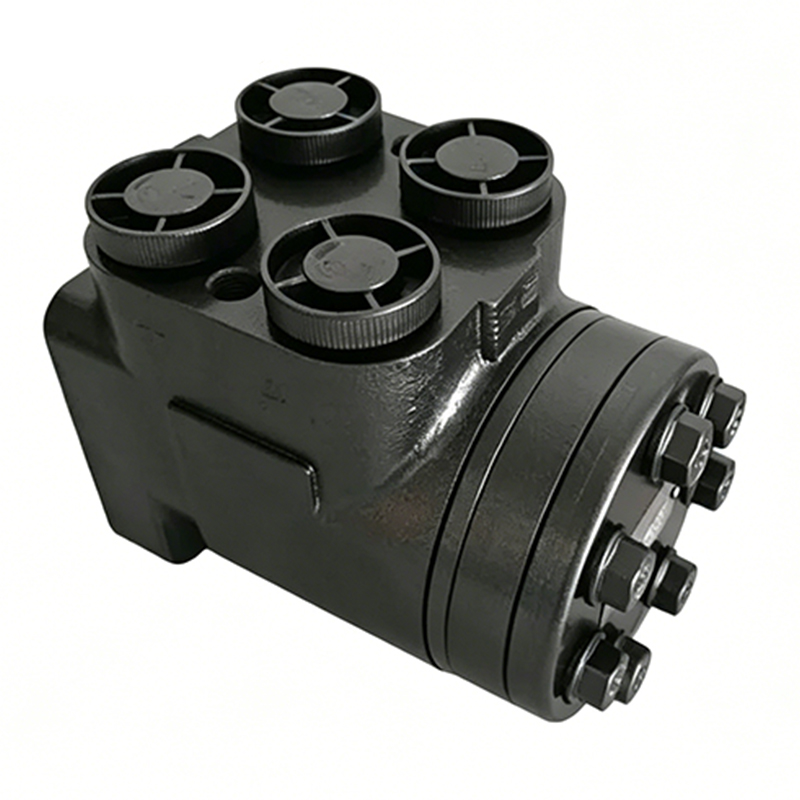

Hydraulic Power Steering 060 Series For Tractor, Harvester, Forklift, Loader
060 series orbital steering valve is with relief valve ,suction valve, inlet check valve intergrated,and different valve can be assembled freely, compact, more convenient, fitting for European and American standards. Widely applied to low speed and heavy vehicles , construction machinery, tractor, forklift, digger, loader, helm control.
060 series hydraulic power steering's shape, internal structure, performance are same as OSPC**ON, M+S HKUS***/4 , Eaton 401-1***, Sinjin N/Y***E
| Product Name | 060 series hydraulic power steering |
| Displacement (ml/r) | 50, 63, 80, 100, 125, 160, 200, 250, 315, 400ml |
| Max, input pressure (MPa) | 17.5 |
| Max.manual steering torque (N.m) | 130 |
| Relief valve pressure settings (MPa) | 6-----17.5 |
| Shock valve pressure settings | 12---23.5 |
| Max. Cont.pressure in line T (MPa) | 2.5 |
| Power steering torque (N.m) | 1.6---204 |
All of Xeriwell's orbital steering valves have a built in return-to-center function. This means that when the driver releases the wheel the tires will automatically return to the center position. This is a convenient feature that allows for slow rock crawling or driving at higher speeds. The amount of turns it takes to get from lock to lock will depend on what ram you combine with your orbital. We have included a chart that will tell you exactly how many turns it will take to get from lock to lock with the different orbital/ram combinations, with the recommended combinations in boldletters.
