| Quantity: | |
|---|---|
060
Xeriwell or Others
| Product Name: | Hydraulic Power Steering 060 | Brand: | Xeriwell |
|---|---|---|---|
| Displacement: | 500cc | Application: | Tractors , Front Loaders,excavators |
| Pressure: | 15mpa | Featurer: | Long Live, Less Licking |
| Highlight: | hydraulic power steering 060,Hydro Steering Wheel 060,500cc hydraulic power steering | ||

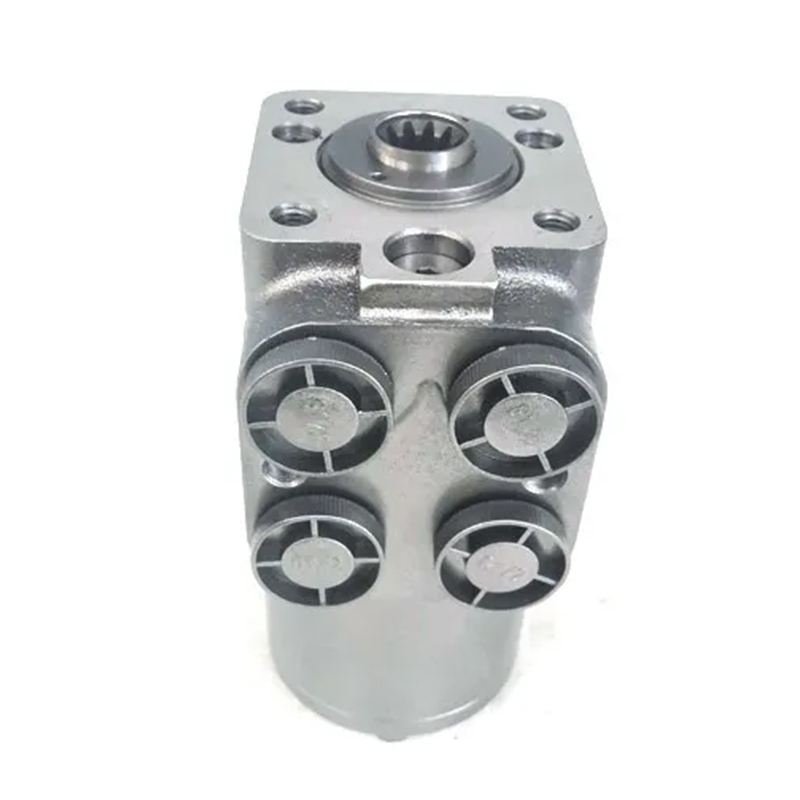

Model 060-500 hydraulic steering wheel fits equipment including T-150, KhTZ, DZ-98, ZTM-216, EO-4321, T-150K and MoAZ.
1. Characteristic Features
060 Hydraulic Power Steering offer the following advantages
► Minimizes steering linkage—reduces cost, provides flexibility in design.
► Provides complete isolation of load forces from the control station—provides operator comfort.
► Provides continuous, unlimited control action with very low input torque.
► Provides a wide selection of control circuits and meter sizes.
► Can work with many kinds of power steering pumps or fluid supply.

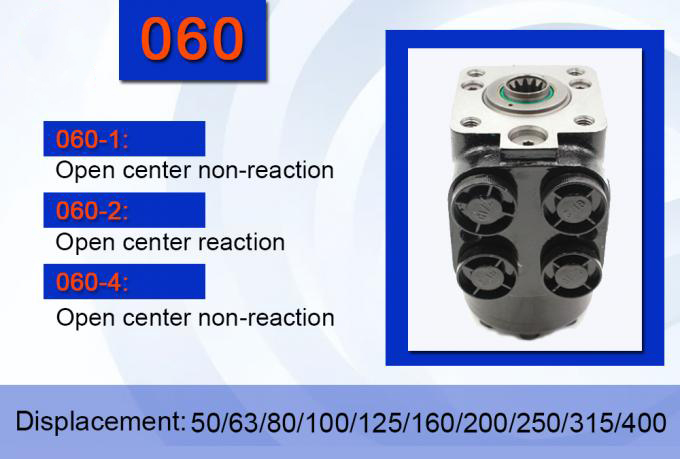

| Parameters | Series 060-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |

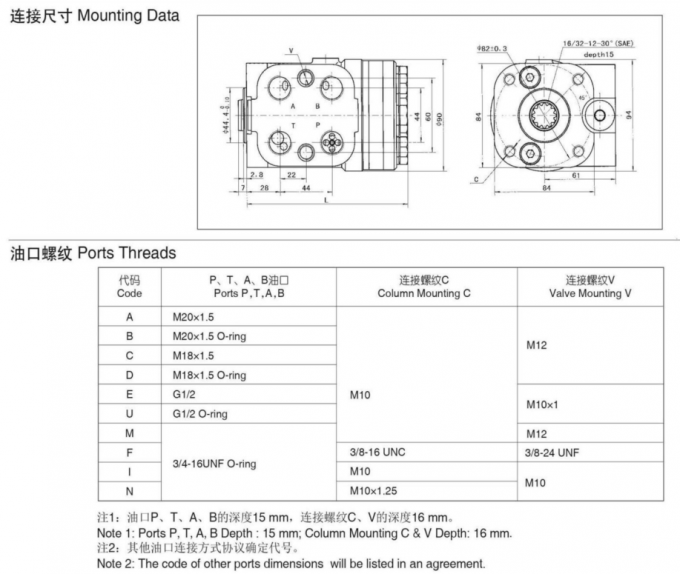

| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
