BMSY-160-E6-FE-S
Xeriwell or Others
| Item: | Hydraulic Motor | Model No.: | BMSY-160-E6-FE |
|---|---|---|---|
| Flange: | 6 Hole | Shaft: | Spline Shaft |
| Ports: | Rear Port | Speed: | 470 - 560 Rpm |
| Torque: | 316-472 Nm | Max Pressure Drop: | 15-21 MPa |
| Max Flow: | 75 - 90 Lpm | ||
| Highlight: | 007320-60005 hydraulic orbit motor,hydraulic orbit motor 007320-60005,007320-60005 orbit motor | ||

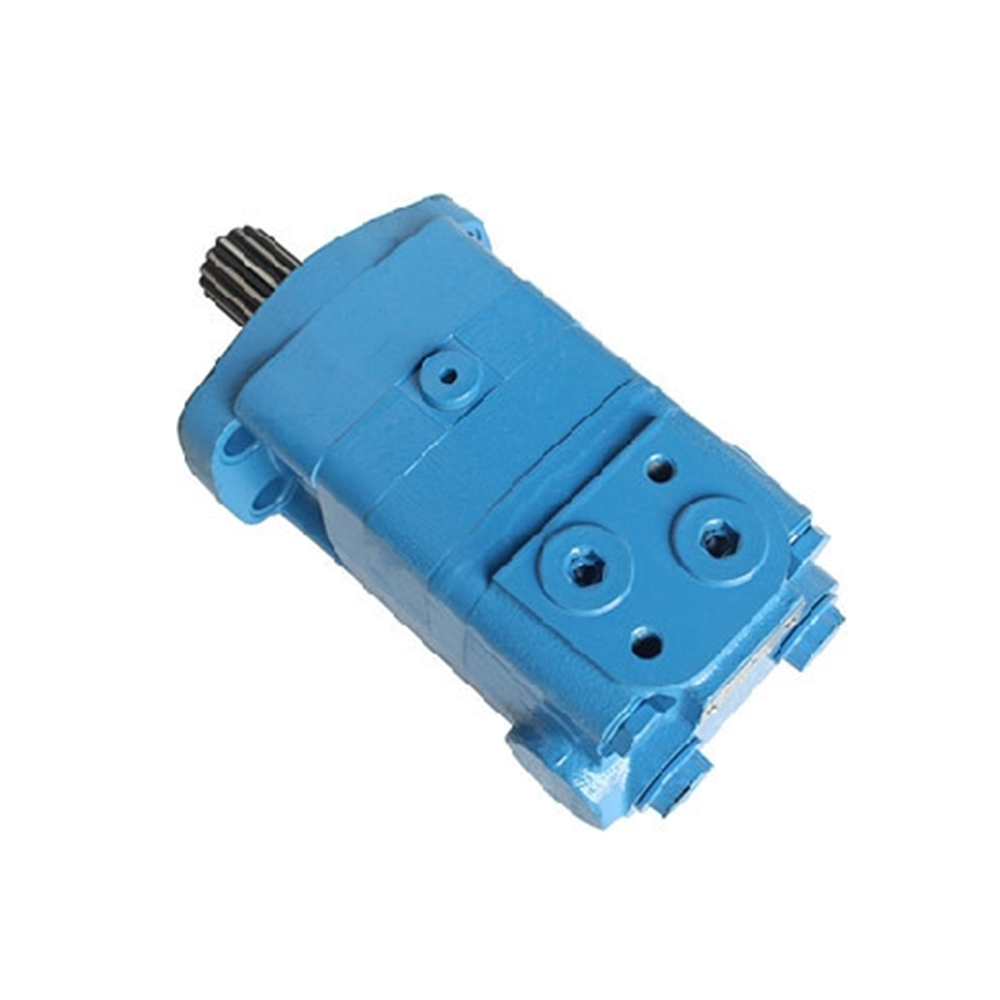

007320-60005 Hydraulic Orbit Motor for Furukawa Eaton 2-160AB6D1-E
Quick review:
Item , Hydraulic Motor
Model No.:2-160AB6D1-E
Flange , 6 hole
Shaft , 14teeth spline shaft
Ports , 7/8-14 O-ring,rear ports
Displacement , 160cc
Speed , 470-560 rpm
Torque ,316-472 Nm
Max pressure drop , 15-21 MPa
Max Flow , 75 - 90 Lpm
BMSY introduction:
This motor is a hydraulic disc motor, because it's widely used on kind of drills of Agricultural,Farm, Construction, Industrial and heavy machineries. it has numerous applications at any rolling, lifting, conveying applications. It's also called orbit hydraulic motor, or orbital motor, or Low Speed High Torque type motor, also disc valve hydraulic motors.
Main Specifications:
| Type | BMSY BMSE 80 | BMSY BMSE 100 | BMSY BMSE 125 | BMSY BMSE 160 | BMSY BMSE 200 | BMSY BMSE 250 | BMSY BMSE 315 | BMSY BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Xeriwell Technology supplys the hydraulic pumps, hydromotors and hydraulic valves you need from China. You can contact us for the hydraulic motor whose product original code starts with 007320-60005. Additionally, if you are looking for a product that is not on the list, you can request a product from our contact page or my Whatsapp line.
