| Quantity: | |
|---|---|
BMR
Xeriwell or Others
| Features: | Same As OMR/Eaton-charlynn S,T SERIES/M+S MR | Products Name: | Low Speed High Torque Hydraulic Motor |
|---|---|---|---|
| Model No.: | BMR | Displacement: | 50cc, 80cc, 100cc, 125cc, 160cc, 200cc, 250cc, 315cc, 395cc |
| Warranty: | 12-18 Months | Application: | Heavy Equipments, Construction Machines, Agricutural Machines And Industrial Machines Etc. |
| Highlight: | lightweight hydraulic motor,omr hydraulic motor | ||
Gerotor Hydraulic Motor BMR / OMR / MR for Sugar Harvesters Hydraulic Componets
BMR series motor adapt the advanced Gerolor gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure , provide reliable and smooth operation, high efficiency and long life.
Characteristic Features: Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.

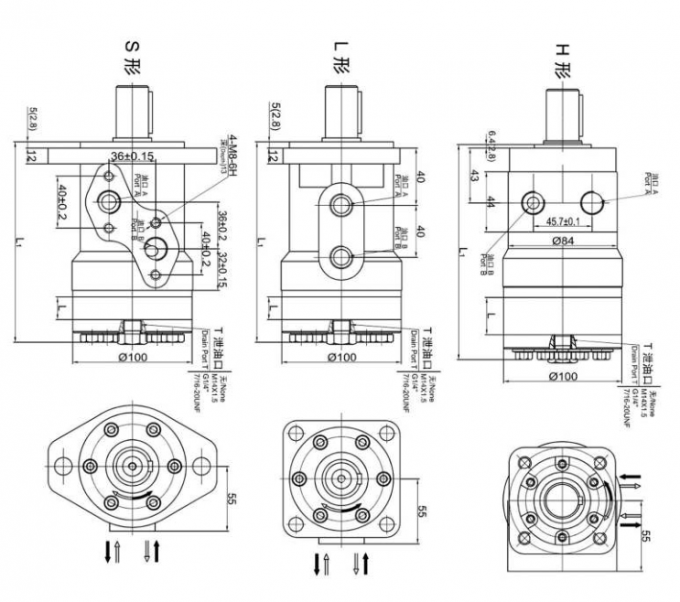

1. Output Shaft Size: Ø25mm, Ø32mm, Ø25.4mm, Ø31.75mm, Parallel Key or Splined Shaft.
2. Flange: 2-Ø13.5 Rhomb-flange, 4-Ø13.5 Rhomb-flange, 4-3/8-16 Square-flange, 4-M10 Square-flange.
3. Pilot: Ø82.5×8mm, Ø44.4×2.8mm.
4. Port and Drain Port:
G1/2" / G1/4"; M22×1.5 / M14×1.5; 7/8-14 O-ring / 7/16-20UNF;
1/2-14 NPTF / 7/16-20UNF; PT(Rc)1/2 / PT(Rc)1/4.
5. Paint: No Paint, Blue, Black, Silver Grey
6. Main Specifications:
| Technical data for BMR Hydraulic Orbital Motors |
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
BMR Hydraulic Orbit Motor Applications:
Agricutural Machines: Various Combine Harvesters, Seeders, Rotary Tillers, Lawn Mowers, Sprayers, Feed Mixers, Ground Boring Machines, Brands like , , MF, , Class etc.
Fisheries use: Netting Machine
Construction machines: Rollers, Cement Mixers, Sweepers.
Industrial machines:Winding Machines, Textile Machines, Printing Presses, Business Washing Machines.
