Hydraulic pumps are fundamental components in numerous industrial and mobile applications. They serve as the lifeblood of hydraulic systems, converting mechanical energy into hydraulic energy to perform work. Despite their widespread use, many people still wonder: How does a hydraulic pump work? This article delves deep into the principles, types, and functions of hydraulic pumps, offering a comprehensive explanation designed to clarify the workings of these vital devices.


What Is a Hydraulic Pump?

At its core, a hydraulic pump is a mechanical device that converts mechanical power into hydraulic energy. This energy is transmitted through hydraulic fluid — usually oil — to create pressure and flow within a hydraulic system. The generated fluid pressure then powers cylinders, motors, and other actuators to perform various tasks, from lifting heavy machinery to precise movement control.

Unlike electric pumps or centrifugal pumps, hydraulic pumps focus specifically on delivering a steady flow of pressurized fluid, enabling systems to handle heavy loads efficiently and reliably. Their efficiency and durability make them essential in sectors such as construction, agriculture, manufacturing, and aerospace.


The Basic Principle Behind Hydraulic Pumps

To understand how a hydraulic pump works, it’s crucial to grasp the basic physical principle: Pascal’s Law. This law states that pressure applied to a confined fluid is transmitted undiminished in all directions throughout the fluid.

In practical terms, when a hydraulic pump moves fluid through a system, the pressure created by this fluid can be directed to perform mechanical work. The pump’s role is to create flow — essentially pushing hydraulic fluid from the reservoir into the system — which the system then converts into force or motion.

Mechanically, this is achieved by a rotating or reciprocating mechanism inside the pump that displaces fluid. As the pump’s internal components move, they create a suction effect that draws fluid from the reservoir and then push it into the hydraulic circuit under pressure.


Common Types of Hydraulic Pumps

Hydraulic pumps come in various types, each designed for different applications, efficiency levels, and pressure requirements. The most common types include:

1. Gear Pumps

Gear pumps use two meshing gears to pump fluid by displacement. The gears trap fluid between their teeth and the pump casing, moving it from the inlet to the outlet. They are simple, durable, and cost-effective but usually generate lower pressure compared to other types.

2. Vane Pumps

Vane pumps have a rotor with several flexible vanes that slide in and out, trapping fluid between the vanes and pump housing. This design allows for smooth, quiet operation and can handle moderate pressures.

3. Piston Pumps

Piston pumps use one or more pistons moving back and forth within cylinders to displace fluid. They can generate very high pressures and are used in demanding applications requiring precise flow control and efficiency.

Each of these pumps operates on the fundamental principle of fluid displacement but differs in design and suitability for specific tasks.

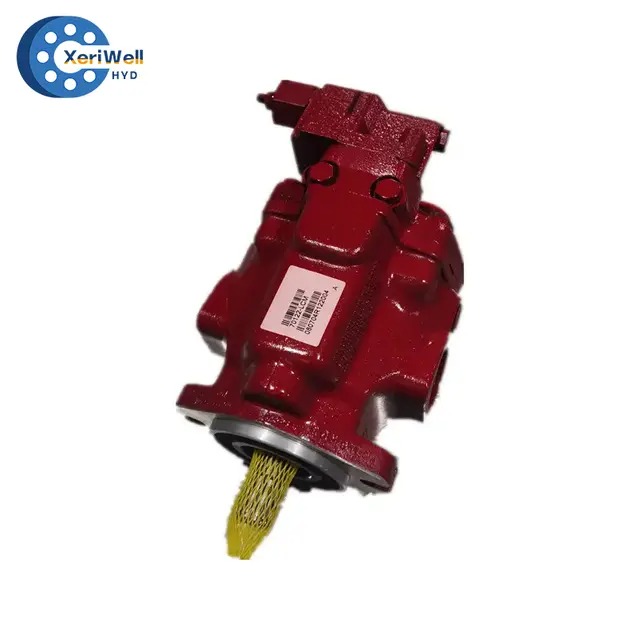

Hydraulic Pump

How Does a Hydraulic Pump Work? — Step-by-Step Process

To better understand the functioning of a hydraulic pump, consider the following step-by-step breakdown:

Step 1: Mechanical Energy Input

The pump is powered by a prime mover, typically an electric motor or an internal combustion engine. This motor supplies the mechanical energy needed to operate the pump.

Step 2: Fluid Intake

As the pump's internal mechanism (gear, vane, or piston) moves, it creates a low-pressure area inside the pump housing. This low pressure causes hydraulic fluid to be drawn from the reservoir through the inlet port.

Step 3: Fluid Displacement

The moving parts of the pump trap and push the hydraulic fluid toward the outlet port. This movement converts mechanical motion into fluid flow.

Step 4: Pressure Generation

The fluid is forced out under pressure through the outlet port. The hydraulic system then directs this pressurized fluid to various actuators, valves, or motors that perform the required mechanical work.

Step 5: Continuous Cycle

This cycle repeats continuously as long as the pump receives mechanical energy, ensuring a steady flow of pressurized fluid within the hydraulic system.


Key Factors Affecting Hydraulic Pump Performance

Several factors influence how effectively a hydraulic pump works:

Displacement Volume

This is the volume of fluid moved per rotation or cycle of the pump. Higher displacement means more fluid flow, affecting the system's speed and force.

Operating Pressure

Hydraulic pumps must be capable of withstanding the maximum pressure required by the system without damage.

Efficiency

Hydraulic pumps have volumetric and mechanical efficiencies. Volumetric efficiency refers to how effectively the pump moves fluid, while mechanical efficiency relates to minimizing friction and wear within the pump’s moving parts.

Fluid Type and Viscosity

The hydraulic fluid’s characteristics, including viscosity, cleanliness, and temperature, impact pump longevity and performance.

Hydraulic Pump

Table: Comparison of Common Hydraulic Pump Types

Pump Type Pressure Range Efficiency Noise Level Typical Applications
Gear Pump Up to 3000 psi Moderate Moderate Mobile equipment, agriculture
Vane Pump Up to 3000 psi High Low Industrial machinery, HVAC
Piston Pump Up to 6000+ psi Very High Low Aerospace, heavy machinery

Frequently Asked Questions (FAQ)

1. What is the difference between a hydraulic pump and a hydraulic motor?

A hydraulic pump converts mechanical energy into hydraulic fluid flow, creating pressure. In contrast, a hydraulic motor converts hydraulic fluid pressure back into mechanical energy to perform work.

2. Can a hydraulic pump work without hydraulic fluid?

No. Hydraulic pumps require fluid to transfer energy. Operating a pump without fluid (dry running) can cause severe damage.

3. How often should hydraulic pumps be maintained?

Maintenance frequency depends on operating conditions but generally includes fluid checks every 500 hours and full service every 2000 hours.

4. Why is hydraulic pump efficiency important?

Higher efficiency means less energy loss, lower heat generation, and longer equipment life, which reduces operational costs.


Conclusion

Understanding how a hydraulic pump works is fundamental for anyone involved in industries relying on hydraulic technology. By converting mechanical energy into pressurized fluid flow, hydraulic pumps enable precise, powerful, and efficient mechanical operations across various fields. Recognizing different pump types, their working principles, and key performance factors equips users with the knowledge to select, operate, and maintain these critical components effectively.
